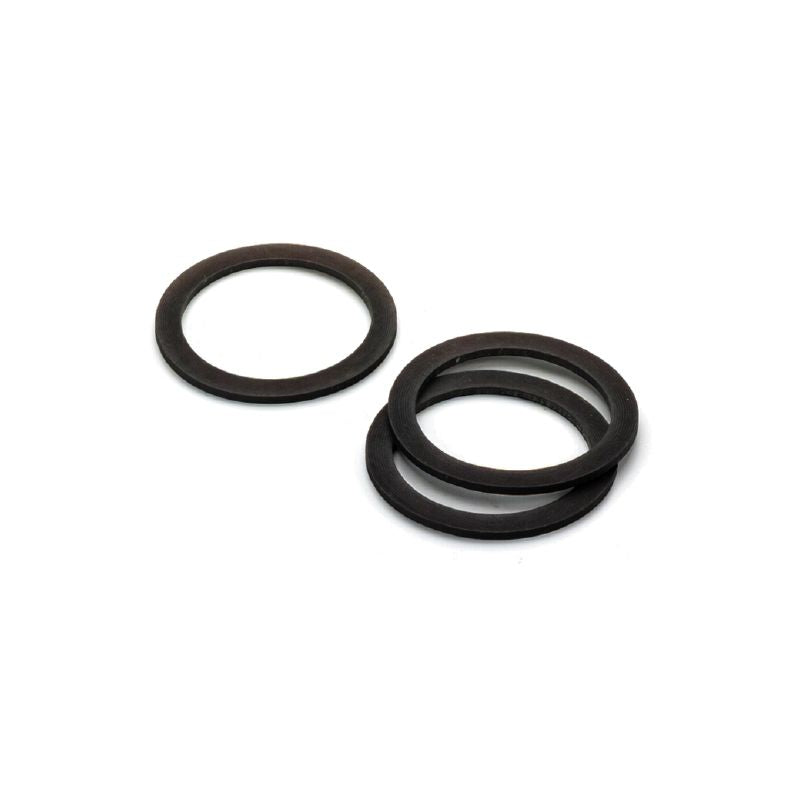

1736240000 - Neoprene Gasket for M20 Cable Gland Sealing Applications (Pack of 50)

1736240000 - Neoprene Gasket for M20 Cable Gland Sealing Applications (Pack of 50)

SKU: 1736240000   Download PDF

Select a Variant:
  • 1736240000 - Neoprene Gasket for M20 Cable Gland Sealing Applications (Pack of 50)
Qty:
Now $20.07   Web pricing policy
BEFORE   $0.00 Now $20.07 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the GWDR M20-NP, a versatile flat neoprene gasket crafted specifically for sealing applications This gasket is ideal for pairing with M20 cable glands and includes a specialized sealing ring for enhanced protection It complies with environmental standards such as RoHS and contains halogen-free materials, making it a reliable choice for various projects.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Basic material is neoprene.

    •Sealing accomplished using neoprene.

    •Has a diameter of 24 mm for the sealing ring.

Specifications:

 Operating temperature range, max. 100 °C
 Operating temperature range, min. -40 °C
 Height 1.2 mm

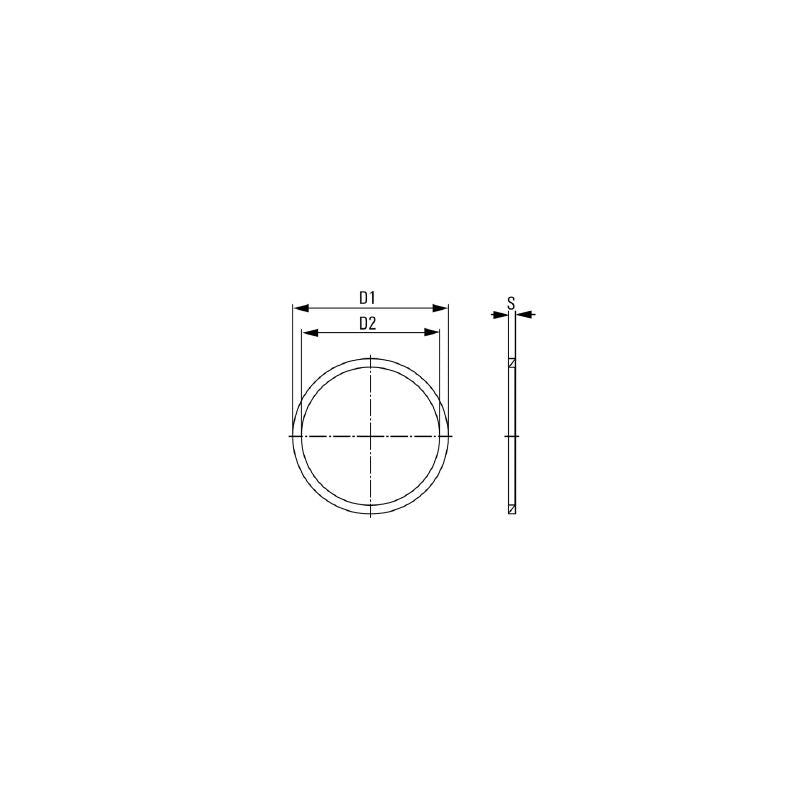

 Inside diameter D2 20 mm
 External thread M 20
 Internal thread M 20
 Number of wires 1
 Pitch of thread 1.5 mm
 O.D. 24 mm
 Halogen Yes
 Silicone No
 Thickness 1.2 mm
 ETIM 6.0 EC001181
 ETIM 9.0 EC001181
 ECLASS 9.0 27-43-03-19
 ECLASS 10.0 27-43-03-19
