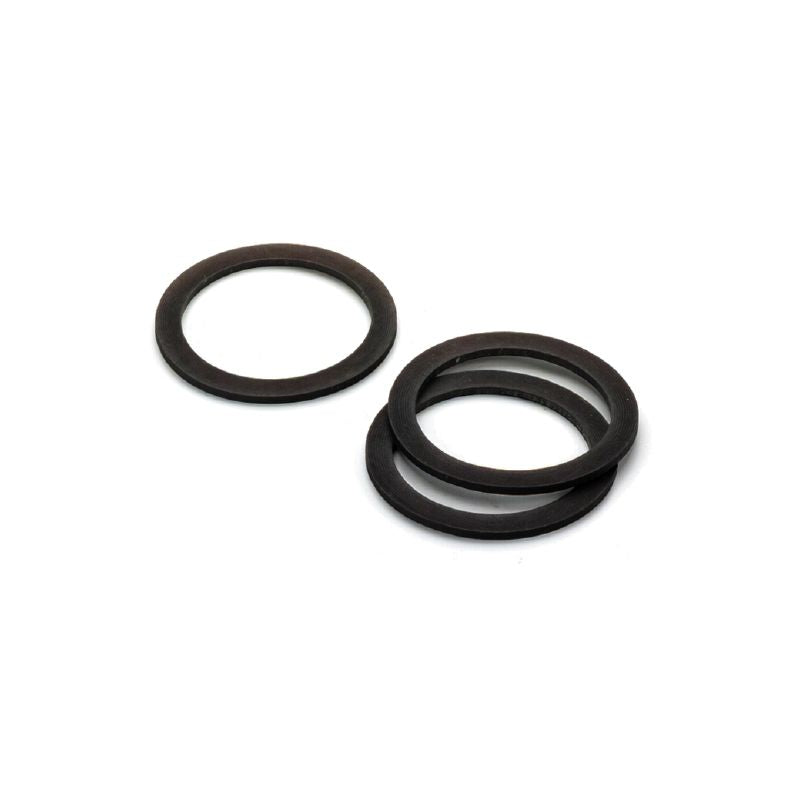

1719610000 - Neoprene Gasket 60mm for PG 36 Threads, RoHS Compliant (Pack of 20)

SKU: SKU: 1719610000 Download PDF

Select a Variant:

1719610000 - Neoprene Gasket 60mm for PG 36 Threads, RoHS Compliant (Pack of 20)

SET THE QTY:

Now $228.20 Web pricing policy

~~BEFORE $0.00~~ Now $228.20 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the GWDR PG36-NP flat gasket, expertly crafted from neoprene for effective sealing with PG 36 threads This reliable component adheres to RoHS standards, ensuring that it is free from any SVHC substances exceeding 01 wt% With a robust operating temperature range of -40 °C to 100 °C, this gasket is versatile enough for various applications Its sealing diameter measures 60 mm, and it is specifically designed to accommodate PG 36 threading, making it an ideal choice for your sealing needs.

Features and Benefits:

•RoHS compliant and environmentally friendly.

•Accommodates operating temperatures from -40 °C to 100 °C.

•Made from durable neoprene material.

•Designed for secure sealing in PG 36 cable applications.

Specifications:

Height	1.5 mm
Height (inches)	0.059 inch
Net weight	3 g
Basic material	Neoprene
Cable gland	PG 36
Diameter of sealing ring	60 mm
External thread	PG 36

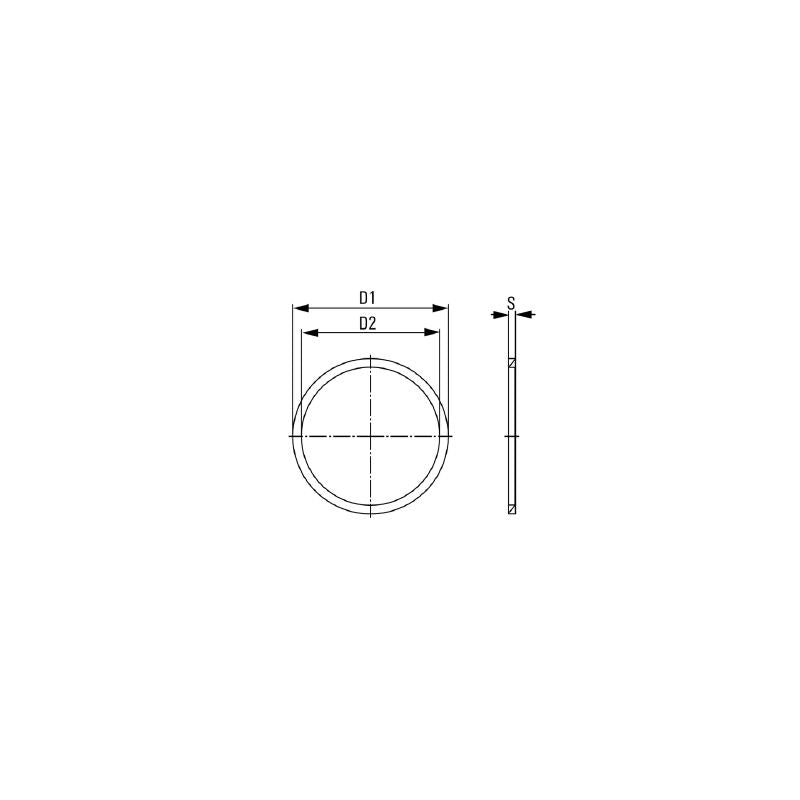

Inside diameter D2	47 mm
Internal thread	PG 36
Number of wires	1
O.D.	60 mm
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Thickness	1.5 mm
Halogen	Yes
Silicone	No
ETIM 6.0	EC001181
ETIM 7.0	EC001181
ETIM 8.0	EC001181
ETIM 9.0	EC001181
ETIM 10.0	EC001181
ECLASS 9.0	27-43-03-19
ECLASS 9.1	27-14-44-90
ECLASS 10.0	27-43-03-19
ECLASS 11.0	27-43-03-19
ECLASS 12.0	27-43-03-19
ECLASS 13.0	27-43-03-19
ECLASS 14.0	27-43-03-19
ECLASS 15.0	27-43-03-19
