1719540000 - Neoprene Gasket for PG 7 Cable Glands, 11.6mm ID (Pack of 100)

1719540000 - Neoprene Gasket for PG 7 Cable Glands, 11.6mm ID (Pack of 100)

SKU: 1719540000   Download PDF

Select a Variant:
  • 1719540000 - Neoprene Gasket for PG 7 Cable Glands, 11.6mm ID (Pack of 100)
Qty:
Now $139.27   Web pricing policy
BEFORE   $0.00 Now $139.27 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

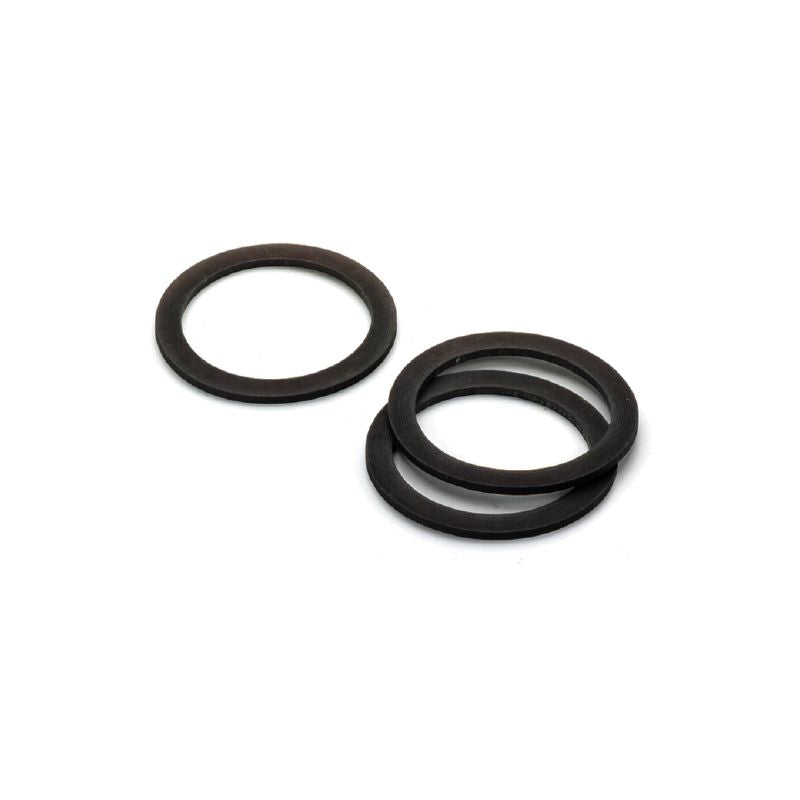

Introducing the GWDR PG7-NP flat gasket, expertly crafted from neoprene for outstanding sealing performance in various applications Tailored to fit PG 7 cable glands, this sealing ring guarantees an effective seal to protect against leaks With full compliance to RoHS regulations, it is produced without any hazardous substances, ensuring safety and environmental responsibility This gasket functions optimally in temperatures ranging from -40 °C to 100 °C, making it versatile for different environments.

Featuring an inner diameter of 116 mm and an outer diameter of 17 mm, it is specifically designed to accommodate a single wire, with a thickness of 12 mm, providing reliable sealing in your projects.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Made of neoprene for effective sealing.

    •Operates over a wide temperature range.

    •Designed to fit PG 7 cable glands.

Specifications:

 Basic material Neoprene
 Cable gland PG 7

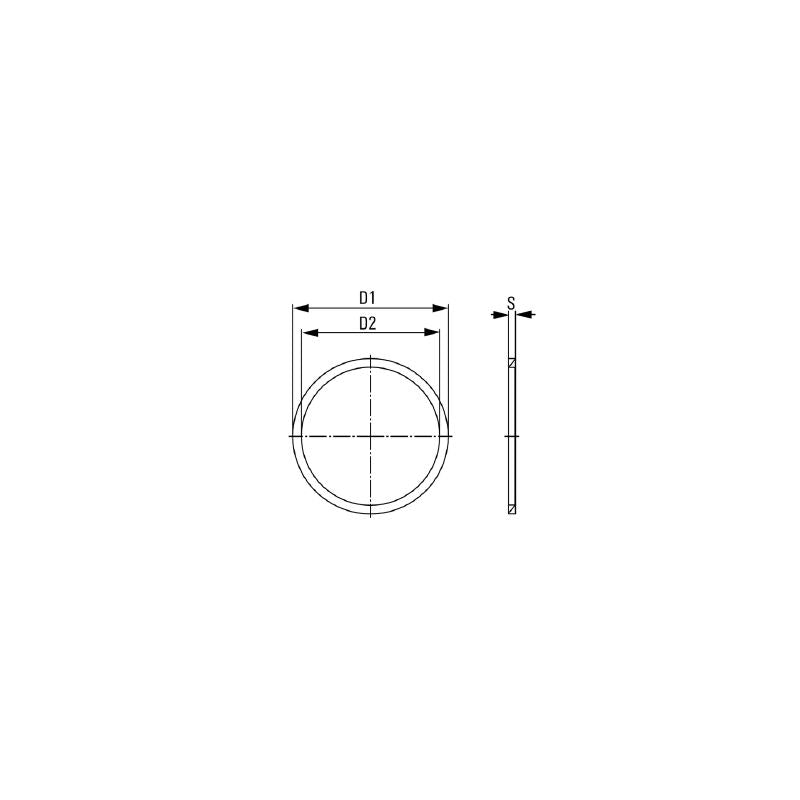

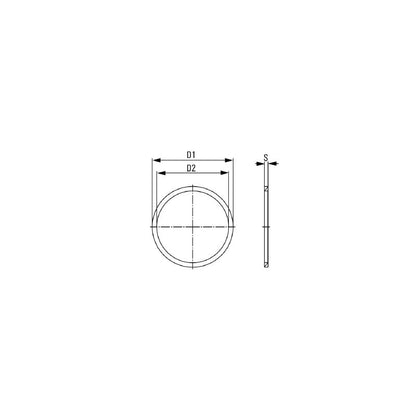

 Diameter of sealing ring 17 mm
 External thread PG 7
 Inside diameter D2 11.6 mm
 Internal thread PG 7
 Number of wires 1
 O.D. 17 mm
 Temperature range (max) 100 °C
 Temperature range (min) -40 °C
 Thickness 1.2 mm
 ETIM classification 6.0 EC001181
 ETIM classification 7.0 EC001181
 ETIM classification 8.0 EC001181
 ETIM classification 9.0 EC001181
 ETIM classification 10.0 EC001181
 ECLASS classification 9.0 27-43-03-19
 ECLASS classification 9.1 27-14-44-90
 ECLASS classification 10.0 27-43-03-19
 ECLASS classification 11.0 27-43-03-19
 ECLASS classification 12.0 27-43-03-19
 ECLASS classification 13.0 27-43-03-19
 ECLASS classification 14.0 27-43-03-19
 ECLASS classification 15.0 27-43-03-19
