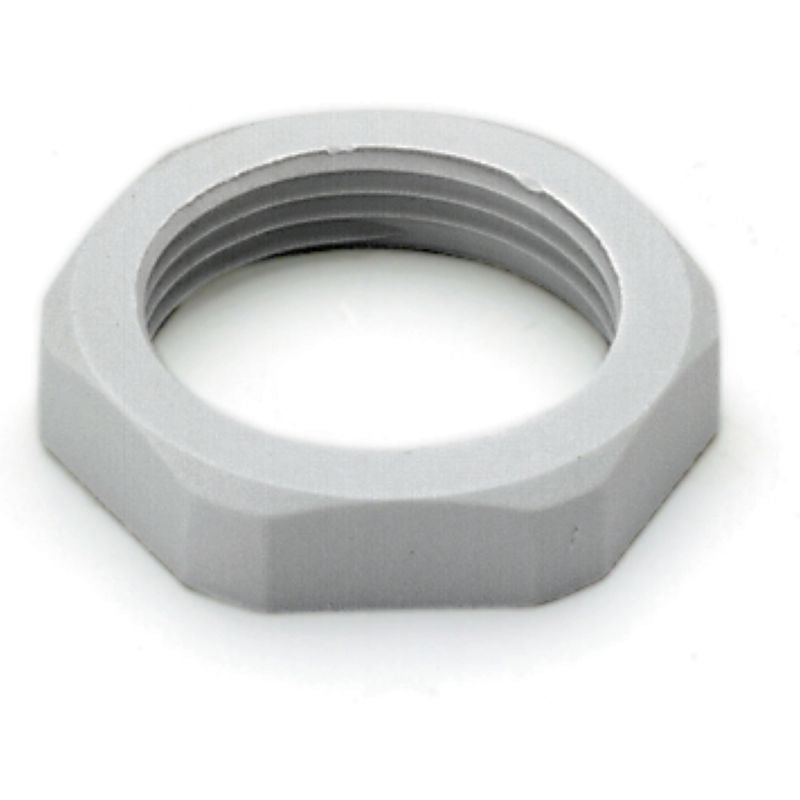

1698220000 - PG 21 Locknut, 41.58mm PA6, -40°C to 100°C (Pack of 100)

1698220000 - PG 21 Locknut, 41.58mm PA6, -40°C to 100°C (Pack of 100)

SKU: 1698220000   Download PDF

Select a Variant:
  • 1698220000 - PG 21 Locknut, 41.58mm PA6, -40°C to 100°C (Pack of 100)
Qty:
Now $41.25   Web pricing policy
BEFORE   $0.00 Now $41.25 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the SKMU PG21-K GR locknut, expertly crafted from robust Polyamide 6 (PA6 - GF30) for exceptional performance in demanding environments Engineered specifically for PG 21 thread applications, this locknut measures 7 mm in height and boasts an outer diameter of 4158 mm With compliance to RoHS regulations, it assures safety without any SVHC present above the specified weight This product operates effectively within a temperature range of -40 °C to 100 °C, making it a reliable choice for a variety of applications.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Basic material is Polyamide 6 (PA6 - GF30).

    •No silicone present.

    •UL 94 flammability rating is HB.

    •Environmental compliance.

    •Thread pitch is 1.59 mm.

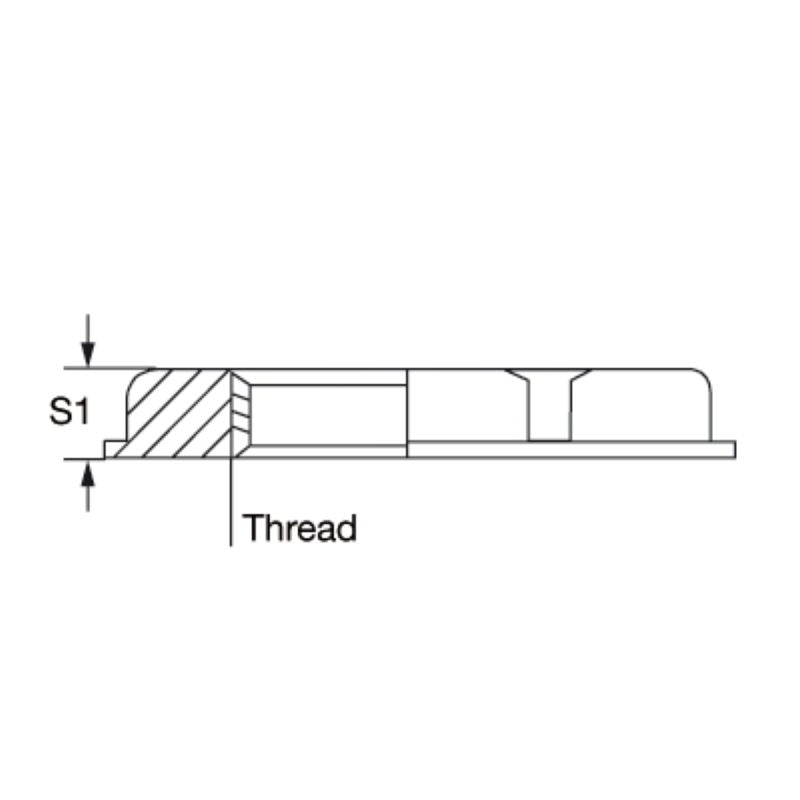

Specifications:

 Operating temperature range, max. 100 °C
 Operating temperature range, min. -40 °C
 Height 7 mm
 O.D. 41.58 mm
 Length of thread 7 mm
 AF size 36 mm
 External thread PG 21
 Internal thread PG 21
 Dimensions and weights Height 7 mm, Weight 4.1 g
 Approvals ROHS Compliant
