1569130000 - IP67/IP68 Nickel-Plated Brass Cable Gland for 22-32mm Diameter (Pack of 5)

1569130000 - IP67/IP68 Nickel-Plated Brass Cable Gland for 22-32mm Diameter (Pack of 5)

SKU: SKU: 1569130000 Download PDF

Variant:
  • 1569130000 - IP67/IP68 Nickel-Plated Brass Cable Gland for 22-32mm Diameter (Pack of 5)
Regular price Now $161.33
Regular price BEFORE   $0.00 Sale price Now $161.33
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

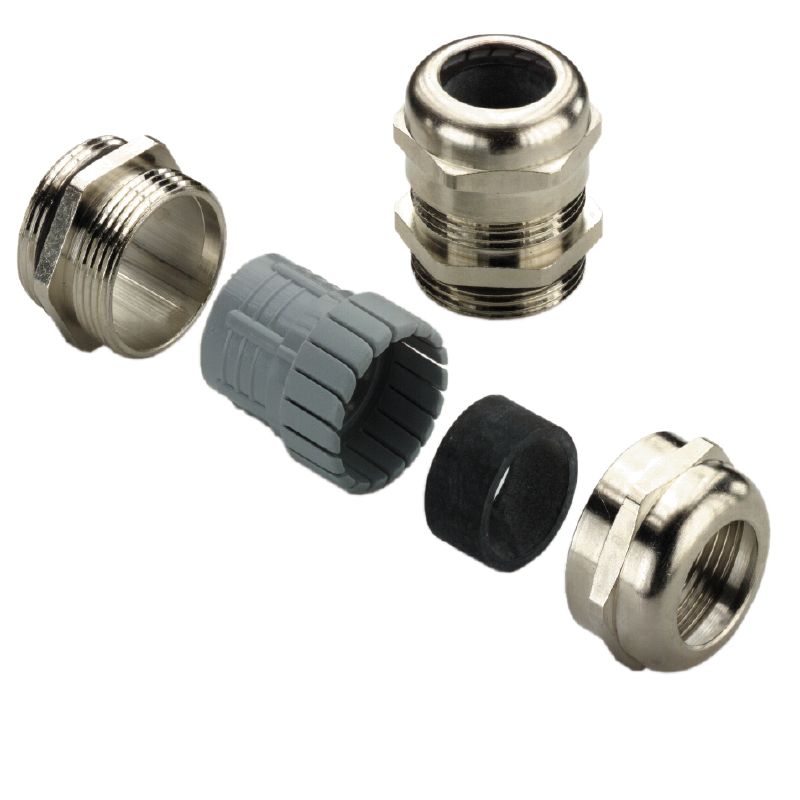

Introducing the VG MS 36 straight cable gland, perfect for a wide array of uses It accommodates cable outer diameters from 22 mm to 32 mm and is built to last with an impressive IP67 and IP68 waterproof rating This means it can endure pressures up to 5 bar for 30 minutes without compromising performance Crafted from nickel-plated brass, this cable gland offers exceptional durability and resistance to corrosion, making it a reliable choice for your needs.

Features and Benefits:

    •Suitable for use with cables of varying diameters from 22 mm to 32 mm.

    •IP67 and IP68 rated for high water and pressure resistance.

    •Made of durable nickel-plated brass.

    •Straight design for easy installation.

Specifications:

 Height 48 mm
 Length 57 mm
 Operating temperature range -40 to 100 °C
 Outer cable diameter, min. 22 mm
 Outer cable diameter, max. 32 mm
 Protection degree IP67, IP68 - 5 bar (30 min.)
 Clamp insert Polyamide
 O-Ring NBR
 Tightening torque 20 Nm
 Torque for cap nut, max. 43 Nm
 Torque for cap nut, min. 41 Nm
 Pitch of thread 1.59 mm
