1569090000 - Brass Cable Gland for 6-12mm Cables, IP68 Rated (Pack of 50)

SKU: SKU: 1569090000 Download PDF

Select a Variant:

1569090000 - Brass Cable Gland for 6-12mm Cables, IP68 Rated (Pack of 50)

SET THE QTY:

Now $313.03 Web pricing policy

~~BEFORE $0.00~~ Now $313.03 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

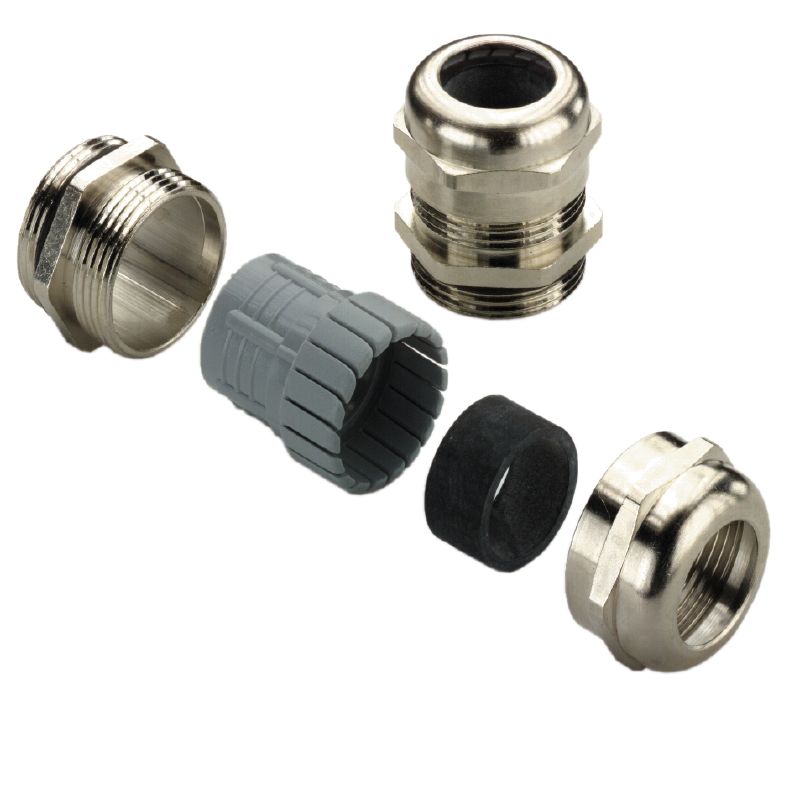

Introducing the VG 135-MS68 straight brass cable gland, expertly crafted for cables with outer diameters from 6 to 12 mm This versatile gland guarantees robust protection across multiple classes including IP54, IP66, IP67, IP68 (for up to 30 minutes at 5 bar), and IP69K Designed to perform in extreme conditions, this product operates effectively within a temperature range of -40 °C to 100 °C Constructed from nickel-plated brass, it not only offers exceptional durability but also adheres to RoHS standards, ensuring compliance with environmental regulations.

Features and Benefits:

•Cable gland made from brass and nickel-plated.

•Suitable for use in harsh environmental conditions.

•Multiple protection degrees including IP54, IP66, IP67, IP68, and IP69K.

•Compatible with standard cable diameters from 6 mm to 12 mm.

•Halogen-free design.

•Tightening torque specifications for secure installation.

Specifications:

Height	25.5 mm
Length	31 mm
Operating temperature range	-40 °C to 100 °C
Outer cable diameter, max.	12 mm
Outer cable diameter, min.	6 mm
Pitch of thread	1.41 mm
Tightening torque	5.5 Nm
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K
Basic material	Brass, nickel-plated
Clamp insert	Polyamide
O-Ring	NBR
