1569080000 - Brass PG 11 Cable Gland, 5-10mm, IP68 Protection (Pack of 50)

SKU: SKU: 1569080000 Download PDF

Select a Variant:

1569080000 - Brass PG 11 Cable Gland, 5-10mm, IP68 Protection (Pack of 50)

SET THE QTY:

Now $260.83 Web pricing policy

~~BEFORE $0.00~~ Now $260.83 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

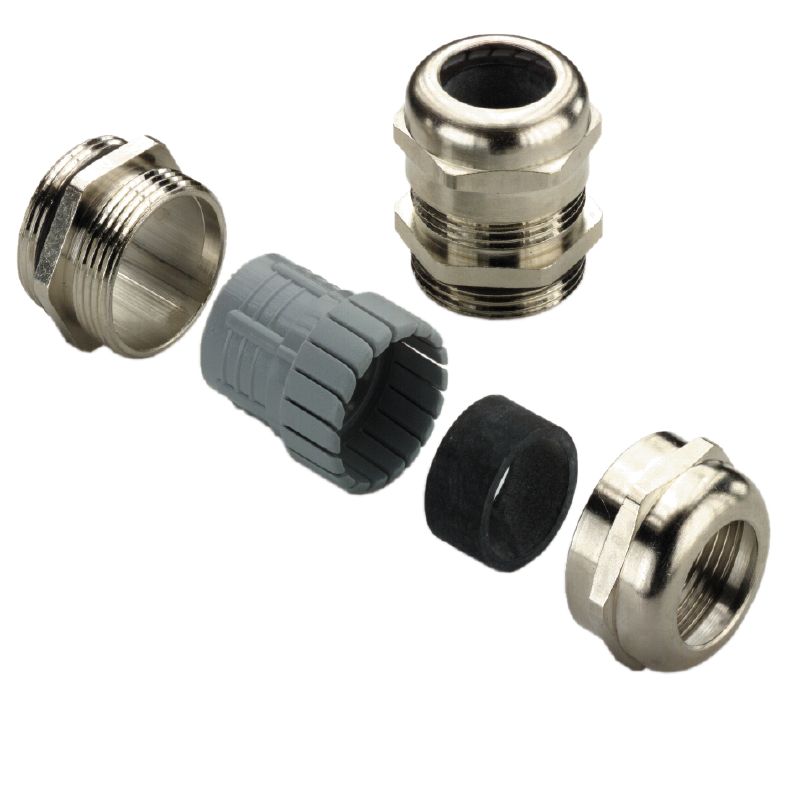

Introducing the VG 11-MS68, a durable brass cable gland featuring a nickel plating, tailored for straight cable applications This versatile component accommodates cables with outer diameters ranging from 5 mm to 10 mm It boasts impressive protection ratings including IP54, IP66, IP67, IP68 (up to 5 bar for 30 minutes), and IP69K, making it ideal for various environmental challenges Additionally, the product adheres to RoHS standards and has obtained all necessary certifications for your peace of mind.

Features and Benefits:

•Constructed from brass with nickel plating.

•Operating temperature range from -40 °C to 100 °C.

•IP54, IP66, IP67, IP68, and IP69K rated for high protection.

•Halogen-free material.

•Sealing ring made of NBR.

Specifications:

Order No.:	1569080000
GTIN (EAN):	4008190088231
Dimensions Height:	26 mm
Dimensions Length:	32 mm
Net Weight:	25.64 g
Outer Cable Diameter (Min):	5 mm
Outer Cable Diameter (Max):	10 mm
Pitch of Thread:	1.41 mm
Length of Thread:	6 mm
Protection Class (UL):	Type 4X
Tightening Torque:	5 Nm
Operating Temperature:	-40 °C to 100 °C
RoHS Status:	Compliant with exemption
REACH SVHC:	Lead 7439-92-1
Clamp Insert:	Polyamide
Seal Insert:	CR
Protection Degree:	IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K
Certification Numbers (cULus):	E-199260
Certification Numbers (GERMLLOYD):	E-14047
