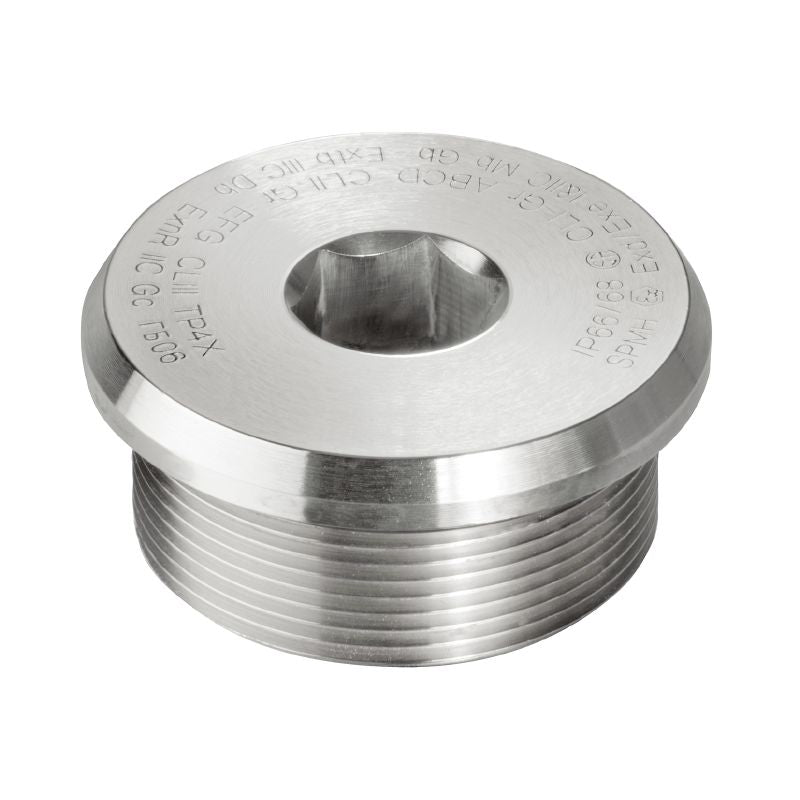

1477910000 - 40mm Stainless Steel Blanking Plug, RoHS Compliant (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the KSPMH M40 SSC, an expertly crafted blanking plug for M40 connections Constructed from high-grade stainless steel 14404 (316L), this plug boasts a diameter of 40 mm and a wall thickness that varies between 05 mm and 15 mm It meets RoHS standards and is free from SVHC substances exceeding 01 wt% The dimensions reveal a height and length of 215 mm, making it compact yet effective This plug is engineered to withstand temperatures ranging from -60 °C to 200 °C, ensuring reliable performance in challenging environments.

Plus, it is compatible with ATEX and IECEx certifications, offering various certification options for diverse applications.

Features and Benefits:

•Made from halogen-free stainless steel 1.4404 (316L).

•Impact resistance rated at 7 J for ATEX version.

•Type 4X protection class.

•IP66 rating with IP68 support for water depths of 100 m.

•Silicone O-ring included.

Specifications:
