1461090000 - VG Exi 4J M40 Cable Gland, IP54-IP68, Polyamide 6 (Pack of 10)

SKU: SKU: 1461090000 Download PDF

Select a Variant:

1461090000 - VG Exi 4J M40 Cable Gland, IP54-IP68, Polyamide 6 (Pack of 10)

SET THE QTY:

Now $104.96 Web pricing policy

~~BEFORE $0.00~~ Now $104.96 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

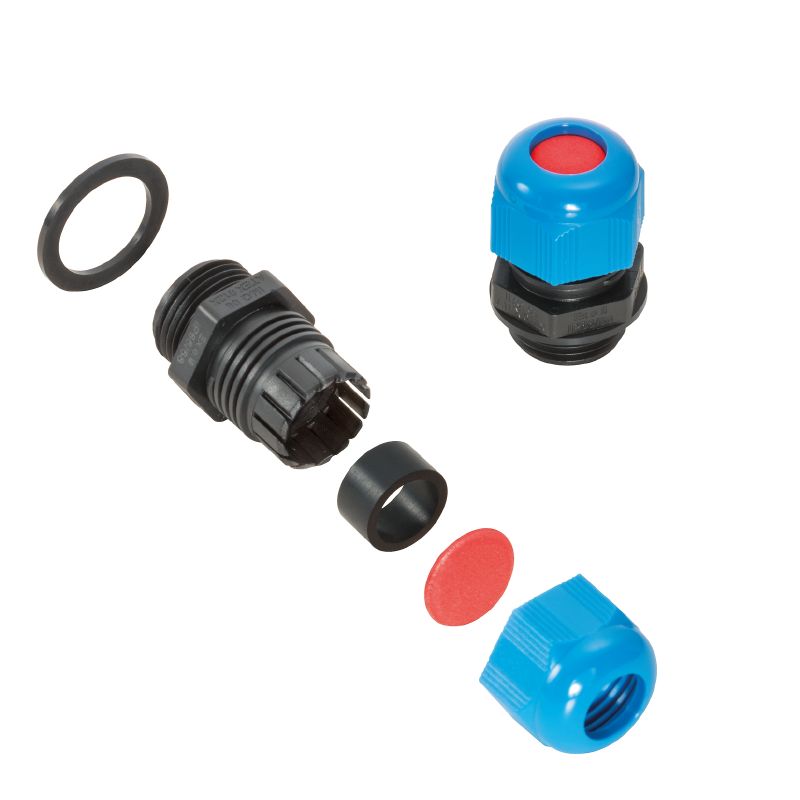

Introducing the VG Exi 4J, a versatile straight cable gland suitable for M 40 applications, accommodating outer diameters from 22 mm to 32 mm Engineered to provide superior protection, this cable gland meets various ratings including IP54, IP66, IP67, and IP68, capable of withstanding a pressure of 5 bar for durations of up to 30 minutes Crafted from durable Polyamide 6, it operates efficiently within a temperature range of -40 °C to 80 °C, making it an ideal choice for diverse environments.

Features and Benefits:

•Compliant with RoHS regulations without exemptions.

•Contains no SVHC above 0.1 wt%.

•Impact resistance rating of 4 J for the ATEX version.

•Made from halogen-free material.

Specifications:

Height	50 mm
Operating temperature	-40 °C...80 °C
Outer cable diameter (min)	22 mm
Outer cable diameter (max)	32 mm
Length of thread	18 mm
Pitch of thread	1.5 mm
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
Basic material	Polyamide 6
External thread	M 40
Explosion protection type	Intrinsically safe Ex i
Certification numbers	{'ATEX': 'IMQ 13 ATEX 010 X', 'IECEx': 'IECEx IMQ 13.0003X'}
