1461080000 - M32 Exi Plastic Cable Gland, 18-25mm, IP54/IP68 (Pack of 10)

1461080000 - M32 Exi Plastic Cable Gland, 18-25mm, IP54/IP68 (Pack of 10)

SKU: 1461080000   Download PDF

Select a Variant:
  • 1461080000 - M32 Exi Plastic Cable Gland, 18-25mm, IP54/IP68 (Pack of 10)
Qty:
Now $49.34   Web pricing policy
BEFORE   $0.00 Now $49.34 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

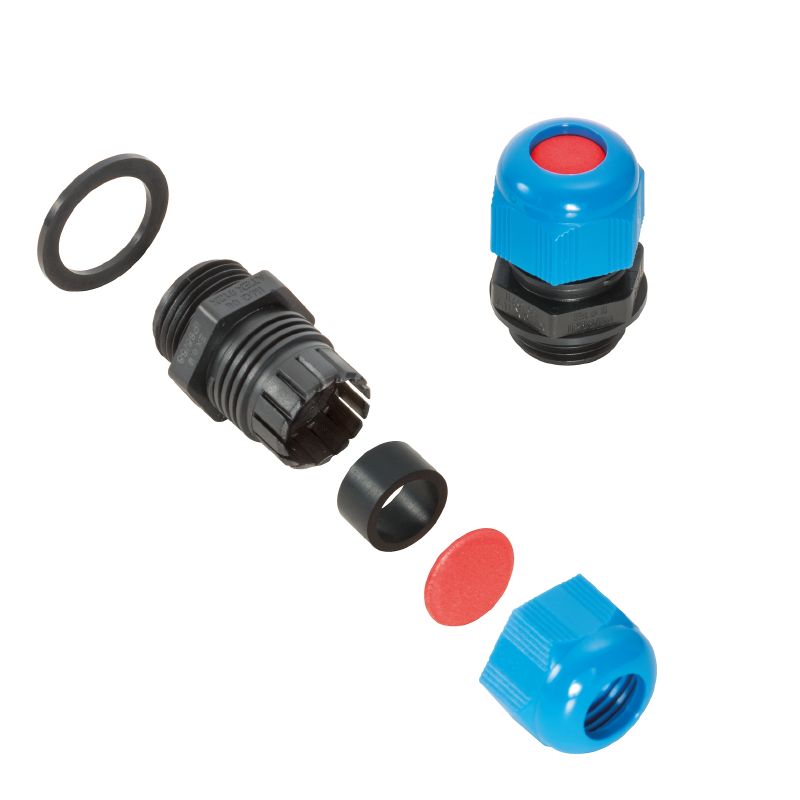

Introducing the VG Exi 4J, an exceptional Ex plastic cable gland tailored for direct M 32 connections This cable gland supports a cable diameter ranging from 18 mm to 25 mm, ensuring robust protection with IP ratings of IP54, IP66, IP67, and IP68 It can endure pressure levels up to 5 bar for a duration of 30 minutes Crafted from Polyamide 6, the VG Exi 4J complies with various safety and quality standards including CE, EAC, ATEX, IECEx, and INMETRO, making it a reliable choice for demanding applications.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Suitable for intrinsically safe applications.

    •Impact resistance rated at 4 J.

    •Available in metric sizing.

    •Halogen-free design.

Specifications:

 Operating temperature range, max. 80 °C
 Operating temperature range, min. -40 °C
 Outer cable diameter, max. 25 mm
 Outer cable diameter, min. 18 mm
 Length of thread 15 mm
 Impact resistance 4 J
 Protection degree IP54, IP66, IP67, IP68 - 5 bar (30 min.)
 Basic material Polyamide 6
 Thread pitch 1.5 mm
 Approval conditions ATEX, IECEX
 Certificate no. cable gland (ATEX) IMQ 13 ATEX 010 X
 Certificate no. cable gland (IECEx) IECEx IMQ 13.0003X
