1262950000 - Brass M32 to 1 1/2" NPT Straight Adapter, RoHS Certified (Pack of 12)

1262950000 - Brass M32 to 1 1/2" NPT Straight Adapter, RoHS Certified (Pack of 12)

SKU: SKU: 1262950000 Download PDF

Variant:
  • 1262950000 - Brass M32 to 1 1/2" NPT Straight Adapter, RoHS Certified (Pack of 12)
Regular price Now $747.66
Regular price BEFORE   $0.00 Sale price Now $747.66
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

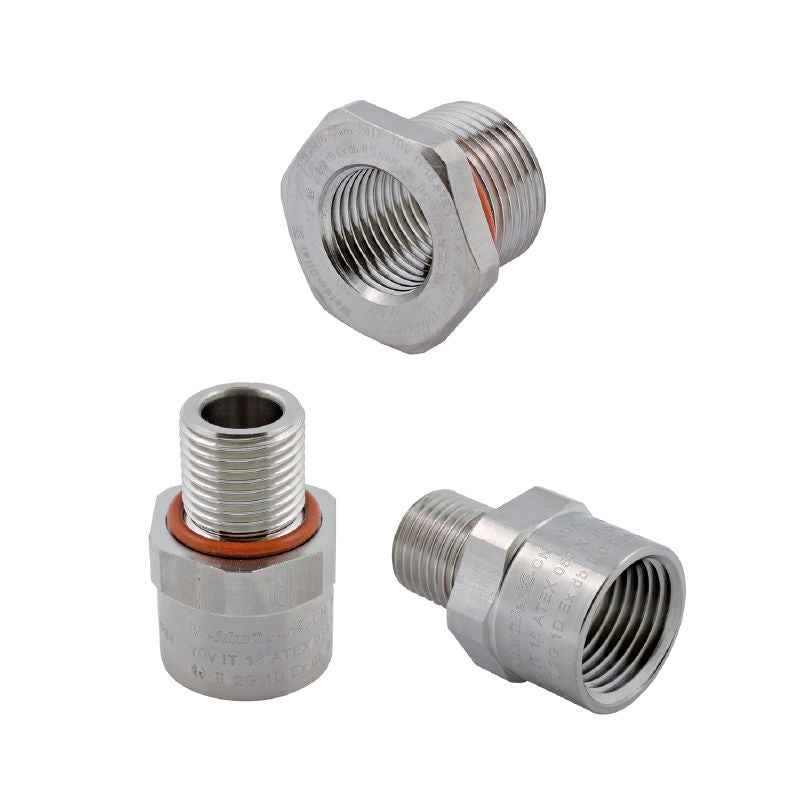

This straight adapter, model ADAP M32-NPT1-1/2-W, is crafted from brass with a nickel plating for enhanced durability It features external threads of M 32 and internal threads measuring 1 1/2" NPT Complying with RoHS standards, this adapter is also certified with multiple safety recognition numbers, ensuring reliable performance in various applications.

Features and Benefits:

    •Halogen-free.

    •Explosion protection type: Ex d - flameproof and Ex e - increased safety.

    •Compliant with RoHS exemptions.

    •Silicone O-ring.

Specifications:

 Width 61 mm
 Length 39 mm
 Operating temperature range, max. 120 °C
 Operating temperature range, min. -50 °C
 Outer cable diameter, max. 24 mm
 Outer cable diameter, min. 1 mm
 Protection degree IP66
 Tightening torque 65 Nm
 Basic material Brass, nickel-plated
 Cable gland M 32
 Length of thread 16 mm
 Pitch of thread 1.5 mm
 Certificate No. (IECEX) IECEXTPS16.0004X
 Certificate no. cable gland (ATEX) TÜV IT 16ATEX 059X
