1262860000 - Nickel-Plated Brass Straight Adapter for Cable, 28.5mm Width (Pack of 16)

1262860000 - Nickel-Plated Brass Straight Adapter for Cable, 28.5mm Width (Pack of 16)

SKU: 1262860000 Download PDF

Variant:
  • 1262860000 - Nickel-Plated Brass Straight Adapter for Cable, 28.5mm Width (Pack of 16)
Now $327.50
BEFORE   $0.00 Now $327.50
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

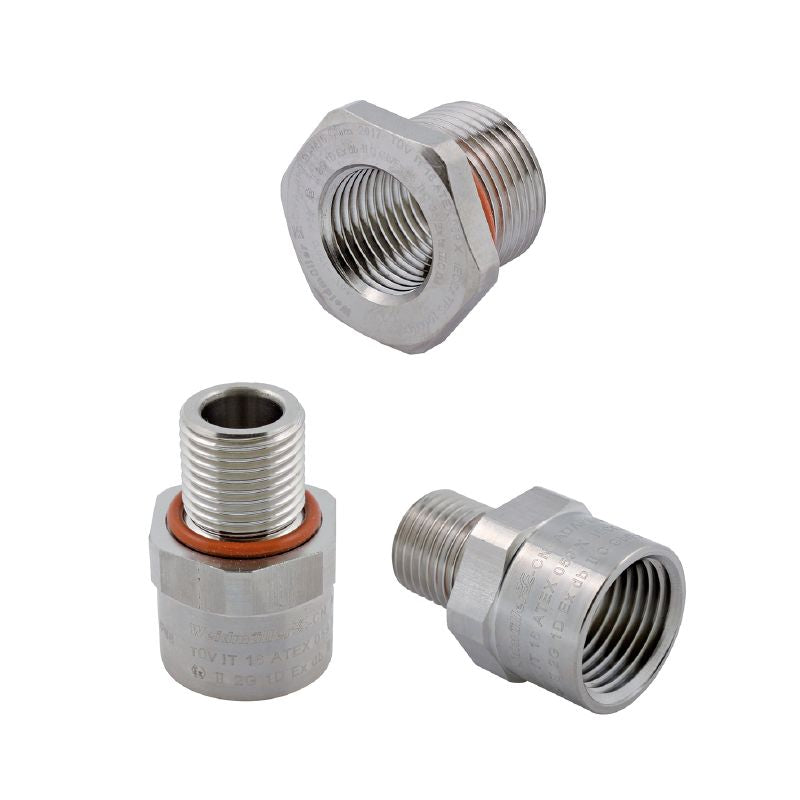

Introducing the ADAP M20-NPT1/2-W straight adapter, expertly crafted from sturdy brass and finished with a nickel plating for enhanced durability This adapter meets ROHS compliance and operates effectively in temperatures ranging from -50 °C to 120 °C With a width of 285 mm and a length of 38 mm, it weighs in at a manageable 70 grams The design includes an internal 1/2" NPT thread paired with an external M20 thread, making it a reliable choice for your cable needs.

Features and Benefits:

    •Brass construction, nickel-plated.

    •ROHS compliant with exemption.

    •Halogen-free.

    •Explosion protection types: Ex d - flameproof and Ex e - increased safety.

    •Silicone O-ring included.

Specifications:

 Operating temperature range (max) 120 °C
 Operating temperature range (min) -50 °C
 Width 28.5 mm
 Length 38 mm
 Protection degree IP66
 Outer cable diameter (max) 14 mm
 Outer cable diameter (min) 1 mm
 Pitch of thread 1.5 mm
 Tightening torque 40 Nm
 Environmental compliance Compliant with exemption
 Certificate No. (IECEX) IECEXTPS16.0004X
 Certificate no. cable gland (ATEX) TÜV IT 16ATEX 059X
 Basic material Brass, nickel-plated
 Cable gland M 20
