1188910000 - E1WS/50/M50-WM Stainless Steel Cable Gland M 50 x 1.5 (Pack of 4)

1188910000 - E1WS/50/M50-WM Stainless Steel Cable Gland M 50 x 1.5 (Pack of 4)

SKU: 1188910000   Download PDF

Select a Variant:
  • 1188910000 - E1WS/50/M50-WM Stainless Steel Cable Gland M 50 x 1.5 (Pack of 4)
Qty:
Now $3,412.33   Web pricing policy
BEFORE   $0.00 Now $3,412.33 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

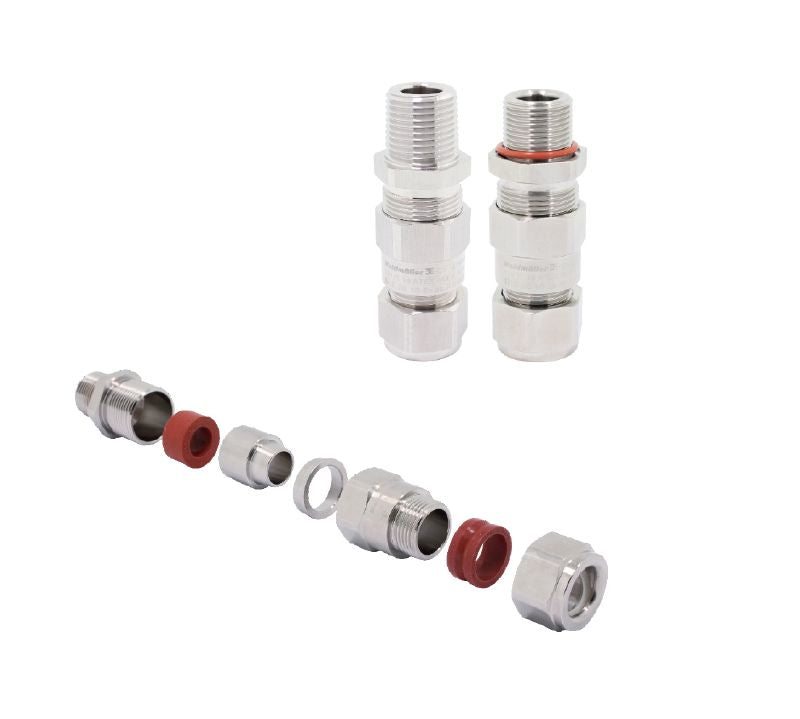

Introducing the E1WS/50/M50-WM, a robust cable gland expertly crafted for M 50 x 15 applications This gland accommodates single-wire armouring with a thickness of 2 mm to 25 mm Its design allows for an outer diameter range of 4555 mm to 53 mm and an inner diameter that spans from 3750 mm to 4410 mm Made from high-grade stainless steel (14404), it meets RoHS compliance standards With a temperature tolerance from -50 °C to 120 °C, this cable gland is ideal for external use, ensuring reliable performance in various environments.

Features and Benefits:

    •Dual explosion protection type: Ex d - flameproof and Ex e - increased safety.

    •IP66 and IP68 protection degree.

    •Single-wire armouring for durability.

    •Halogen-free materials used.

Specifications:

 Height 76.5 mm
 Width 71.5 mm
 Length 92.5 mm
 Net weight 708 g
 Operating temperature -50 °C to 120 °C
 Diameter (min/max) Outer: 45.55mm - 53mm, Inner: 37.50mm - 44.10mm
 Type of armouring Single-wire armouring
 External thread M 50 x 1.5
 Length of thread 16 mm
 Tightening torque 105 Nm
 Basic material Stainless steel 1.4404
 O-Ring Silicone
 Seal insert Silicone
 Standards EN 60079-0, EN 60079-1, and others
