1188900000 - M50 Stainless Steel Cable Gland for SWA Armored Cables (Pack of 4)

SKU: SKU: 1188900000 Download PDF

Select a Variant:

1188900000 - M50 Stainless Steel Cable Gland for SWA Armored Cables (Pack of 4)

SET THE QTY:

Now $3,112.51 Web pricing policy

~~BEFORE $0.00~~ Now $3,112.51 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

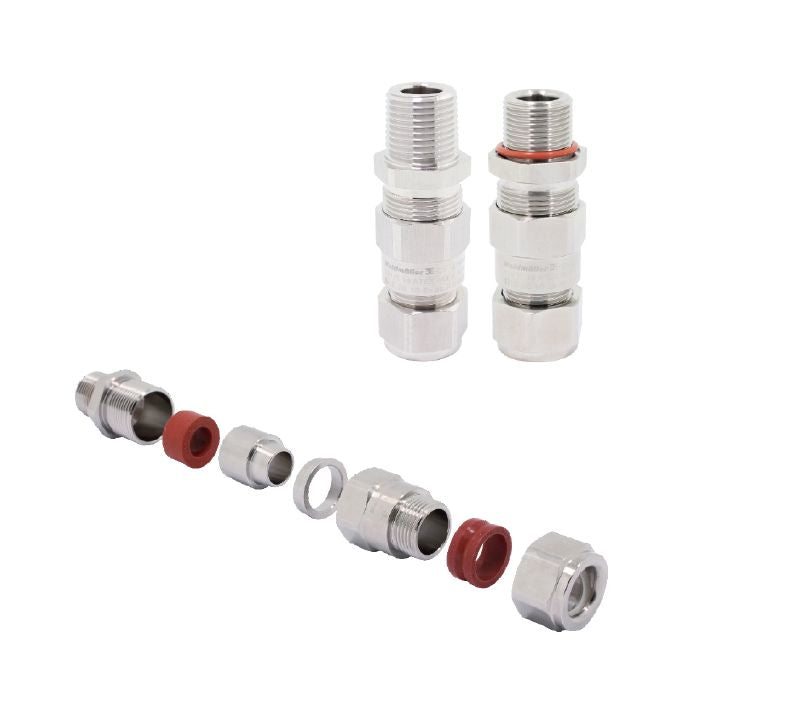

Introducing the E1W cable gland, specifically engineered for SWA armored cables With an M 50 x 15 thread size, it is compatible with single-wire armor thicknesses of 2 to 25 mm This reliable component features an outer diameter of 385 mm to 465 mm and an inner diameter measuring 3150 mm to 3820 mm Crafted from durable stainless steel 14404, the E1W provides exceptional protection against environmental factors, making it suitable for a wide range of applications.

Features and Benefits:

•Explosion protection type: Ex d - flameproof, Ex e - increased safety.

•Protection degree: IP66, IP68.

•Operating temperature range: -50 °C to 120 °C.

•Material: Stainless steel 1.4404.

•Type of armouring: Single-wire armouring.

Specifications:

AF size 1	60 mm
AF size 2	60 mm
Armour, max.	2.5 mm
Armour, min.	2 mm
Cable gland	M 50
External thread	M 50 x 1.5
Inner cable diameter, max.	38.2 mm
Inner cable diameter, min.	31.5 mm
Length of thread	16 mm
Number of wires	1
Outer cable diameter, max.	46.5 mm
Outer cable diameter, min.	38.5 mm
Pitch of thread	1.5 mm
Seal insert	Silicone
Sealing	Silicone
Standards	EN 60079-0, EN 60079-1, GB 3836.1, GB 3836.2, GB 3836.3, EN 60079-31, EN 60079-7, IEC 60079-0, IEC 60079-1, IEC 60079-31, IEC 60079-7, GB 12476.1, GB 12476.5
Tightening torque	95 Nm
