Description:

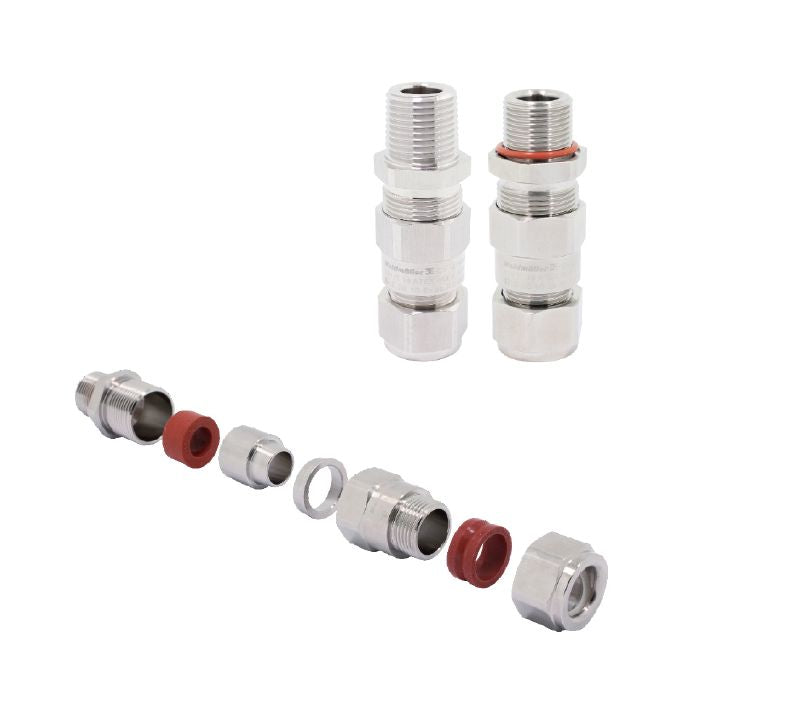

Introducing the E1WS/32/M32-WM cable gland, expertly engineered for straight applications with a robust double seal, specifically designed for SWA armored cables This versatile gland accommodates cable outer diameters of 26 mm to 34 mm and supports inner diameters between 1950 mm and 2630 mm Crafted from stainless steel 14404, it meets RoHS compliance and is certified for safety standards such as IECEx and ATEX, making it a reliable choice for various applications.

Features and Benefits:

•Designed to accommodate M 32 x 1.5 thread.

•Suitable for cables with single-wire armoring.

•Explosive protection per Ex d and Ex e classifications.

•Protection degree IP66 and IP68.

Specifications:

Height	67 mm
Width	50.6 mm
Length	83 mm
Net weight	385 g
Operating temperature	-50 °C to 120 °C
Number of wires	1
Inner cable diameter, min	19.5 mm
Inner cable diameter, max	26.3 mm
Outer cable diameter, min	26 mm
Outer cable diameter, max	34 mm
Length of thread	16 mm
Pitch of thread	1.5 mm
Tightening torque	65 Nm
Armour, min	1.6 mm
Armour, max	2 mm
Basic material	Stainless steel 1.4404
O-Ring	Silicone
Seal insert	Silicone
Sealing	Silicone
Halogen	No
Standards	EN 60079-0, EN 60079-1, GB 3836.1, GB 3836.2, GB 3836.3, EN 60079-31, EN 60079-7, IEC 60079-0, IEC 60079-1, IEC 60079-31, IEC 60079-7
