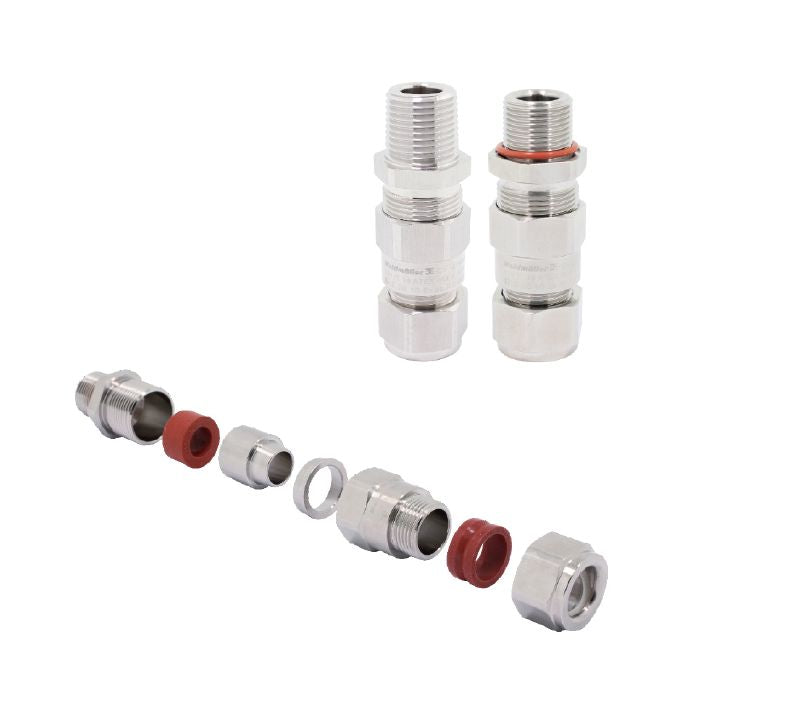

1188870000 - Stainless Steel SWA Cable Gland M25, 20-27.5mm Diameter (Pack of 12)

SKU: SKU: 1188870000 Download PDF

Select a Variant:

1188870000 - Stainless Steel SWA Cable Gland M25, 20-27.5mm Diameter (Pack of 12)

SET THE QTY:

Now $2,019.53 Web pricing policy

~~BEFORE $0.00~~ Now $2,019.53 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the E1WS/25/M25-WM, a robust double seal SWA armored cable gland tailored for straightforward installations with a thread size of M 25 x 15 This versatile gland supports single-wire armoring with diameters between 125 mm and 16 mm, accommodating an outer diameter range of 20 mm to 275 mm Additionally, it offers an inner diameter that spans from 1350 mm to 2000 mm Crafted from durable stainless steel 1.

4404, this cable gland adheres to ROHS compliance and meets multiple certification standards, including IECEx and ATEX, making it a reliable choice for various applications.

Features and Benefits:

•Constructed from stainless steel 1.4404.

•Ex d - flameproof type explosion protection.

•IP66 and IP68 protection degree.

•Compatible with single-wire armoring.

•Silicone sealing for enhanced durability.

Specifications:

Height	64 mm
Width	42 mm
Length	80 mm
Operating temperature range	-50 °C...120 °C
Inner cable diameter, min	13.5 mm
Inner cable diameter, max	20 mm
Outer cable diameter, min	20 mm
Outer cable diameter, max	27.5 mm
Length of thread	16 mm
Number of wires	1
Tightening torque	45 Nm
Type of armouring	Single-wire armouring
Armour, min	1.25 mm
Armour, max	1.6 mm
