1188480000 - M20 Brass Blanking Plug, 21.5mm x 27mm, Nickel-Plated (Pack of 24)

SKU: SKU: 1188480000 Download PDF

Select a Variant:

1188480000 - M20 Brass Blanking Plug, 21.5mm x 27mm, Nickel-Plated (Pack of 24)

SET THE QTY:

Now $248.35 Web pricing policy

~~BEFORE $0.00~~ Now $248.35 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

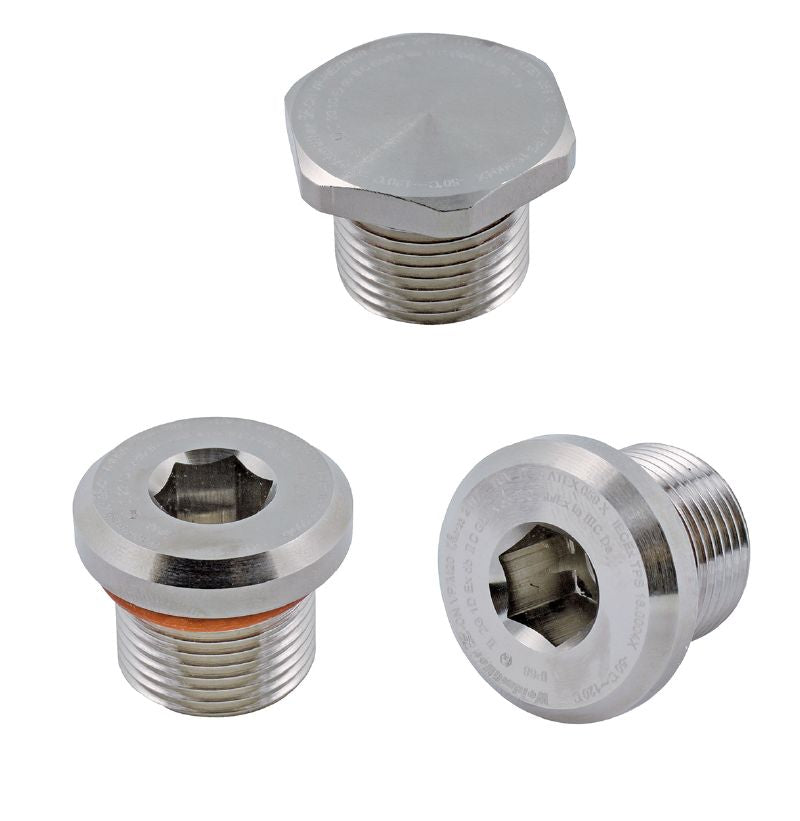

Introducing the VP M20-EX W, a robust blanking plug from the Klippon Ex series, featuring a unique mushroom head design Tailored for M 20 x 15 applications, this straight plug is crafted from high-quality brass and finished with a durable nickel plating, ensuring both reliability and a sleek appearance Perfect for a variety of industrial uses.

Features and Benefits:

•Material: Brass, nickel-plated.

•Cable gland size: M 20.

•Halogen-free.

•Impact resistance rating: 7.00 J.

•Protection degree: IP66/IP68.

Specifications:

Height	21.5 mm
Width	27 mm
Length	21.5 mm
Diameter	20 mm
Wall thickness, min	0.5 mm
Wall thickness, max	15 mm
Operating temperature	-50 °C to 120 °C
Tightening torque	40 Nm
Diameter of sealing ring	20 mm
Length of thread	16 mm
Pitch of thread	1.5 mm
O-Ring	Silicone
Explosion protection type	Ex d - flameproof, Ex e - increased safety
RoHS Compliance Status	Compliant with exemption
RoHS Exemption	6c
REACH SVHC	Lead 7439-92-1
Certificate No. (IECEX)	IECEXTPS16.0004X
Certificate no. (ATEX)	TÜV IT 16ATEX 059X
Certificate no. (CCC)	2020322313000069
Identification	II 2G 1D, Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
