Description:

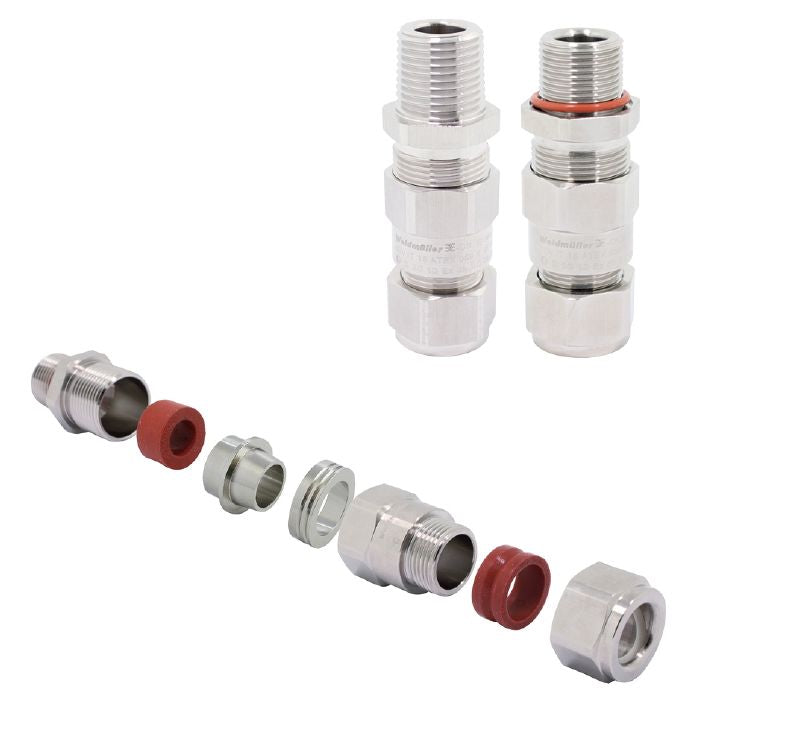

Introducing the Klippon double seal SWB/STA armored Ex e/d cable gland, expertly engineered for straight applications with precise M20 x 15 threading This robust gland features durable metal and braided armoring for enhanced protection It supports a minimum outer diameter of 125 mm and a maximum of 16 mm, along with accommodating a minimum inner diameter of 8 mm and a maximum of 1170 mm Crafted from high-quality stainless steel 1.

4404, this cable gland guarantees superior performance in demanding environments.

Features and Benefits:

•Braided armouring and metal foil armouring for enhanced protection.

•Ex d - flameproof and Ex e - increased safety explosion protection types.

•IP66 and IP68 protection degrees for durability in adverse conditions.

•O-Ring and seal insert made from silicone for secure sealing.

Specifications:

Height	62.5 mm
Width	28.5 mm
Length	78.5 mm
Operating temperature range	-50 °C...120 °C
Basic material	Stainless steel 1.4404
Cable gland	M 20
Outer cable diameter, min.	12.5 mm
Outer cable diameter, max.	16 mm
Inner cable diameter, min.	8 mm
Inner cable diameter, max.	11.70 mm
Armour, min.	0.9 mm
Armour, max.	1.25 mm
Length of thread	16 mm
Number of wires	1
Tightening torque	20 Nm
Certificate No. (IECEX)	IECEXTPS16.0004X
Certificate no. cable gland (ATEX)	TÜV IT 16ATEX 059X
