1185280000 - M16 Stainless Steel Cable Gland, Ex e/d, Ø4.5-8.7mm (Pack of 24)

SKU: SKU: 1185280000 Download PDF

Select a Variant:

1185280000 - M16 Stainless Steel Cable Gland, Ex e/d, Ø4.5-8.7mm (Pack of 24)

SET THE QTY:

Now $1,306.18 Web pricing policy

~~BEFORE $0.00~~ Now $1,306.18 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

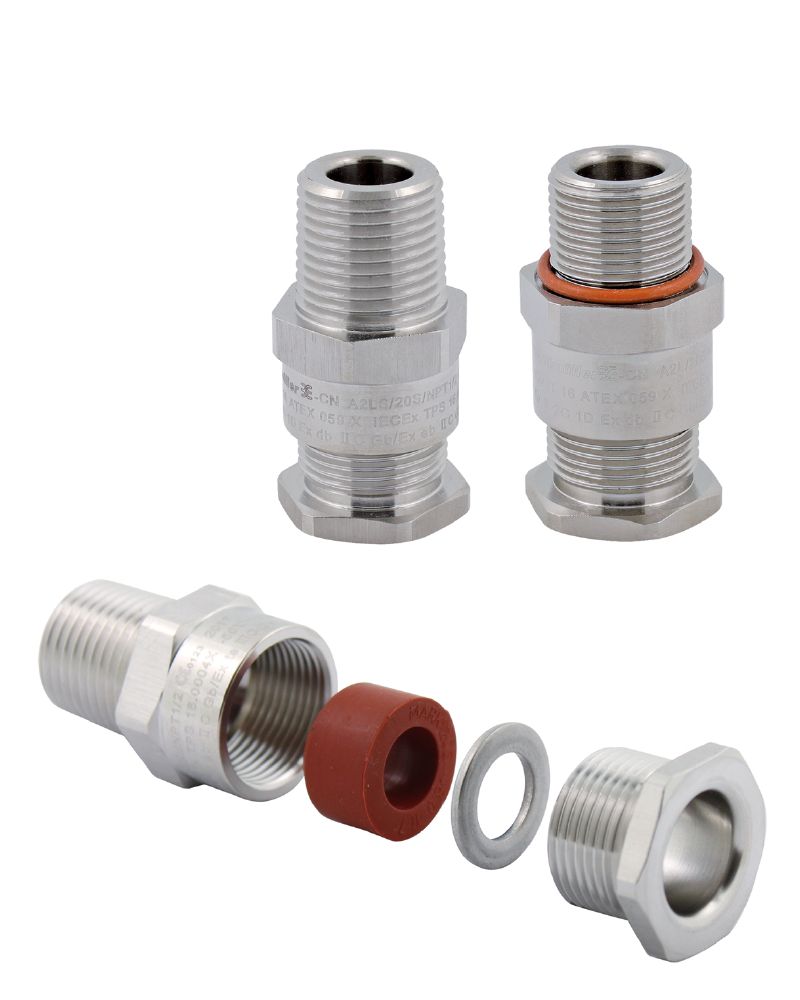

Introducing the A2L Klippon unarmored Ex e/d cable gland, an essential component for a multitude of applications Crafted from high-quality stainless steel 14404, this cable gland features a straight design and an external thread size of M 16 x 15 It can accommodate cable diameters ranging from 45 mm to 87 mm, with a thread length of 136 mm Compliant with RoHS standards, it also boasts certifications for IECEx and ATEX, highlighting its robust explosion protection properties categorized under Ex d - flameproof and Ex e - increased safety.

Ideal for ensuring secure cable management in hazardous environments.

Features and Benefits:

•Made from stainless steel 1.4404.

•Operating temperature range from -50 °C to 120 °C.

•Meets IP66 and IP68 protection levels.

•No halogen content.

•Includes silicone O-ring and seal insert.

Specifications:

Height	35.8 mm
Length	51.8 mm
Operating temperature	-50 °C...120 °C
External thread	M 16 x 1.5
Outer cable diameter, min.	4.5 mm
Outer cable diameter, max.	8.7 mm
Protection degree	IP66, IP68
Tightening torque	18 Nm
Certificate No. (IECEX)	IECEXTPS16.0004X
Certificate no. cable gland (ATEX)	TÜV IT 16ATEX 059X
Dimensions and weights	Height 35.8 mm, Length 51.8 mm, Net weight 71.61 g
Basic material	Stainless steel 1.4404
Explosion protection type	Ex d - flameproof, Ex e - increased safety
