Description:

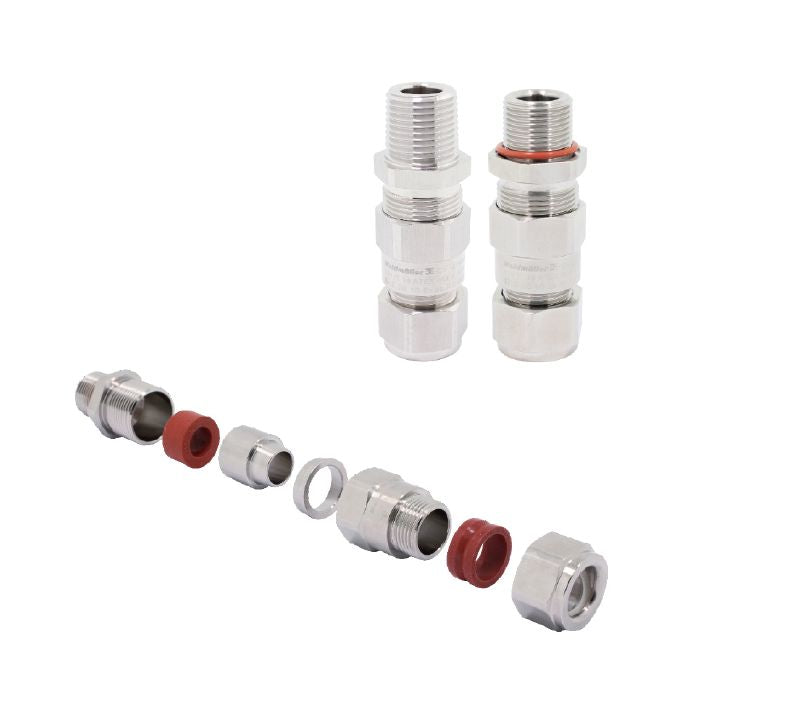

Introducing the Klippon E1W/40/M40-WM double seal SWA armored Ex e/d cable gland, expertly crafted for straight applications This component boasts a thread size of M 40 x 15 and accommodates single-wire armoring with diameters ranging from 16 mm to 2 mm It features an outer diameter between 305 mm and 405 mm, while the inner diameter falls within 2550 mm to 3220 mm Constructed from nickel-plated brass, this cable gland meets multiple safety standards, ensuring reliable connectivity in diverse environments.

Features and Benefits:

•Approvals: RoHS compliant with exemptions.

•Explosion protection type: Ex d - flameproof, Ex e - increased safety.

•Protection degree: IP66 and IP68.

•Operating temperature range: -50 °C to 120 °C.

•Basic material: Brass, nickel-plated.

•O-Ring type: Silicone.

•Halogen-free.

•Suitable for use in environments requiring explosion protection and advanced safety measures.

Specifications:

Height	77.5 mm
Width	60.5 mm
Length	93.5 mm
Number of wires	1
Armour, max.	2 mm
Armour, min.	1.6 mm
Inner cable diameter, max.	32.2 mm
Inner cable diameter, min.	25.5 mm
Outer cable diameter, max.	40.5 mm
Outer cable diameter, min.	30.5 mm
Length of thread	16 mm
Pitch of thread	1.5 mm
Tightening torque	80 Nm
Seal insert	Silicone
