1184700000 - Klippon M32 Double Seal Cable Gland for Secure Connections (Pack of 12)

1184700000 - Klippon M32 Double Seal Cable Gland for Secure Connections (Pack of 12)

SKU: 1184700000 Download PDF

Variant:
  • 1184700000 - Klippon M32 Double Seal Cable Gland for Secure Connections (Pack of 12)
Now $1,572.94
BEFORE   $0.00 Now $1,572.94
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

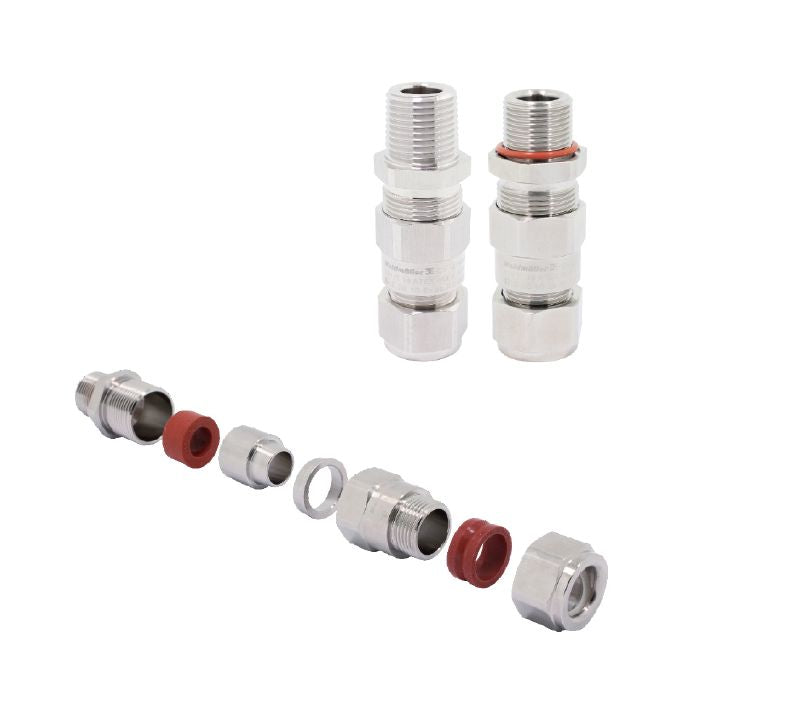

Ensure dependable connections with the Klippon E1W/32/M32-WM double seal SWA armored Ex e/d cable gland With a straight configuration and an external thread of M 32 x 15, this durable cable gland is expertly designed for single-wire armoring with thicknesses between 16 mm and 2 mm It accommodates outer diameters from 26 mm to 34 mm and has an inner diameter ranging from 1950 mm to 2630 mm Crafted from nickel-plated brass, this product promises reliable performance in various environments.

Features and Benefits:

    •Compliant with RoHS.

    •Explosion protection type: Ex d - flameproof and Ex e - increased safety.

    •Protection degree: IP66 and IP68.

    •Operating temperature range: -50 °C to 120 °C.

    •Tightening torque: 65 Nm.

    •O-ring and sealing materials made of silicone.

Specifications:

 Height 67 mm
 Width 50.6 mm
 Length 83 mm
 Net weight 418 g
 Basic material Brass, nickel-plated
 Inner cable diameter, max 26.3 mm
 Inner cable diameter, min 19.5 mm
 Outer cable diameter, max 34 mm
 Outer cable diameter, min 26 mm
 Length of thread 16 mm
 Number of wires 1
 Type of armouring Single-wire armouring
 Certification numbers {'IECEX': 'IECEXTPS16.0004X', 'ATEX': 'TÜV IT 16ATEX 059X', 'CCC': '2020322313000069'}
 Environmental Product Compliance {'RoHS Compliance Status': 'Compliant with exemption', 'RoHS Exemption': '6c', 'REACH SVHC': 'Lead 7439-92-1'}
