1184680000 - M20 Brass Cable Gland for 15-21mm SWA Armored Cables (Pack of 24)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

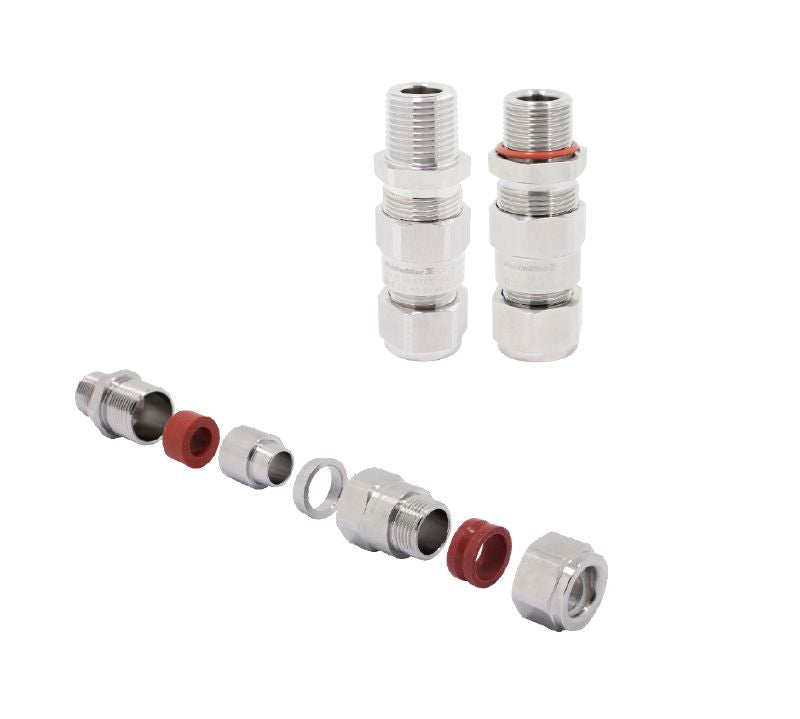

Introducing the E1W/20/M20-WM straight cable gland, specifically engineered for single-wire armoured cables This cable gland features a thread size of M 20 x 15, optimized to fit cables with an outer diameter ranging from 15 mm to 21 mm and an inner diameter from 10 mm to 14 mm Crafted from robust brass and finished with a nickel plating, it's built for long-lasting performance across various applications.

Perfect for ensuring secure connections in different environments.

Features and Benefits:

•Compatible with cables with a minimum armouring thickness of 0.9 mm and a maximum of 1.25 mm.

•Offers a protection degree of IP66 and IP68.

•Suitable for operating temperatures from -50 °C to 120 °C.

•Includes silicone sealing for enhanced protection.

•Certified for explosion protection under Ex d and Ex e standards.

Specifications:
