1184650000 - M16 Brass Double Seal Cable Gland for Armored Cables (Pack of 24)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

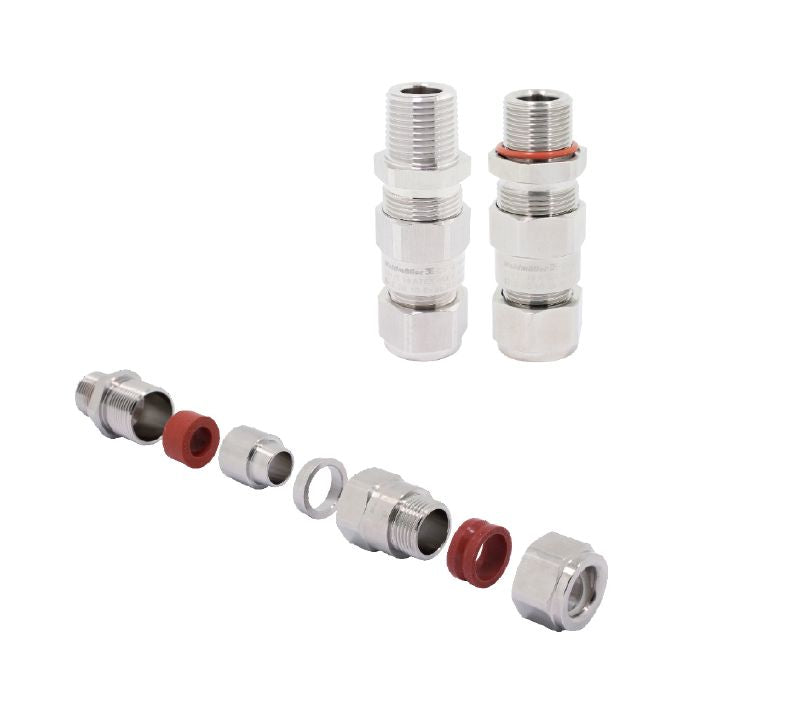

Introducing the E1W/16/M16-WM, a robust double-seal SWA armored cable gland ideal for straight applications This versatile component supports a range of cable types and comes equipped with an M 16 x 15 external thread It effectively accommodates armoring with a thickness of 09 mm and is compatible with cables having an outer diameter between 8 mm and 135 mm, as well as an inner diameter ranging from 4.

5 mm to 87 mm Crafted from durable brass with a nickel-plated finish, this cable gland can perform in temperatures from -50 °C to 120 °C Additionally, it meets RoHS standards and carries multiple certification numbers, confirming its suitability for use in hazardous environments.

Features and Benefits:

•Compliant with RoHS and includes exemption.

•Brass body with nickel plating for durability.

•Ex d - flameproof and Ex e - increased safety explosion protection types.

•IP66 and IP68 protection ratings.

•Silicone O-ring and seal insert for enhanced sealing.

Specifications:
