0295060000 - 22.5mm IP65 Blanking Plug in Polyamid 6 (PA6 - GF30) (Pack of 100)

SKU: SKU: 0295060000 Download PDF

Select a Variant:

0295060000 - 22.5mm IP65 Blanking Plug in Polyamid 6 (PA6 - GF30) (Pack of 100)

SET THE QTY:

Now $38.79 Web pricing policy

~~BEFORE $0.00~~ Now $38.79 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VP 16-K54 blanking plug, expertly crafted from Polyamide 6 (PA6 - GF30) for optimal performance in closed applications With a diameter of 225 mm, this plug provides reliable protection rated at IP54 When paired with GWDR, it achieves an impressive IP65 rating, ensuring maximum durability This component is also RoHS compliant, guaranteeing that it contains no hazardous substances above 0.

1 wt% Choose the VP 16-K54 for robust sealing solutions that meet high standards of safety and functionality.

Features and Benefits:

•Made from Polyamid 6 (PA6 - GF30).

•Operating temperature range from -40 °C to 100 °C.

•Protection degree of IP54, with increased protection degree to IP65 when applicable.

•UL 94 flammability rating of V-2.

•Suitable for PG 16 external thread.

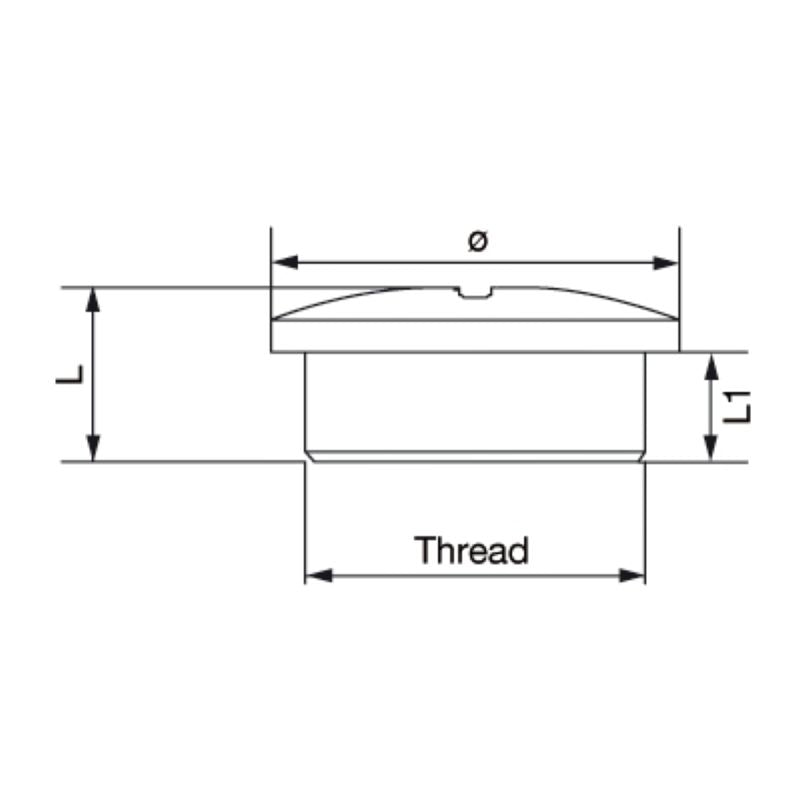

Specifications:

Height	5 mm
Length	10 mm
Diameter	22.5 mm
Wall thickness, min.	0.5 mm
Wall thickness, max.	4 mm
Operating temperature	-40 °C...100 °C
Diameter of sealing ring	22.5 mm
Head diameter	27 mm
Length of thread	5 mm
Protection degree	IP54
Protection degree with GWDR	IP65
General purpose compliance	RoHS Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%
ETIM 6.0	EC000451
ECLASS 9.0	27-14-44-25
