0294960000 - IP65 Polyamide Blanking Plug 20.4mm for PG 13.5 Fittings (Pack of 100)

SKU: SKU: 0294960000 Download PDF

Select a Variant:

0294960000 - IP65 Polyamide Blanking Plug 20.4mm for PG 13.5 Fittings (Pack of 100)

SET THE QTY:

Now $32.10 Web pricing policy

~~BEFORE $0.00~~ Now $32.10 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

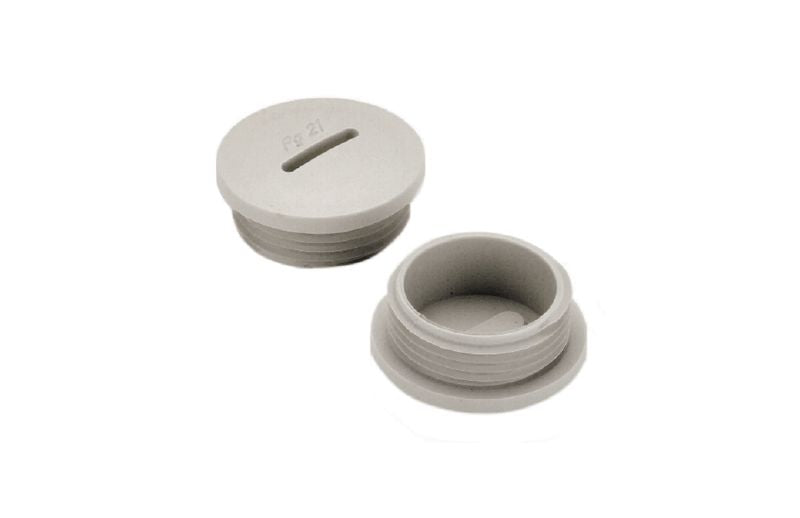

Introducing the VP 135-K54 closed state blanking plug, expertly crafted from durable polyamide 6 (PA6 - GF30) This component offers an impressive IP65 protection rating, ensuring reliability in various environments With dimensions measuring 10 mm in length, 5 mm in height, and a diameter of 204 mm, it’s tailored for compatibility with PG 135 fittings Additionally, this product adheres to RoHS standards without any exemptions.

Weighing just 18 grams, it’s a lightweight choice for your applications.

Features and Benefits:

•Available in a version with PG 13.5 thread.

•Meets IP65 protection standards.

•Made from durable polyamide 6 (PA6 - GF30).

•No halogens are present in the material.

Specifications:

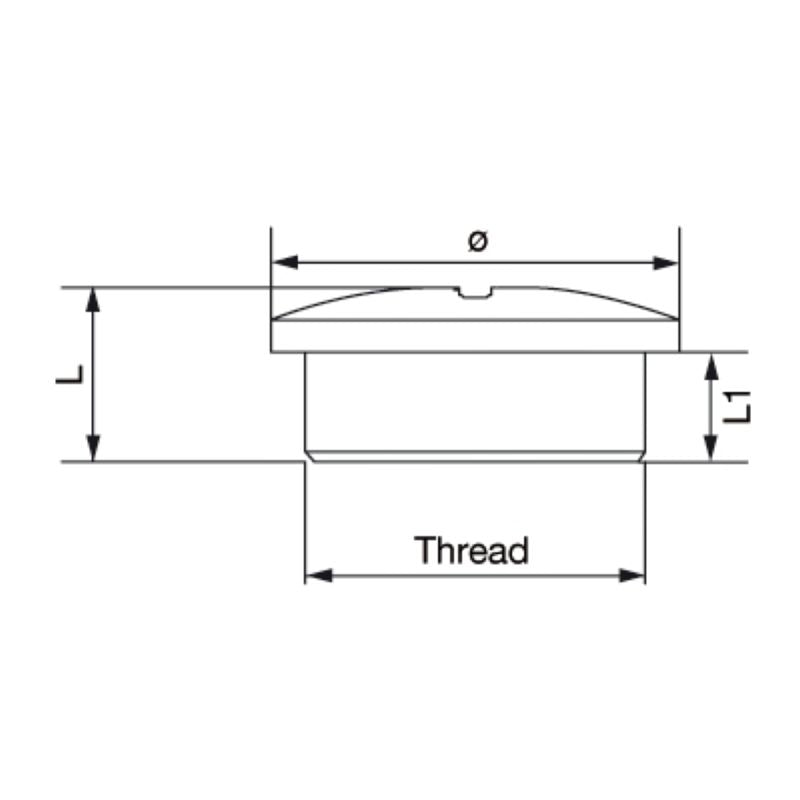

Height	5 mm
Length	10 mm
Diameter	20.4 mm
Wall thickness, min.	0.5 mm
Wall thickness, max.	4 mm
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Protection degree	IP54
Protection degree with GWDR	IP65
UL 94 flammability rating	V-2
Basic material	Polyamid 6 (PA6 - GF30)
Diameter of sealing ring	20.4 mm
External thread	PG 13.5
Head diameter	25 mm
Length of thread	5 mm
RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%
