8000078357 - 7.5mm Female PCB Connector, 6 Poles, Black Insulator (Pack of 42)
8000078357 - 7.5mm Female PCB Connector, 6 Poles, Black Insulator (Pack of 42)
SKU: SKU: 8000078357 Download PDF
- 8000078357 - 7.5mm Female PCB Connector, 6 Poles, Black Insulator (Pack of 42)
- 8000078357 - 7.5mm Female PCB Connector, 6 Poles, Black Insulator (Pack of 42)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our versatile female plug PCB connector, expertly designed with a 750 mm pitch and accommodating 6 poles This component meets IEC standards, supporting a voltage of up to 1000 V and a current of 346 A for wire gauges from 05 to 4 mm² Aligning with UL regulations, it holds a voltage rating of 600 V and can handle currents up to 185 A for AWG sizes 20 to 12 Each box includes 42 connectors, all constructed from robust insulating material in a classic black color.
Built to withstand extreme temperatures ranging from -50 °C to 125 °C, this connector is ideal for a range of applications.
Features and Benefits:
•RoHS compliant without exemption.
•IP20 protection degree.
•Touch-safe protection according to standards.

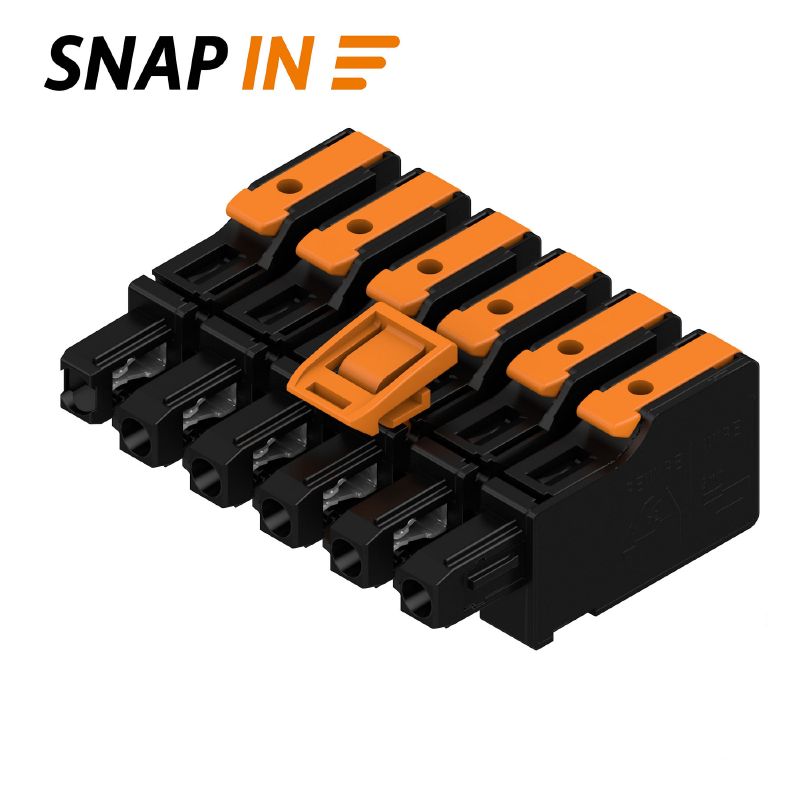

•Simple wire connection method via SNAP IN with lever.
•Complies with various international standards and norms.
Specifications:

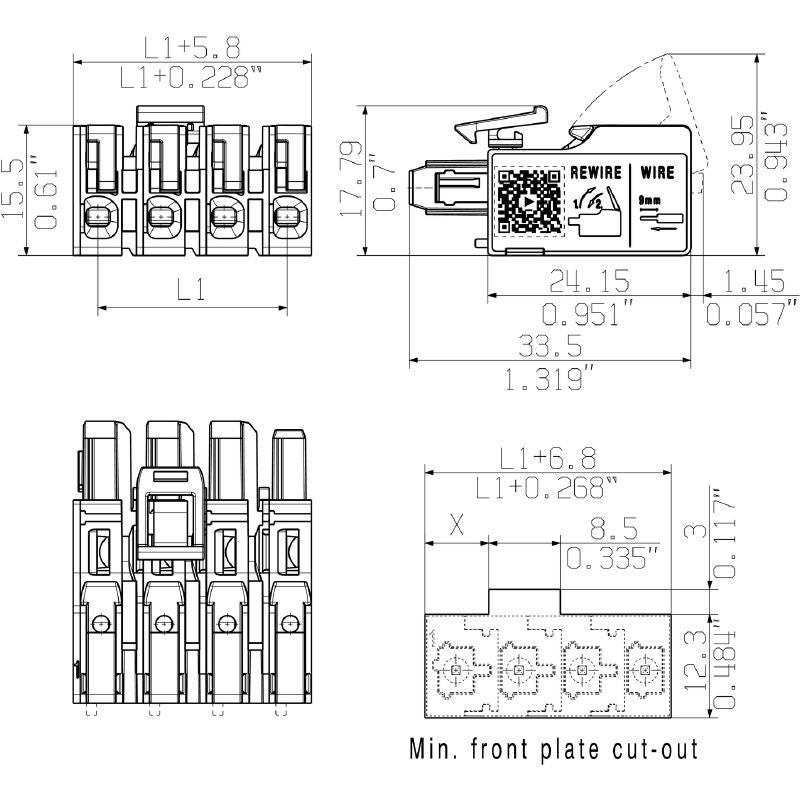

| Depth | 34.95 mm |
| Height | 17.5 mm |
| Width | 43.3 mm |
| Wire connection method | SNAP IN with lever |
| Conductor outlet direction | 180° |
| Number of poles | 6 |
| Stripping length | 9 mm |
| Plugging cycles | 25 |
| Ambient temperature | -50 °C…125 °C |
| Material | PBT GF |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Clamping range, min. | 0.34 mm² |
| Clamping range, max. | 4 mm² |
| Rated voltage | 600 V |
| Rated current | 18.5 A |
