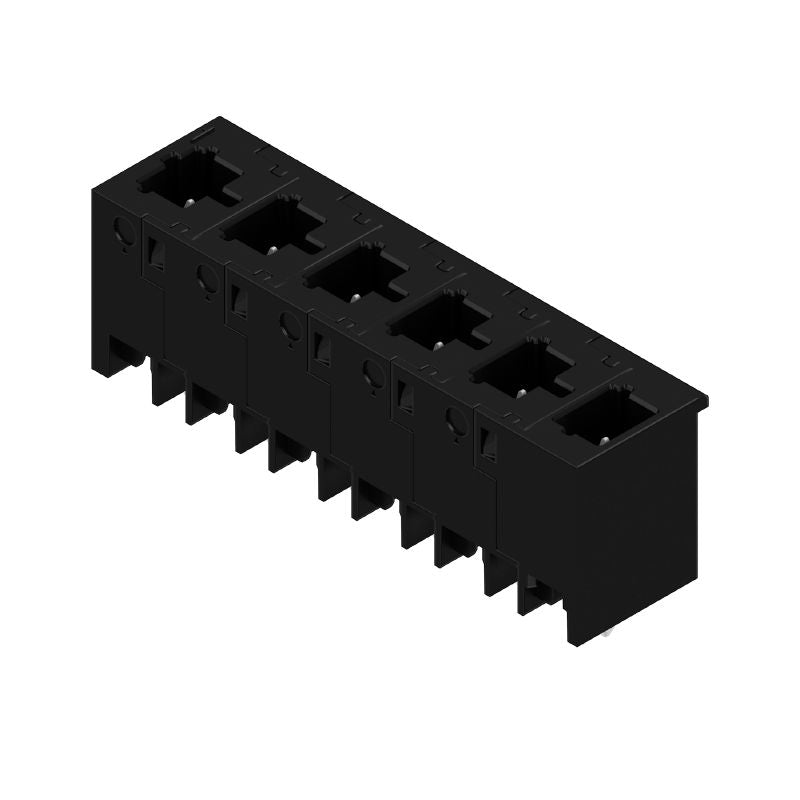

8000078318 - 7.50mm Pitch 6-Pole PCB Male Header Connector (Pack of 12)
8000078318 - 7.50mm Pitch 6-Pole PCB Male Header Connector (Pack of 12)
SKU: SKU: 8000078318 Download PDF
- 8000078318 - 7.50mm Pitch 6-Pole PCB Male Header Connector (Pack of 12)
- 8000078318 - 7.50mm Pitch 6-Pole PCB Male Header Connector (Pack of 12)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Elevate your connections with this high-performance PCB plug-in connector Featuring a male header suitable for THT/THR solder connections, it has a pitch of 750 mm and includes 6 poles arranged at a 180° angle Certified for compliance with both RoHS and UL, this connector comes with the cURus certificate No E60693 It is capable of handling up to 1000 V and 346 A, adhering to IEC standards for reliable performance.
Perfect for a wide range of applications, this connector ensures secure and efficient electrical connections.
Features and Benefits:
•Compliant with RoHS without exemptions.
•180° outgoing elbow design.
•UL File Number E60693 confirms certification.
•IP20 protection degree.
•Suitable for temperatures ranging from -50 °C to 125 °C.
Specifications:
| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 43.9 mm |
| Pitch in mm | 7.5 mm |
| Number of poles | 6 |
| Solder pin length | 3.2 mm |
| Solder eyelet hole diameter | 1.4 mm |
| Material | PA 9T |
| Contact material | Cu-alloy |
| Rated current | 34.6 A at 20°C |
| Rated voltage | 300 V |
| Plugging cycles | ≥ 25 |
| Rated impulse voltage | 4 kV at surge voltage class II/2 |
