8000078314 - 7.50mm PCB Connector, 2-Pole Male Header, RoHS Compliant (Pack of 39)
8000078314 - 7.50mm PCB Connector, 2-Pole Male Header, RoHS Compliant (Pack of 39)
SKU: SKU: 8000078314 Download PDF
- 8000078314 - 7.50mm PCB Connector, 2-Pole Male Header, RoHS Compliant (Pack of 39)
- 8000078314 - 7.50mm PCB Connector, 2-Pole Male Header, RoHS Compliant (Pack of 39)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

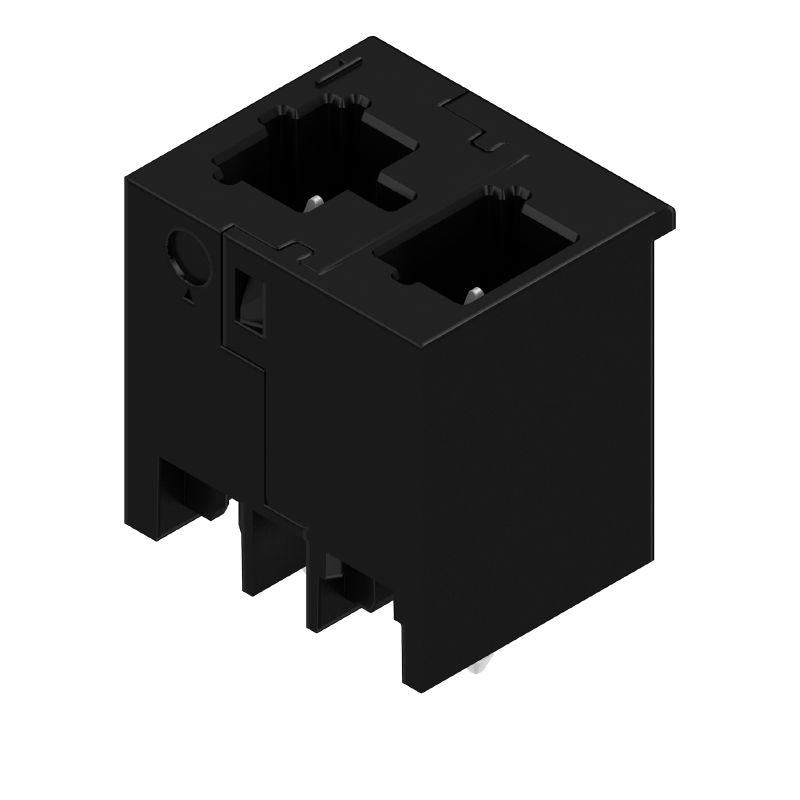

Discover the versatility of this PCB plug-in connector, designed with a male header and THT/THR solder connections for reliability It boasts a 750 mm pitch and features two poles set at a 180° arrangement Packaged in convenient tubes, this connector meets strict RoHS compliance without exemptions, ensuring environmental safety Ideal for board mounting, it adheres to various IEC and UL ratings for voltage and current, making it a dependable choice in the OMNIMATE 4.
0 product range.
Features and Benefits:
•Solder pin length of 3.2 mm.
•IP20 protection degree.
•Plugging cycles rated for 25 or more.

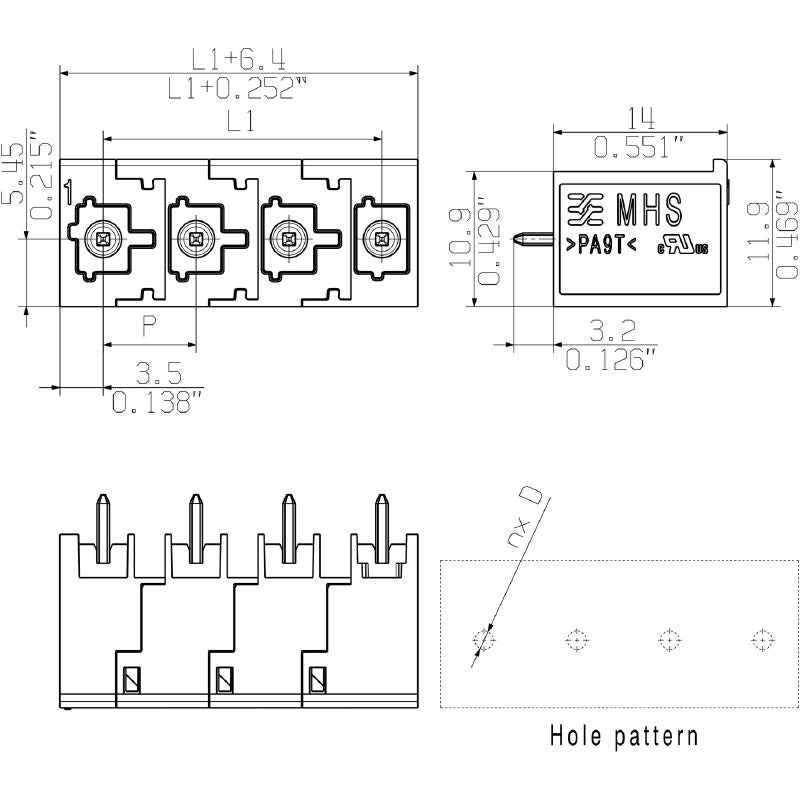

Specifications:
| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 13.9 mm |
| Ambient temperature | -50 °C…125 °C |
| Rated current, min. number of poles (Tu=20°C) | 34.6 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Material data - Insulating material | PA 9T |
| Colour | black |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
