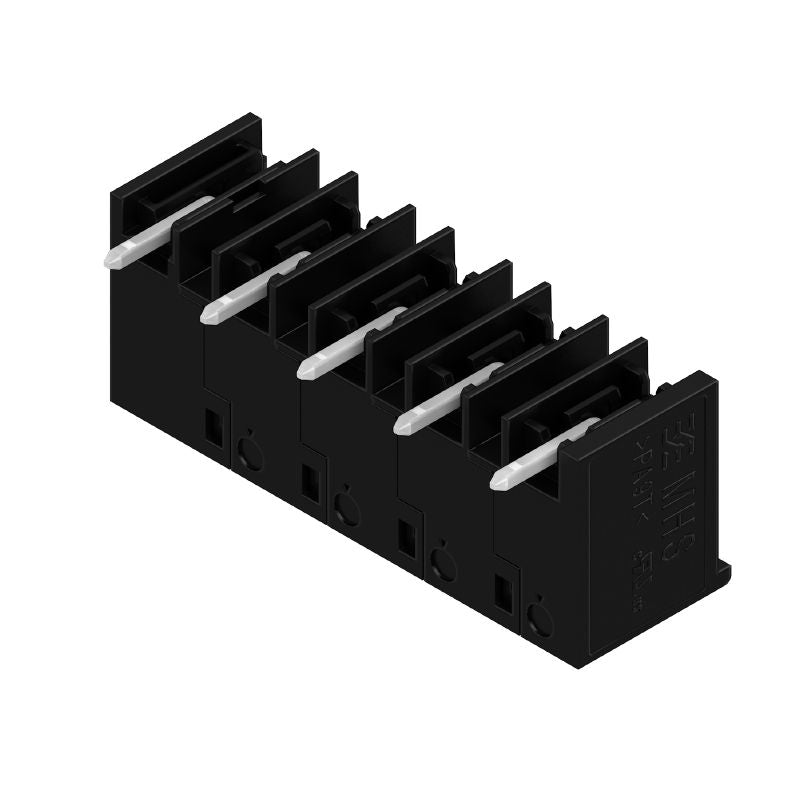

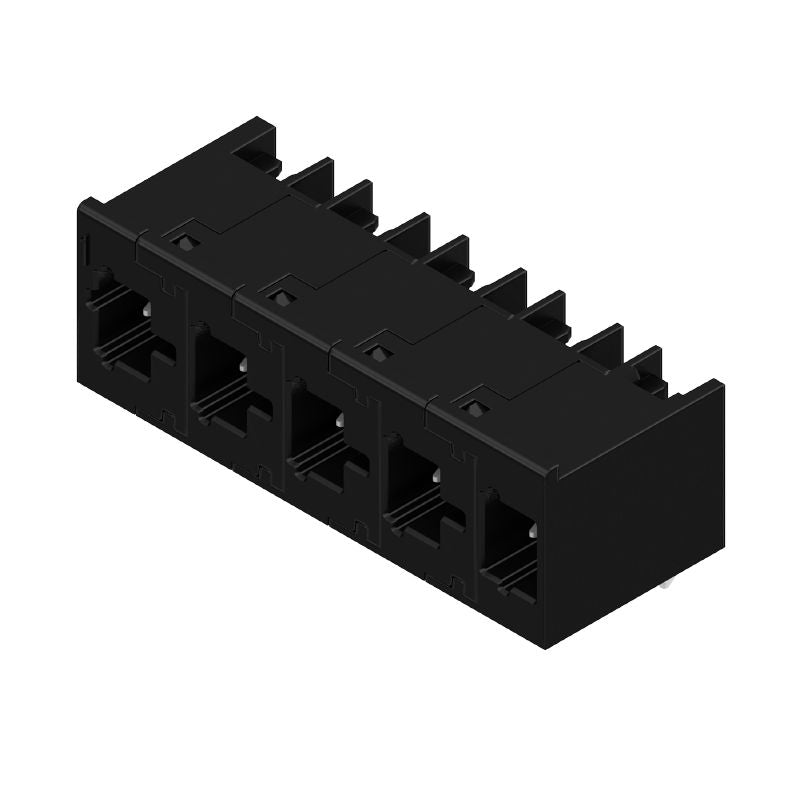

8000078310 - 7.5mm PCB Male Header Connector, 5 Poles at 90° (Pack of 15)
8000078310 - 7.5mm PCB Male Header Connector, 5 Poles at 90° (Pack of 15)
SKU: SKU: 8000078310 Download PDF
- 8000078310 - 7.5mm PCB Male Header Connector, 5 Poles at 90° (Pack of 15)
- 8000078310 - 7.5mm PCB Male Header Connector, 5 Poles at 90° (Pack of 15)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the MHS 7S/05 H T3 B T male header PCB plug-in connector, designed for reliable performance with THT/THR solder connections This connector boasts a 75 mm pitch and features five poles set at a convenient 90° angle It comes neatly packaged in a tube, making it easy to store and transport.
Features and Benefits:
•RoHS Compliant.
•IP20 protection degree.
•Minimum 25 plugging cycles.
•Insulating material group I.
•Meets international standards and norms.
Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 36.4 mm |
| Ambient temperature | -50 °C to 125 °C |
| Rated voltage | 300 V (UL 1059) |
| Rated current | 30.4 A (IEC) |
| Number of poles | 5 |
| Solder pin length | 3.2 mm |
| Contact base material | CuMg |
| Contact material | Cu-alloy |
| Tinning type | matt |
| Rated impulse voltage | 6 kV (surge voltage class III/3) |
| Storage temperature | -25 °C to 55 °C |
