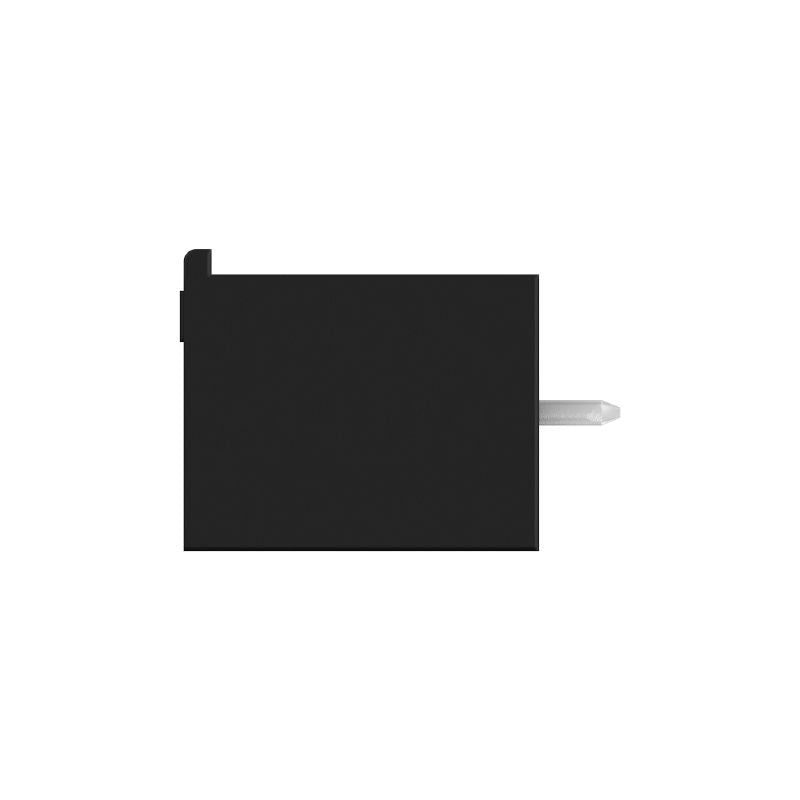

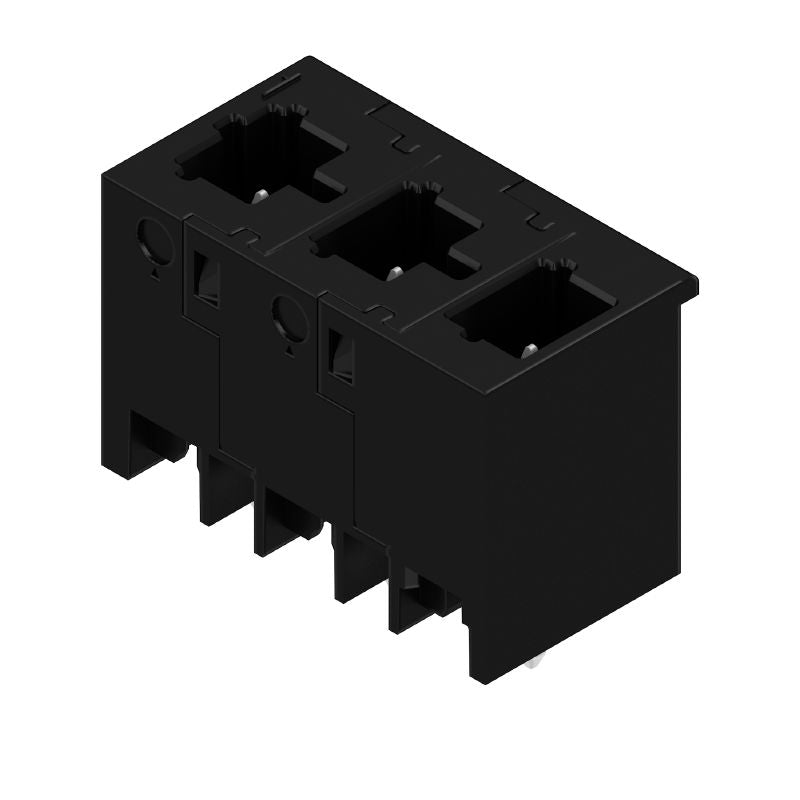

8000078315 - 7.5mm 3-Pole Male PCB Connector with 180° Elbow (Pack of 25)
8000078315 - 7.5mm 3-Pole Male PCB Connector with 180° Elbow (Pack of 25)
SKU: SKU: 8000078315 Download PDF
- 8000078315 - 7.5mm 3-Pole Male PCB Connector with 180° Elbow (Pack of 25)
- 8000078315 - 7.5mm 3-Pole Male PCB Connector with 180° Elbow (Pack of 25)
Couldn't load pickup availability
Description:
Discover this reliable PCB plug-in connector featuring a male header, ideal for THT/THR solder connections With a 750 mm pitch and a 180° outgoing elbow design, it offers versatility for your projects Packaged conveniently in a tube, this connector also meets RoHS compliance standards It operates efficiently within a temperature range of -50 °C to 125 °C, making it suitable for a wide array of applications.
Features and Benefits:
•Compliant with RoHS without exemption.
•Rated for both 1000 V and 300 V applications.
•Plugging cycles expected to be 25 or greater.
•Insulating material meets the standards of group I.
•Moisture Level (MSL) of 1.
Specifications:
| Pitch in mm (P) | 7.5 mm |
| Number of poles | 3 |
| Solder pin length | 3.2 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Protection degree | IP20 |
| Plugging force/pole, max | 9 N |
| Pulling force/pole, max | 8 N |
| Insulating material | PA 9T |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 flammability rating | V-0 |
| Rated current, min. number of poles (Tu=20°C) | 34.6 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated voltage (Use group B / UL 1059) | 300 V |
