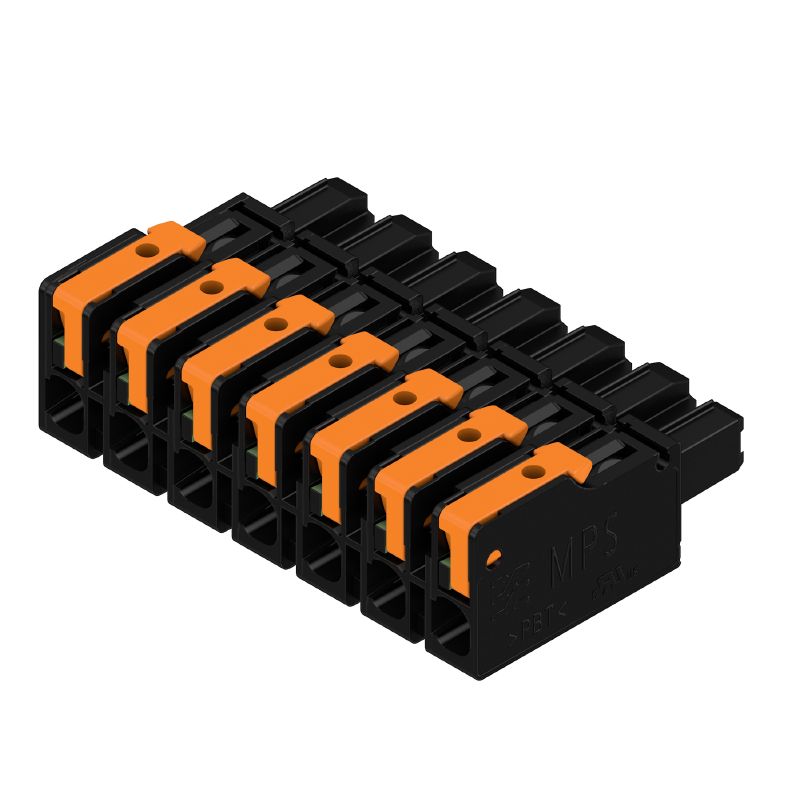

Description:
Discover this versatile PCB plug-in female connector designed with a 750 mm pitch, featuring 7 poles for reliable connections It supports electrical ratings of up to 1000 V and 346 A, accommodating wire sizes from 05 mm² to 4 mm² Additionally, with a UL rating, it safely operates at 600 V and 185 A, compatible with wire gauges ranging from AWG 20 to AWG 12 Packaged in a compact box, this connector ensures convenient transport and storage.
Features and Benefits:
•Female plug-in connector.
•Field connection type.

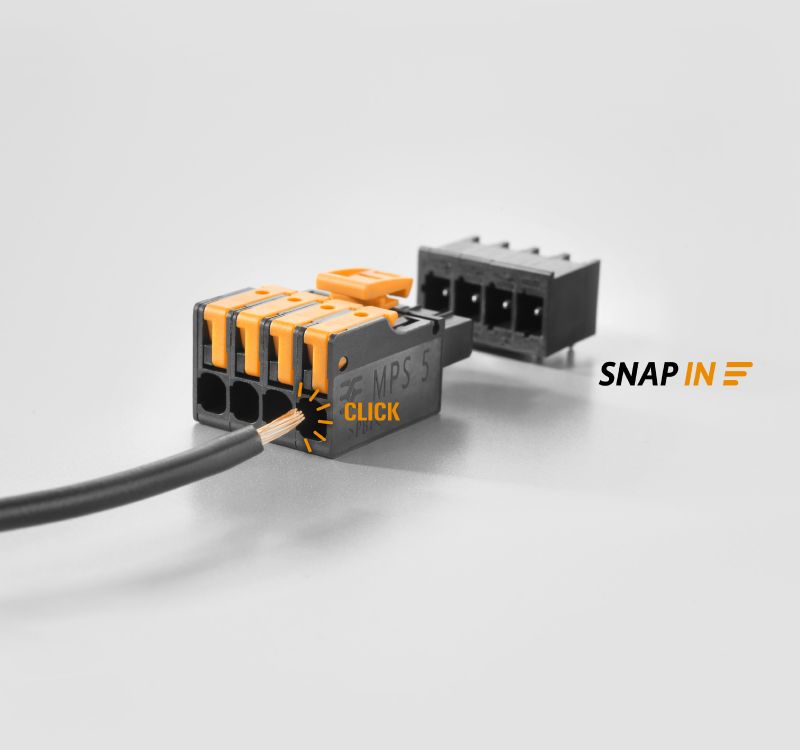

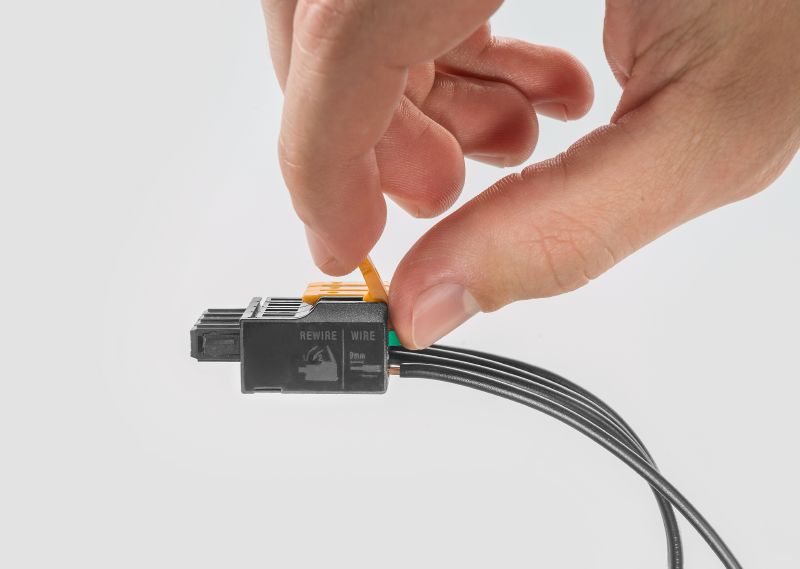

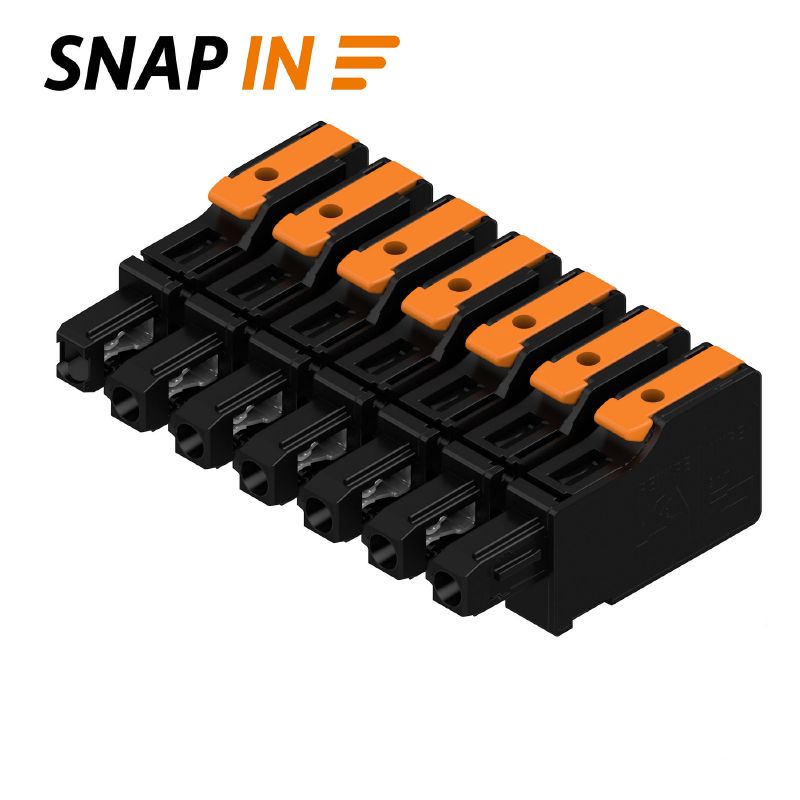

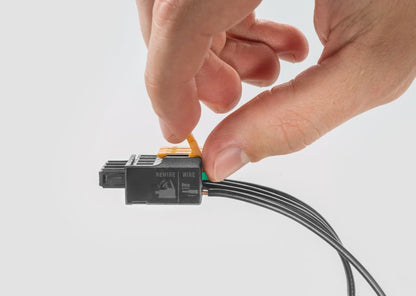

•SNAP IN lever wire connection method.
•Safe from finger touch.
•Touch-safe protection according to DIN VDE 57 106.
•Compliant with RoHS without exemption.
•No SVHC present above 0.1 wt%.
•One-row pole arrangement.
•Available with a number of conductors suitable for different wire cross-sections.
Specifications:

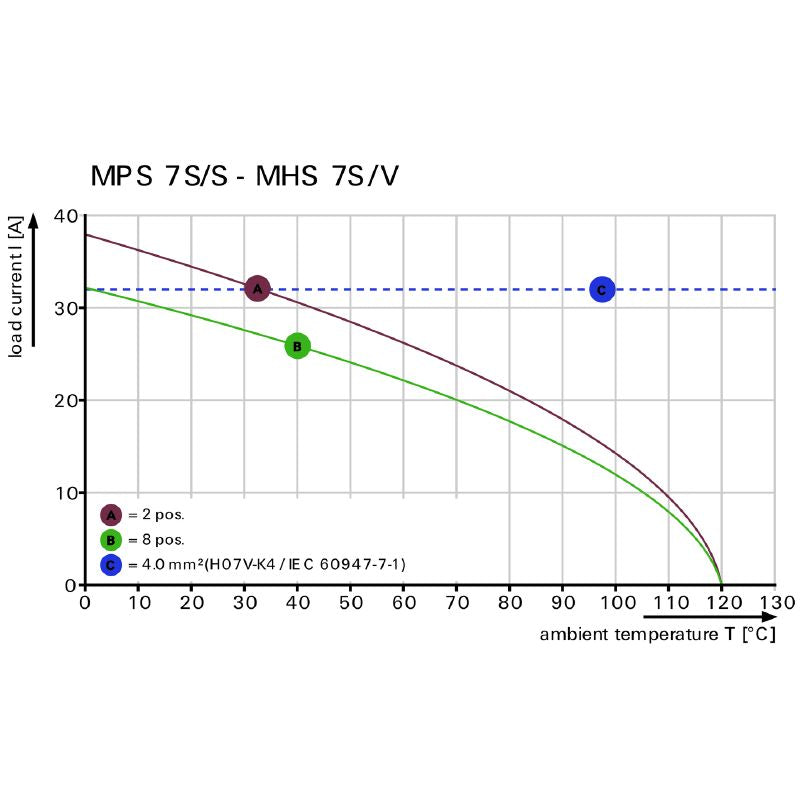

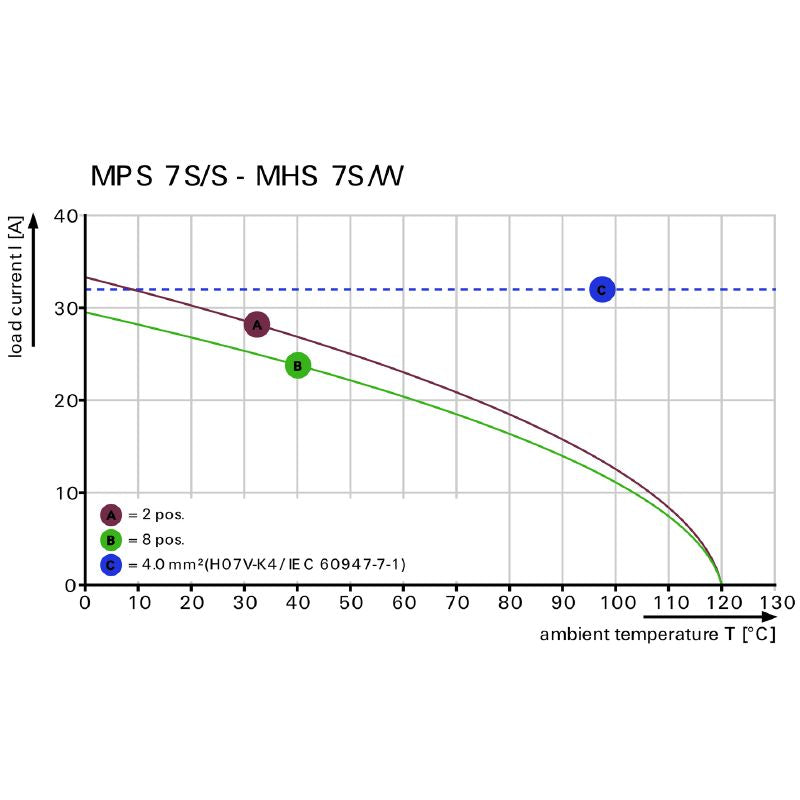

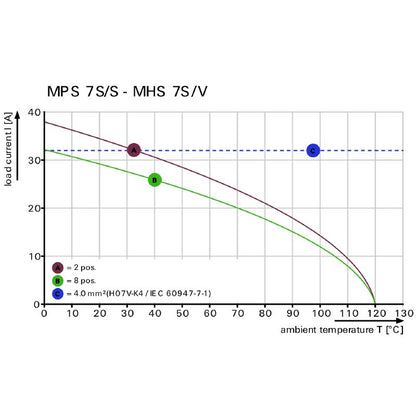

| Depth | 34.95 mm |
| Height | 15.5 mm |
| Width | 50.8 mm |
| Ambient temperature | -50 °C…125 °C |
| Insulating material | PBT GF |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Stripping length | 9 mm |
| Number of poles | 7 |
| Protection degree | IP20 |
| Rated voltage (maximum) | 1000 V |
| Rated current (maximum) | 34.6 A |
| Plugging cycles | 25 |
| Plugging force/pole (maximum) | 9 N |
| Pulling force/pole (maximum) | 8 N |
| Wire connection cross section AWG (minimum) | AWG 20 |
| Wire connection cross section AWG (maximum) | AWG 12 |
| Storage temperature (maximum) | 55 °C |
| Storage temperature (minimum) | -25 °C |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL voltage rating | 600 V |
