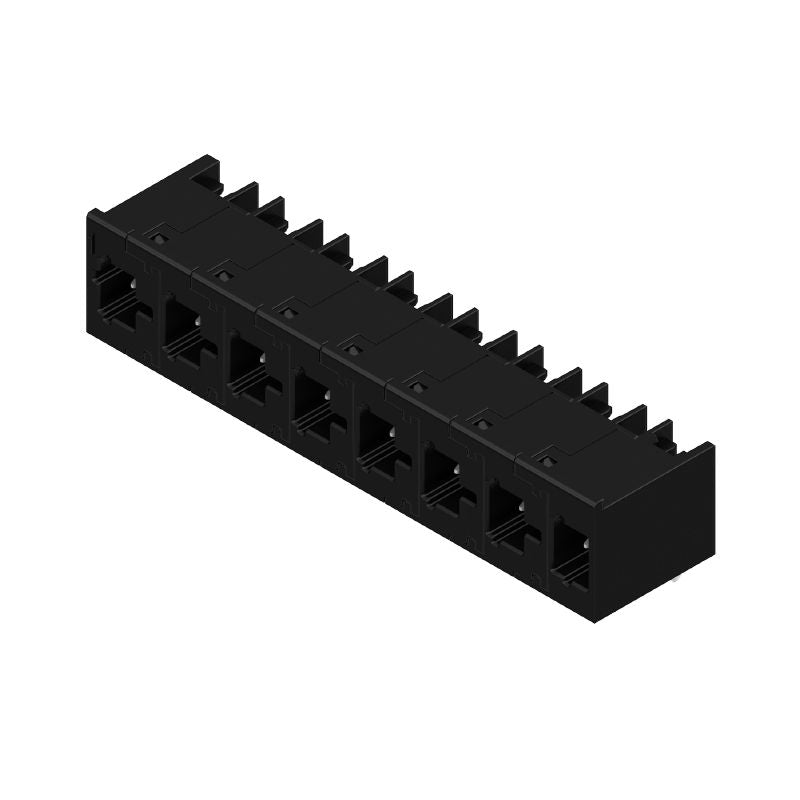

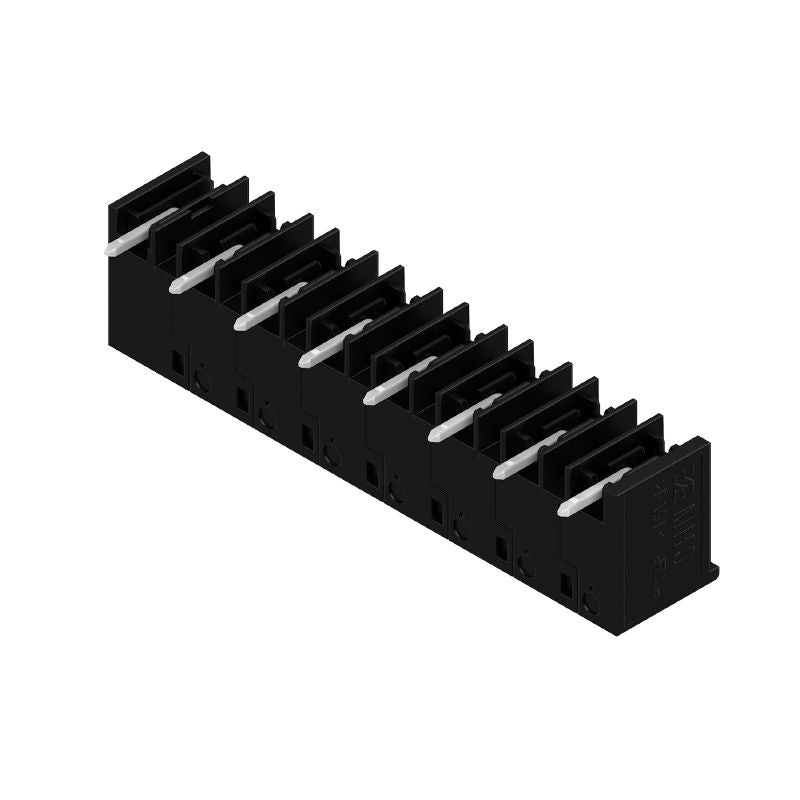

8000078313 - 7.5mm Male PCB Connector Accommodating 8 Poles (Pack of 9)
8000078313 - 7.5mm Male PCB Connector Accommodating 8 Poles (Pack of 9)
SKU: SKU: 8000078313 Download PDF
- 8000078313 - 7.5mm Male PCB Connector Accommodating 8 Poles (Pack of 9)
- 8000078313 - 7.5mm Male PCB Connector Accommodating 8 Poles (Pack of 9)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the MHS 7S/08 H T3 B T PCB plug-in connector, a robust solution featuring a male header with THT/THR solder connection With a 750 mm pitch and eight poles, this connector is intended for 90° tube mounting It adheres to both RoHS and UL standards, boasting a cURus certification number E60693 Engineered for efficiency, it accommodates IEC ratings of up to 1000 V and 304 A, as well as UL ratings of 300 V and 18.
5 A Conveniently packaged in tube format, this product is ready for your next project.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•90° outgoing elbow design.
•Operating temperature range from -50 °C to 125 °C.
•Certified for international recognized standards and norms.
•Solder pins are easy to attach with a length of 3.2 mm.
Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 58.9 mm |
| Net weight | 8.264 g |
| Pitch in mm | 7.5 mm |
| Solder pin dimensions | 1.0 x 1.0 mm |
| Solder eyelet hole diameter | 1.4 mm |
| Protection degree | IP20 |
| Plugging cycles | ≥ 25 |
| Rated current (IEC) | 30.4 A |
| Rated voltage (IEC) | 1000 V |
| Rated current (UL) | 18.5 A |
| Rated voltage (UL) | 300 V |
| Temperature range (Storage) | -25 °C to 55 °C |
| Moisture Level (MSL) | 1 |
| Insulating material | PA 9T |
