Description:
Discover the reliability of this PCB plug-in connector, equipped with a female plug designed with a 750 mm pitch and capable of supporting three poles Engineered to adhere to IEC standards, it effectively manages voltages up to 1000 V and currents of 346 A Additionally, it meets UL specifications for 600 V and 185 A The connector facilitates easy field connections using a snap-in mechanism, which features a lever for effortless operation.
Crafted to align with international quality standards, this product guarantees dependable performance for your electrical connections.
Features and Benefits:
•Compliant with RoHS and REACH regulations.

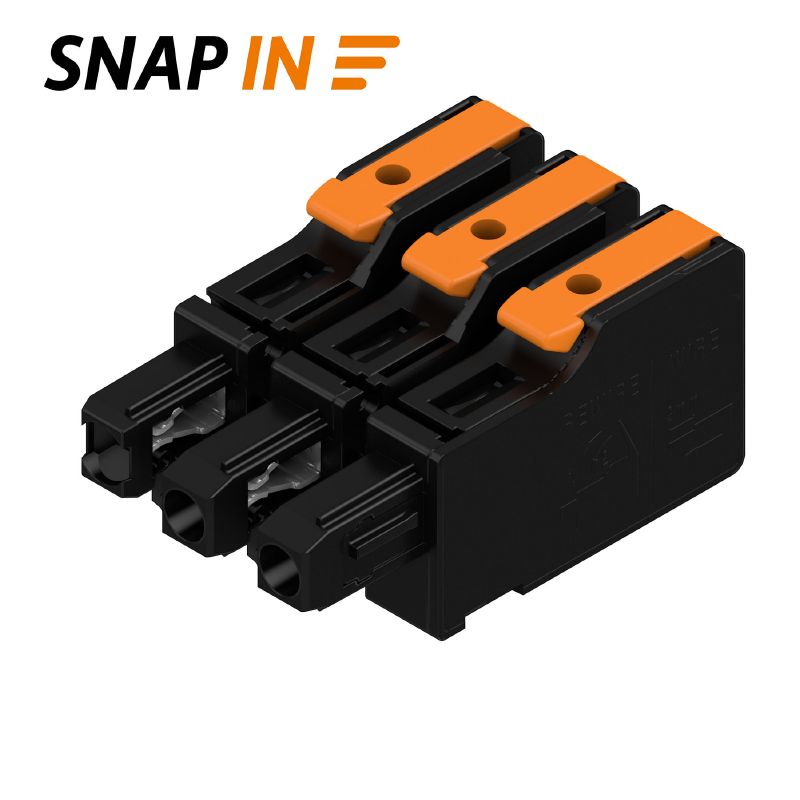

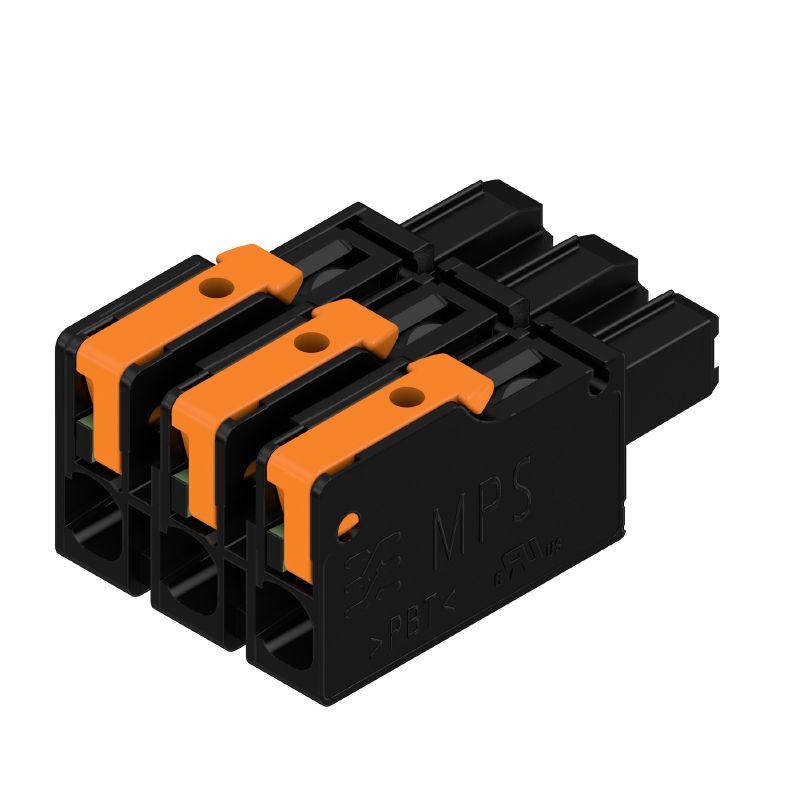

•Connection method includes a snap-in lever for secure installation.
•Touch-safe design according to DIN standards.
•IP20 protection degree for safe use.
•Robust insulating material to enhance safety and longevity.
Specifications:

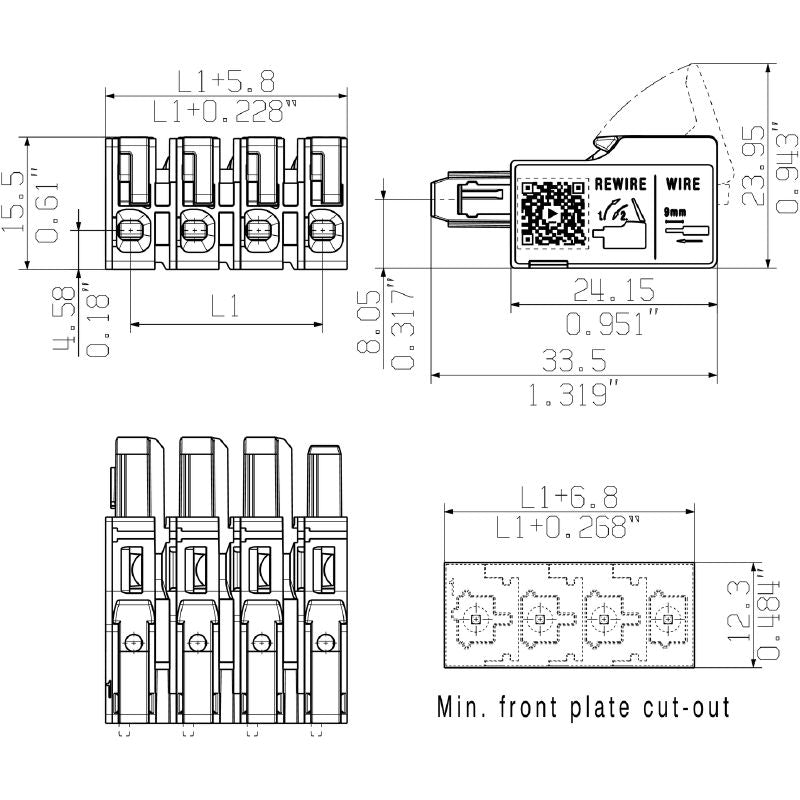

| Depth | 34.95 mm |
| Height | 15.5 mm |
| Width | 20.8 mm |
| Ambient temperature | -50 °C to 125 °C |
| Insulating material | PBT GF |

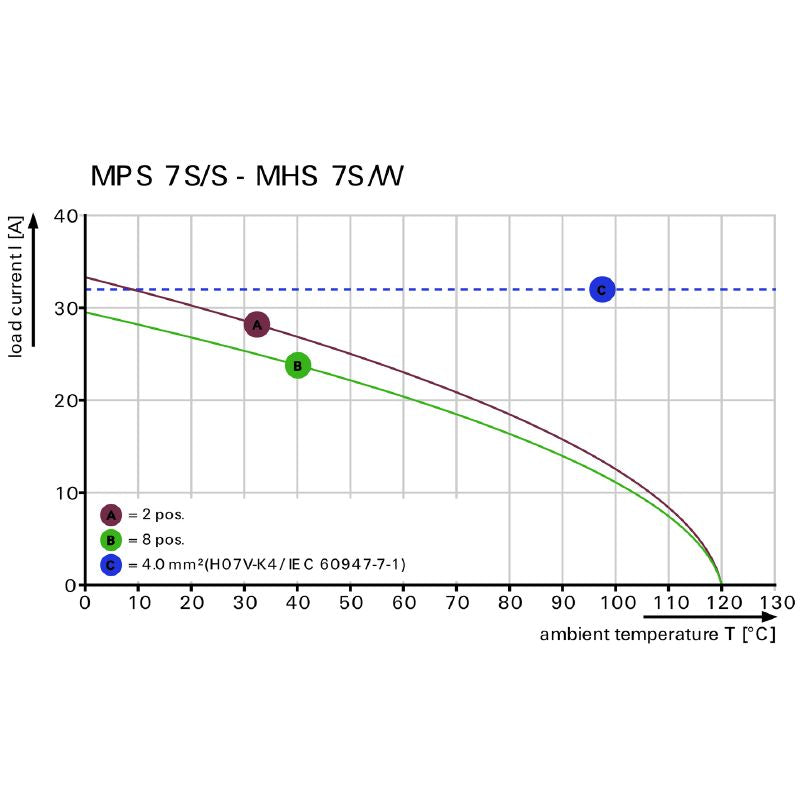

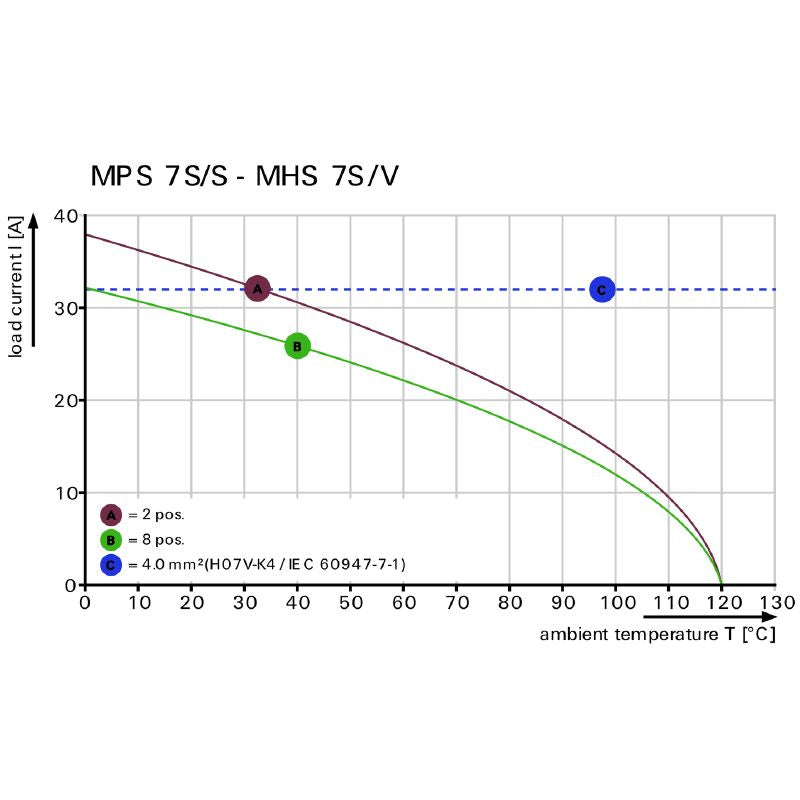

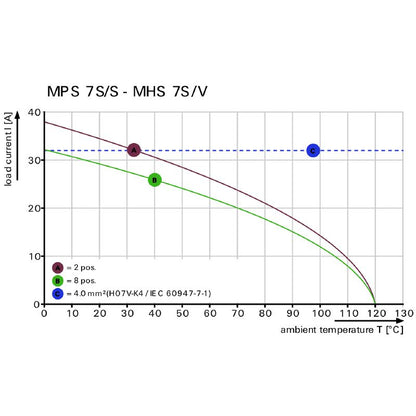

| Rated current, max | 34.6 A |
| Rated voltage | 1000 V |
| Protection degree | IP20 |
| Pitch | 7.5 mm |
| Number of poles | 3 |
