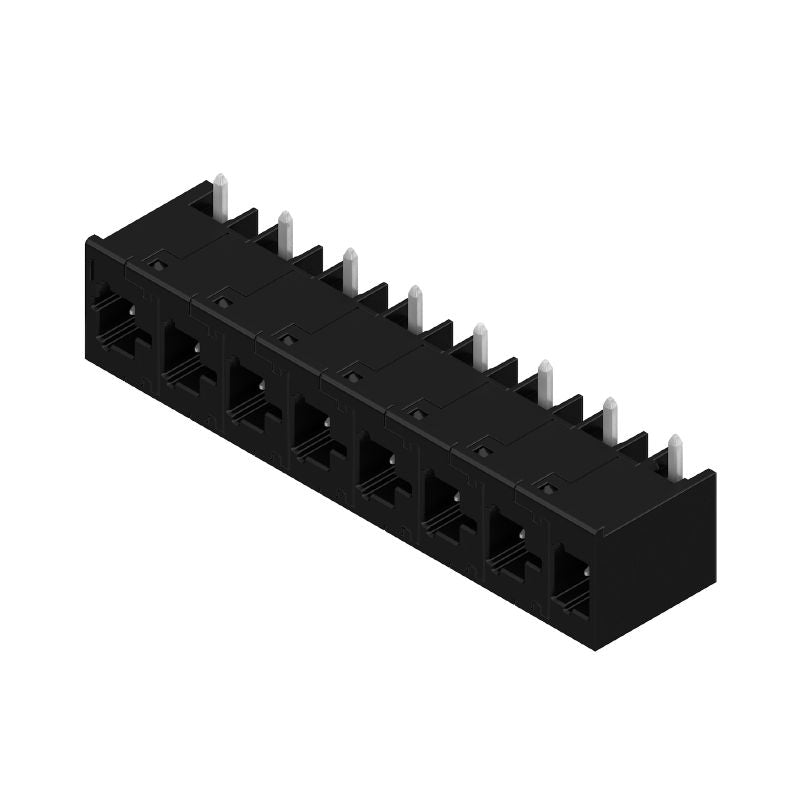

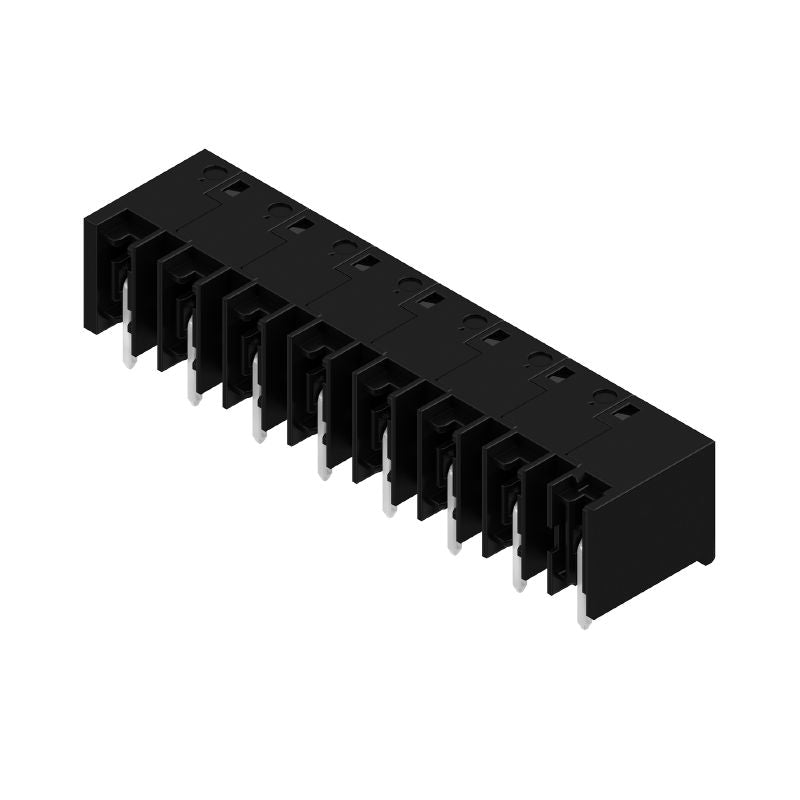

8000078327 - 7.5mm Pitch Male PCB Connector, 8 Poles, 1000V Rating (Pack of 9)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a premium male header connector, specifically engineered for PCB applications, featuring a reliable through-hole solder connection This connector boasts a 750 mm pitch and accommodates 8 poles set at a thoughtful 270-degree angle Conveniently packaged in a sturdy tube, it adheres to essential standards including ROHS and UL compliance Designed to support high electrical ratings, it can handle up to 1000 V and a maximum current of 30.

4 A The connector measures 589 mm in width, 14 mm in height, and 14 mm in depth, constructed from robust materials that endure temperatures ranging from -50 °C to 125 °C Perfect for your electronic projects, this connector combines functionality with dependable performance.

Features and Benefits:

•Package comes in a tube.

•RoHS compliant.

•Solder connection type for versatile mounting.

•Rated current up to 30.4 A.

•Works well in a temperature range of -50 °C to 125 °C.

•Designed for high voltage applications up to 1000 V.

Specifications:
