Description:
Introducing a premium female PCB plug-in connector with a compact pitch of 75 mm and a configuration of 6 poles This connector is built to support a voltage rating of 1000 V and can accommodate currents up to 346 A for wire cross-sections ranging from 05 to 4 mm², in compliance with IEC standards Additionally, it meets UL specifications with a capacity of 185 A for wire gauges from AWG 20 to AWG 12.
Each box contains 42 connectors, making it an excellent choice for various electrical applications.
Features and Benefits:
•RoHS compliant.

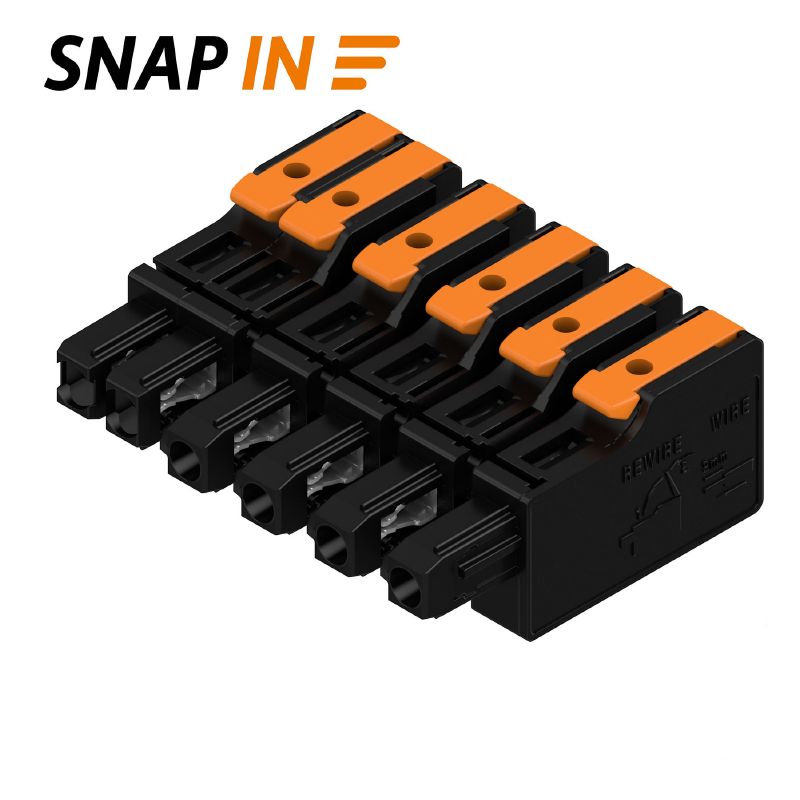

•Snap-in connection with lever.
•Touch-safe protection according to DIN VDE.
•Rated for ambient temperatures between -50 °C and 125 °C.
Specifications:
| Number of poles | 6 |
| Pitch | 7.5 mm |
| Depth | 34.95 mm |
| Height | 15.5 mm |
| Rated current (Tu=20°C) | 34.6 A |
| Rated voltage | 1000 V |
| Clamping range | 0.34 mm² to 4 mm² |
| Operating temperature (min) | -50 °C |
| Operating temperature (max) | 125 °C |
| Storage temperature (min) | -25 °C |
| Storage temperature (max) | 55 °C |
