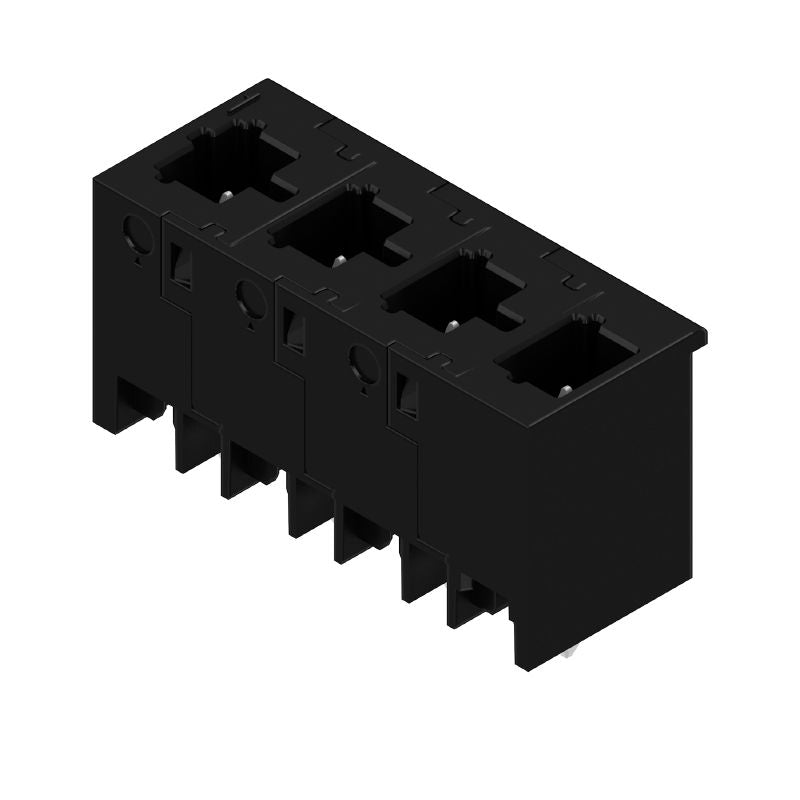

8000078316 - 7.5mm Male Header PCB Connector, 4 Poles, 180° Elbow (Pack of 19)
8000078316 - 7.5mm Male Header PCB Connector, 4 Poles, 180° Elbow (Pack of 19)
SKU: SKU: 8000078316 Download PDF
- 8000078316 - 7.5mm Male Header PCB Connector, 4 Poles, 180° Elbow (Pack of 19)
- 8000078316 - 7.5mm Male Header PCB Connector, 4 Poles, 180° Elbow (Pack of 19)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Elevate your connections with this durable PCB plug-in connector, designed with a male header and featuring a round solder connection that easily fits through holes With a pitch measurement of 750 mm and accommodating 4 poles, it also includes a practical 180° outgoing elbow for added versatility Certified for RoHS compliance and adhering to various safety standards, this connector is ideal for applications requiring up to 1000 V of voltage and can handle a substantial current of up to 34.
6 A.
Features and Benefits:
•Compliant with RoHS standards without exemptions.
•Tube packaging for convenient delivery.
•Easy board connection using THT/THR solder.
•Insulating material is made of PA 9T, rated for fire resistance (UL 94 V-0).
•Offers a protection degree of IP20.

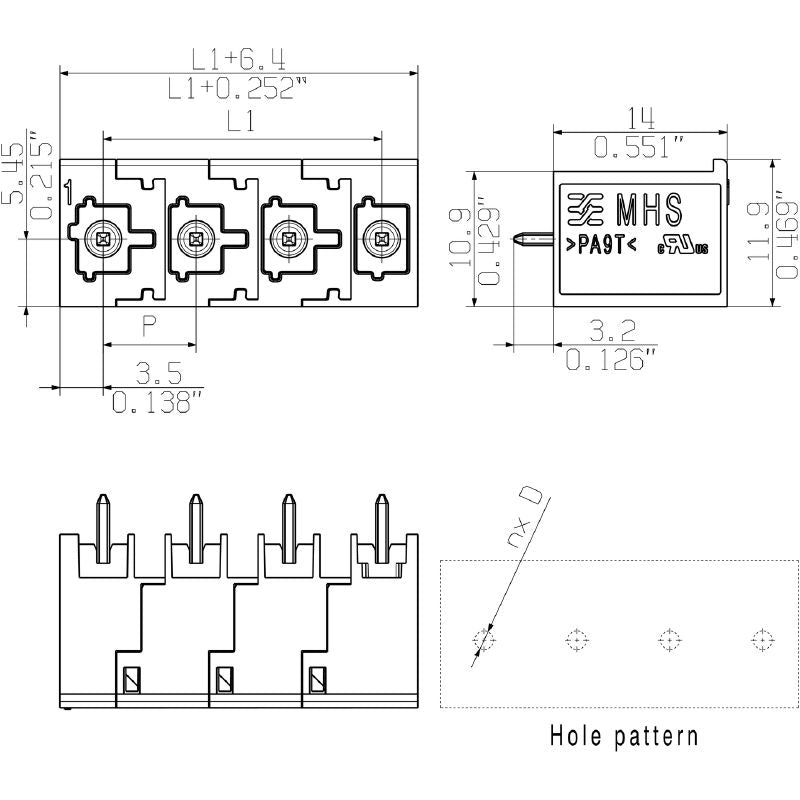

Specifications:
| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 28.9 mm |
| Operating temperature | -50 °C to 125 °C |
| Solder pin dimensions | 1.0 x 1.0 mm |
| Solder eyelet hole diameter | 1.4 mm |
| Rated current (IEC) | 34.6 A |
| Rated voltage (IEC) | 1000 V |
| Rated current (UL) | 18.5 A |
| Rated voltage (UL) | 300 V |
| Number of poles | 4 |
| Plugging cycles | ≥ 25 |
| Insulating material | PA 9T |
| Contact base material | CuMg |
| Contact material | Cu-alloy |
| Rated data acc. to IEC | tested acc. to standard IEC 60664-1 and IEC 61984 |
