8000078356 - 7.50mm Female PCB Connector, 5 Pole, UL Approved (Pack of 48)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

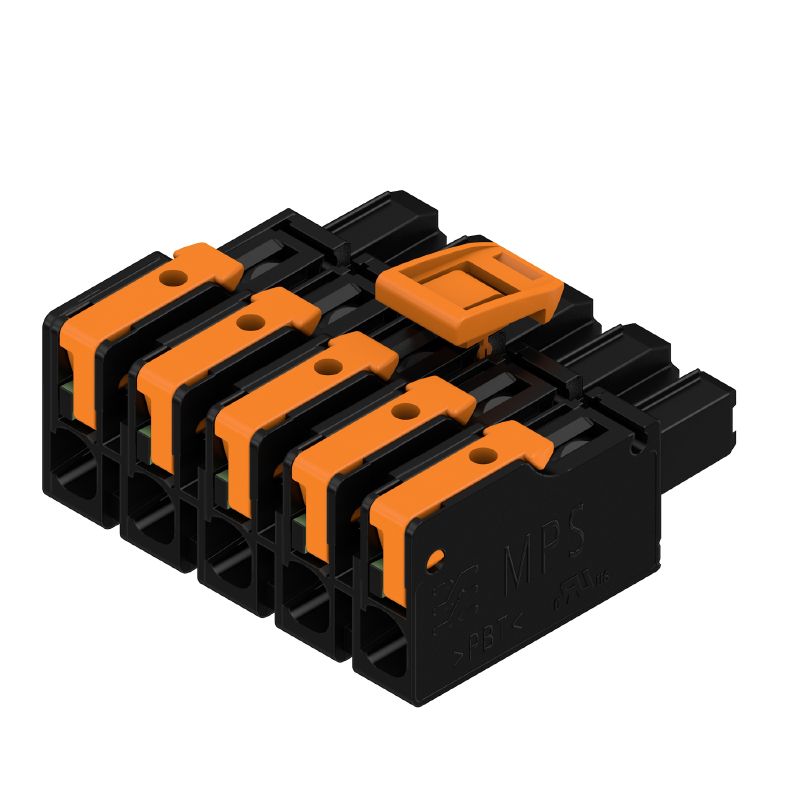

Introducing the MPS 7S/05 S F3 TN B B PCB plug-in connector, an expertly crafted female connector with a 750 mm pitch, designed to accommodate five poles This connector adheres to RoHS regulations and comes with UL certification, referenced under E60693 It boasts an impressive voltage rating of 1000 V, along with a maximum current handling capacity of 346 A, in accordance with IEC guidelines For AWG 20-12 connections, the UL specifications permit up to 600 V and a maximum current of 18.

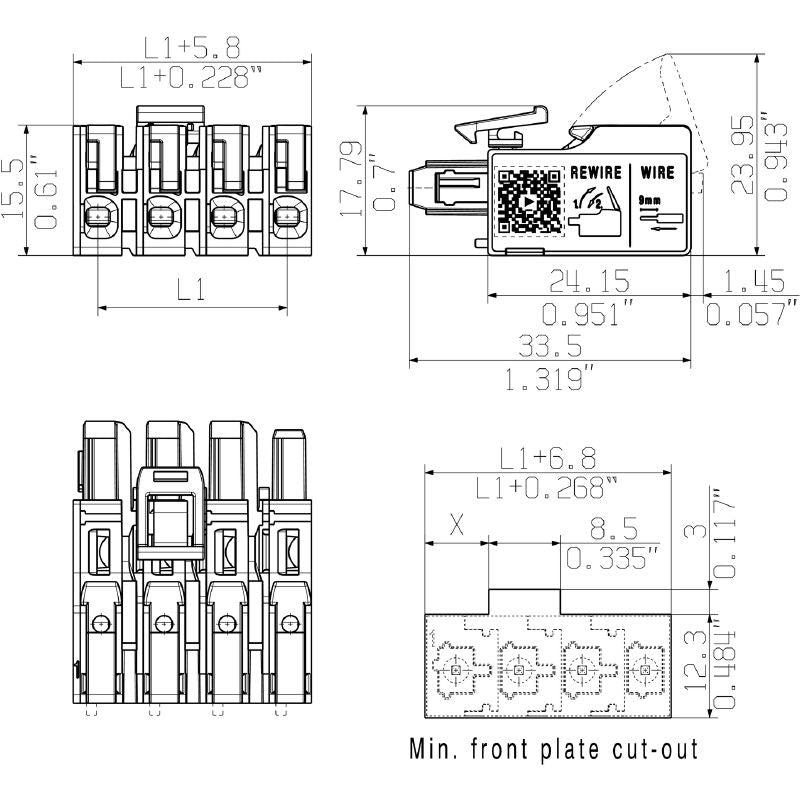

5 A The connector dimensions ensure a precise fit, measuring 3495 mm in depth, 175 mm in height, and 358 mm in width, with a net weight of 16482 g It operates efficiently across a wide temperature range from -50 °C to 125 °C, and features a 9 mm stripping length, making it versatile for various applications.

Features and Benefits:

•Approvals include RoHS and UL certification.

•Touch-safe protection according to relevant standards.

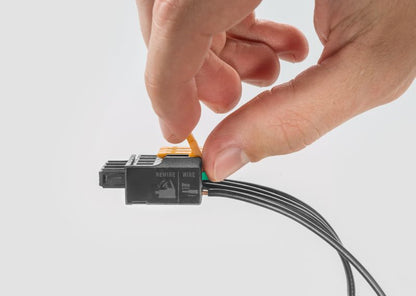

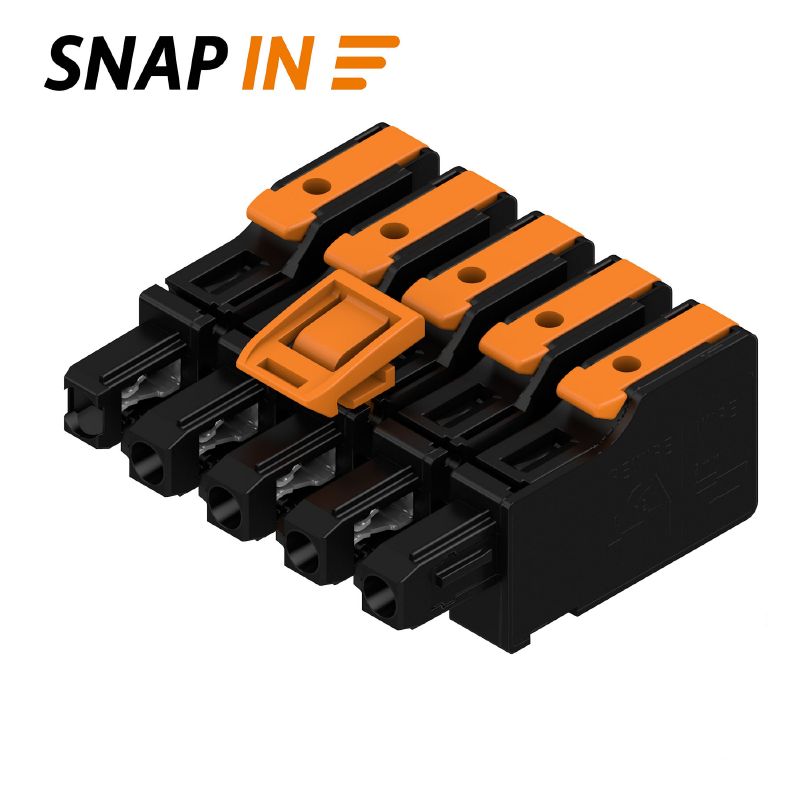

•SNAP IN wire connection methodology.

•Low profile design suitable for various applications.

Specifications:
