8000078347 - 7.5mm Pitch 5-Pole Female PCB Connector, RoHS Compliant (Pack of 60)
8000078347 - 7.5mm Pitch 5-Pole Female PCB Connector, RoHS Compliant (Pack of 60)
SKU: SKU: 8000078347 Download PDF
- 8000078347 - 7.5mm Pitch 5-Pole Female PCB Connector, RoHS Compliant (Pack of 60)
- 8000078347 - 7.5mm Pitch 5-Pole Female PCB Connector, RoHS Compliant (Pack of 60)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

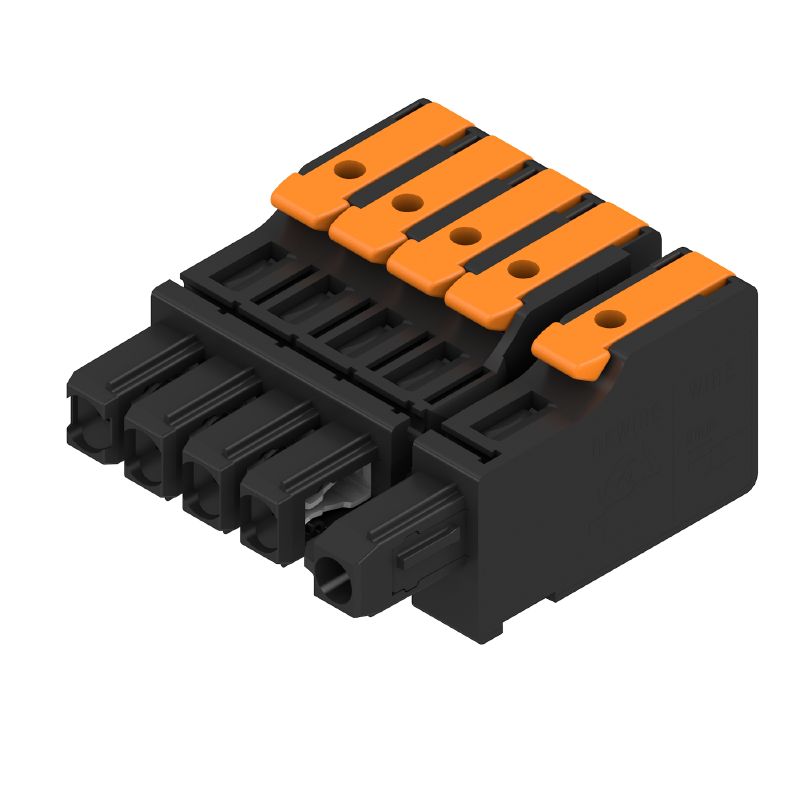

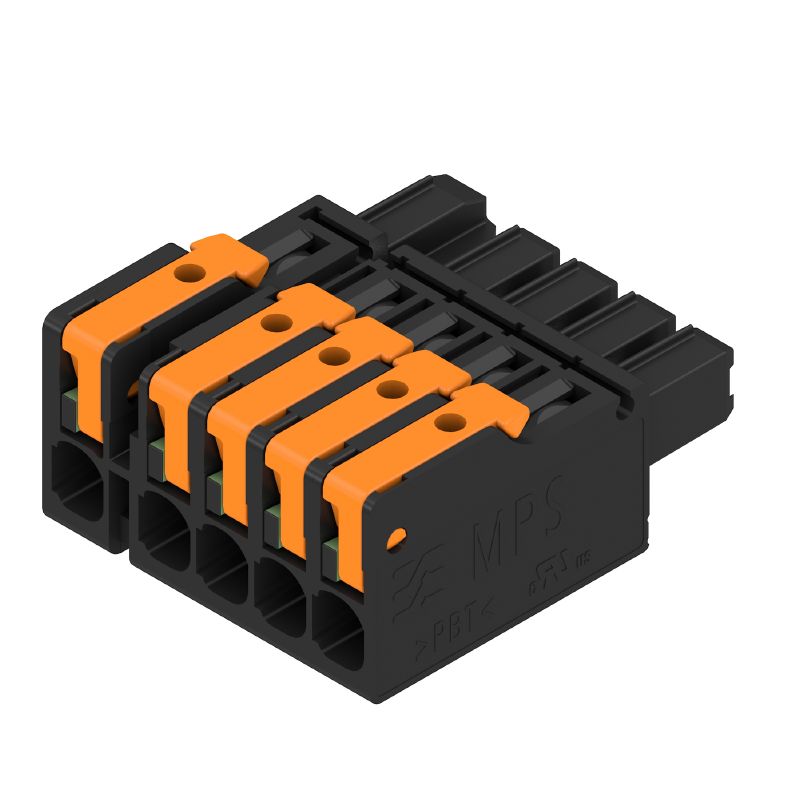

Introducing the MPS 7S/02-5/03 S TN B B, a reliable female plug PCB connector with a 75 mm pitch and five pins This connector meets IEC standards for voltages up to 1000 V and currents of 346 A, while also fulfilling UL certification requirements for 185 A across various wire sizes It is RoHS compliant, ensuring it meets environmental safety standards Each purchase includes 60 pieces, making it an excellent choice for bulk applications.
Features and Benefits:
•Compliant with RoHS regulations.
•Accessible UL certificate provides additional confidence.
•User-friendly snap-in connection method.
•Ranges of conductor cross-sections accommodated.
Specifications:
| Depth | 34.95 mm |
| Height | 15.5 mm |
| Operating temperature range | -50 °C to 125 °C |
| Rated voltage | 1000 V |
| Rated current | 34.6 A |
| Wire connection cross section | AWG 20 - AWG 12 |
| Insulating material | PBT GF |
| Contact material | Cu-alloy |
| Stripping length | 9 mm |
| IP protection | IP 20 |
| Plugging cycles | ≥ 25 |
