8000078332 - 6-Pole PCB Connector, 7.5mm Pitch, Rated 34.6A at 1000V (Pack of 42)
8000078332 - 6-Pole PCB Connector, 7.5mm Pitch, Rated 34.6A at 1000V (Pack of 42)
SKU: SKU: 8000078332 Download PDF
- 8000078332 - 6-Pole PCB Connector, 7.5mm Pitch, Rated 34.6A at 1000V (Pack of 42)
- 8000078332 - 6-Pole PCB Connector, 7.5mm Pitch, Rated 34.6A at 1000V (Pack of 42)
Couldn't load pickup availability
Description:

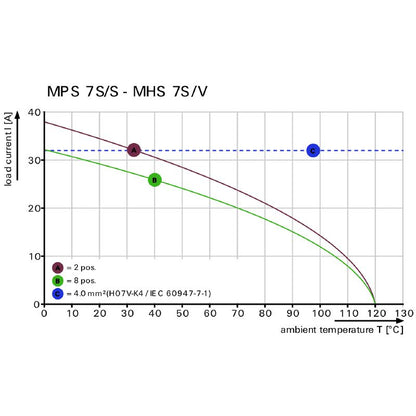

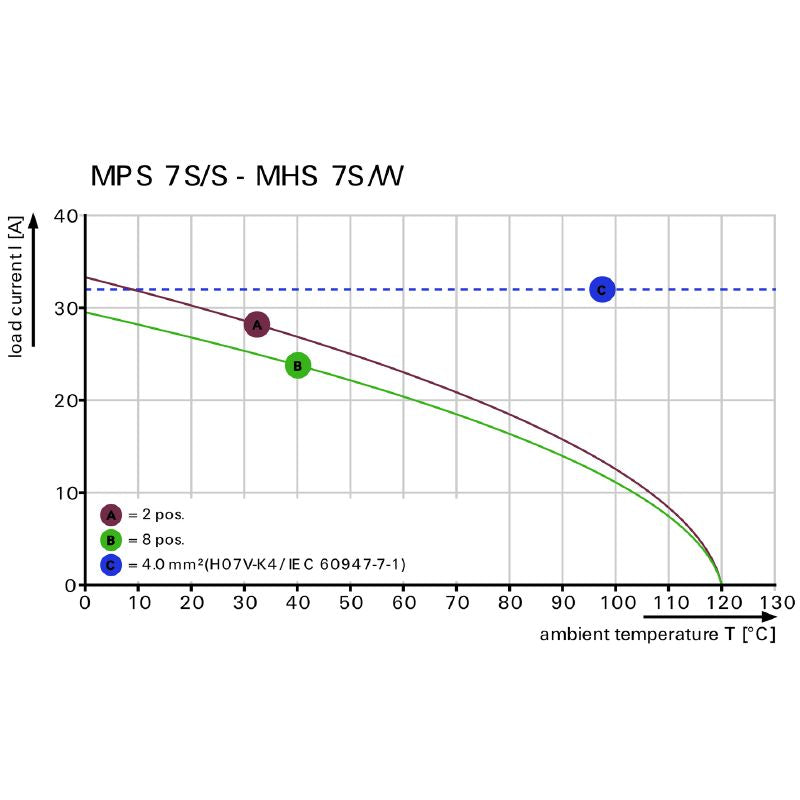

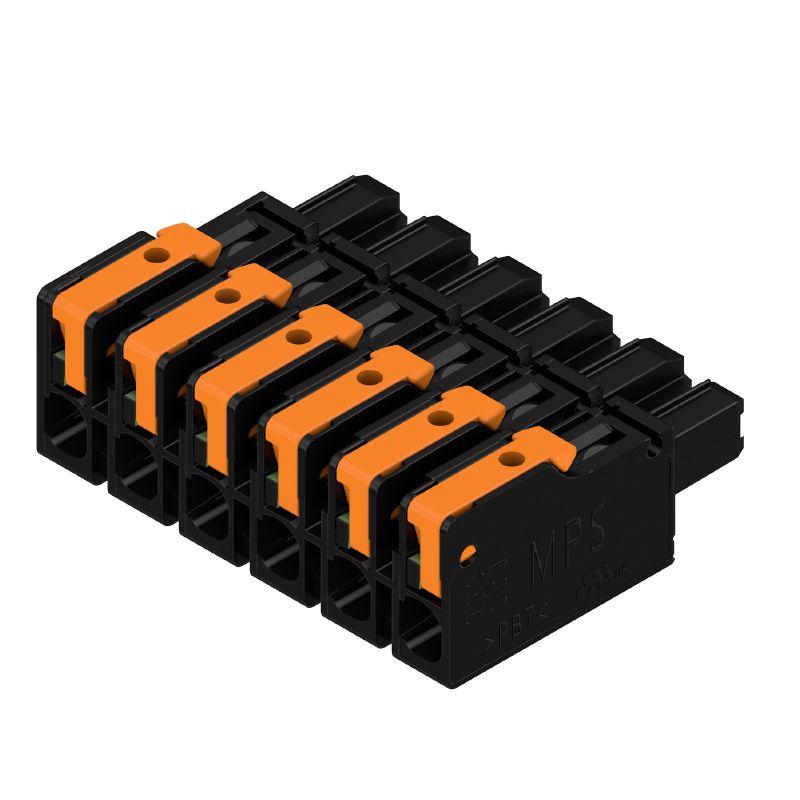

Introducing the MPS 7S/06 S TN B B female PCB plug-in connector, crafted for reliability and performance With a pitch of 75 mm and a capacity for 6 poles, this connector is engineered to handle significant operational currents—boasting a maximum rating of 346 A at 1000 V in accordance with IEC standards It accommodates wire sizes ranging from 05 to 4 mm², or AWG 20 to AWG 12 as classified by UL Additionally, this connector meets RoHS environmental standards and operates effectively within a broad temperature spectrum of -50 °C to 125 °C, making it a robust choice for various applications.
Features and Benefits:

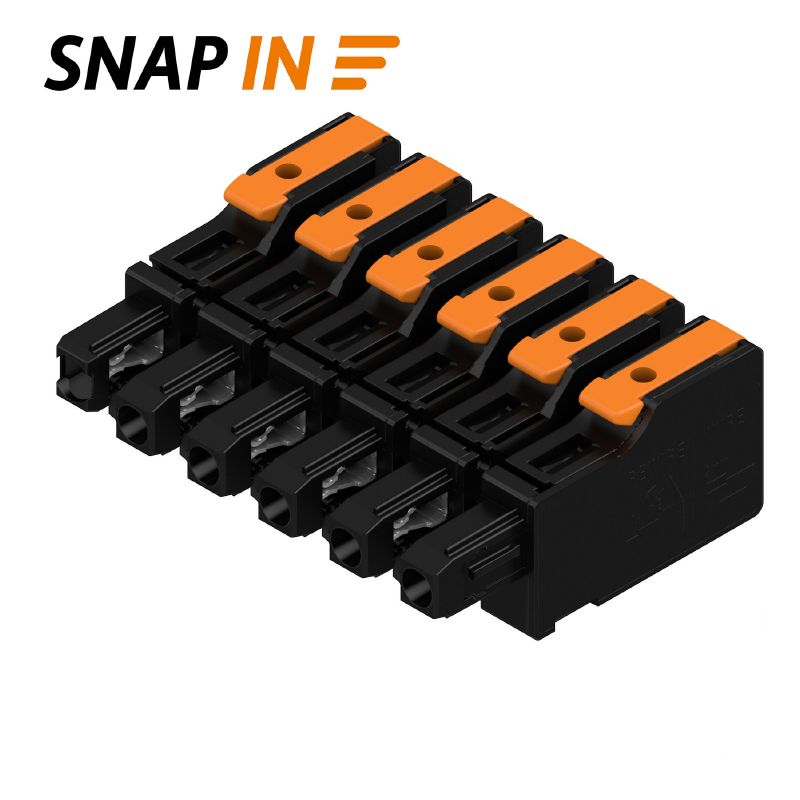

•Snap-in connection with lever for easy installation.
•Touch-safe protection ensuring safety from finger contact.
•Compliant with IPC-A-610 Class 2 for assembly standards.
•Compliant with RoHS and REACH regulations.
•Maximum plugging cycles rated at 25.
Specifications:

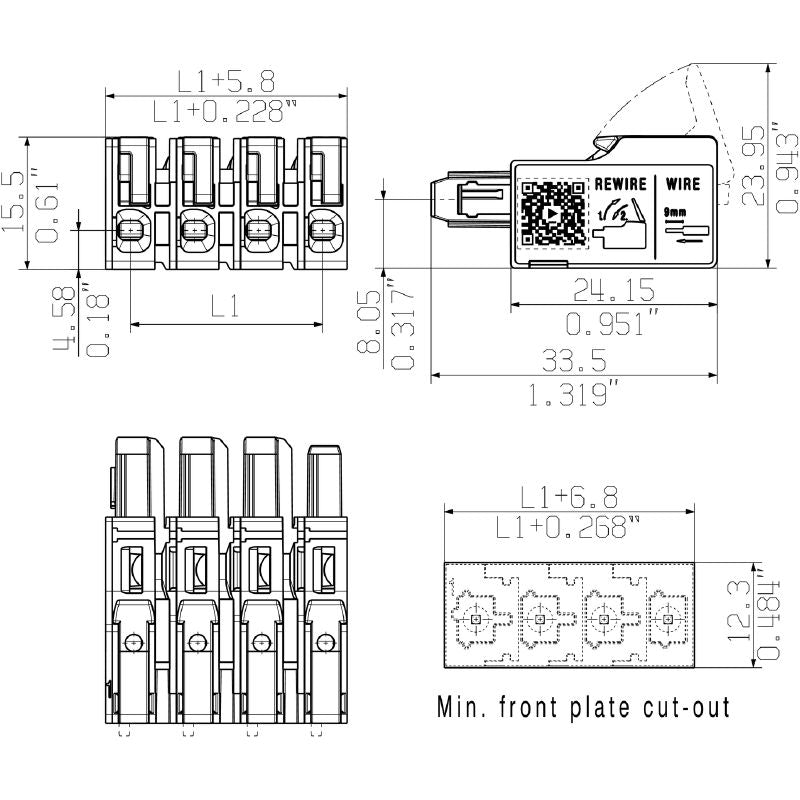

| Dimensions (mm) | 43.3 mm (W) x 34.95 mm (D) x 15.5 mm (H) |
| Pitch | 7.5 mm |
| Rated voltage (IEC) | 1000 V |
| Rated current (IEC) | 34.6 A |
| IP Rating | IP20 |
| Material | PBT GF |
| Color | black |
| Operating temperature range | -50 °C to 125 °C |
| Storage temperature range | -25 °C to 55 °C |
| Clamping range | 0.5 mm² to 4 mm² |
| Plugging force/pole (max) | 9 N |
| Pulling force/pole (max) | 8 N |
| Insulation resistance | ≥ 600 (CTI) |
