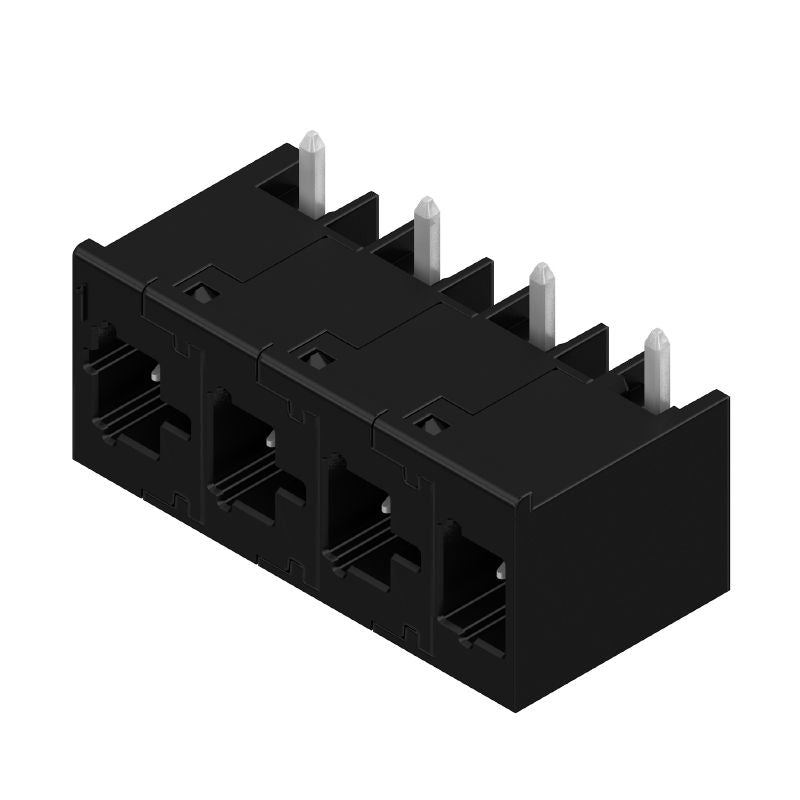

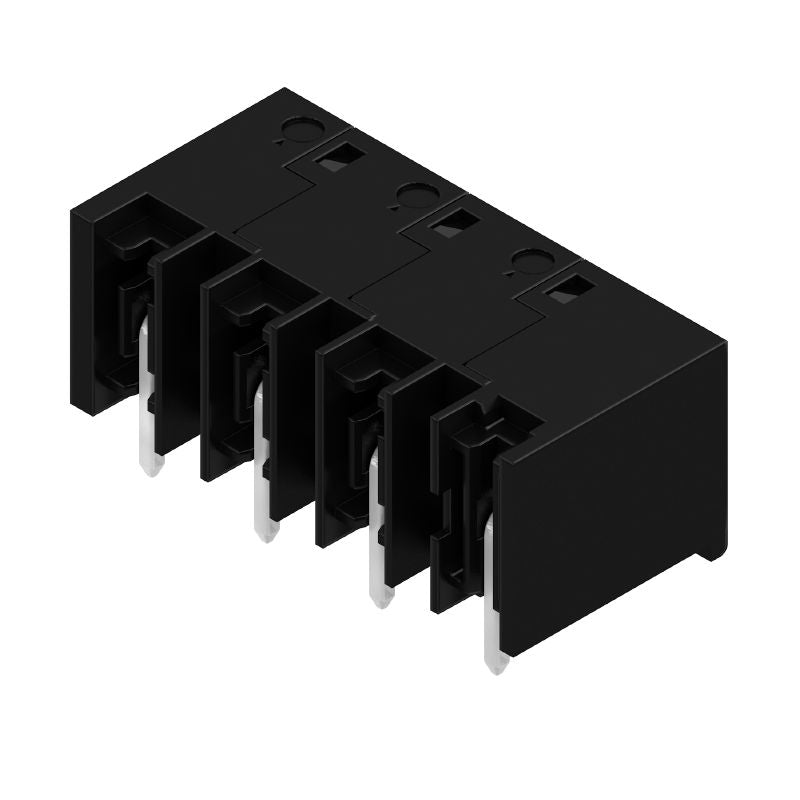

8000078323 - 7.50mm Male Plug-in PCB Connector with 4 Poles (Pack of 19)
8000078323 - 7.50mm Male Plug-in PCB Connector with 4 Poles (Pack of 19)
SKU: SKU: 8000078323 Download PDF
- 8000078323 - 7.50mm Male Plug-in PCB Connector with 4 Poles (Pack of 19)
- 8000078323 - 7.50mm Male Plug-in PCB Connector with 4 Poles (Pack of 19)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the MHS 7S/04 W T3 B T PCB plug-in connector, a reliable choice for your electronic projects This male header connector features a solder connection with THT/THR compatibility, allowing for easy installation With a pitch measurement of 750 mm and 4 poles arranged in a 270° outgoing elbow configuration, it is designed for versatile use Additionally, this connector meets RoHS compliance, making it suitable for a range of applications while adhering to environmental standards.
Features and Benefits:
•Designed for PCB connection.
•270° outgoing elbow for flexibility in installation.
•Rated current up to 30.4 A.
•Compliant with UL and IEC standards.
Specifications:
| IEC Voltage Rating | 1000 V / 30.4 A |
| UL Voltage Rating | 300 V / 18.5 A |

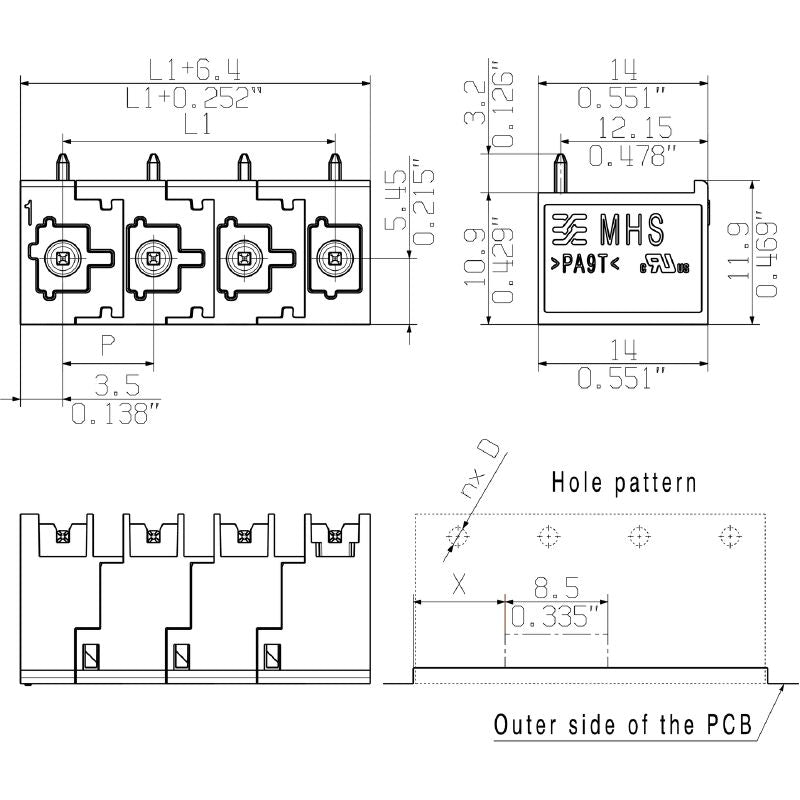

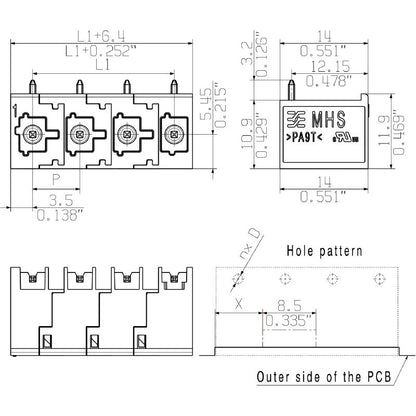

| Depth | 14 mm |
| Height | 14.1 mm |
| Width | 28.9 mm |
| Ambient Temperature | -50 °C…125 °C |
| Protection Degree | IP20 |
| Plugging Cycles | ≥ 25 |
| Material | PA 9T |
| Rated Current at 20°C | 30.4 A Max, 26.9 A Min |
| Rated Voltage for Pollution Degree II/2 | 1000 V |
