Description:

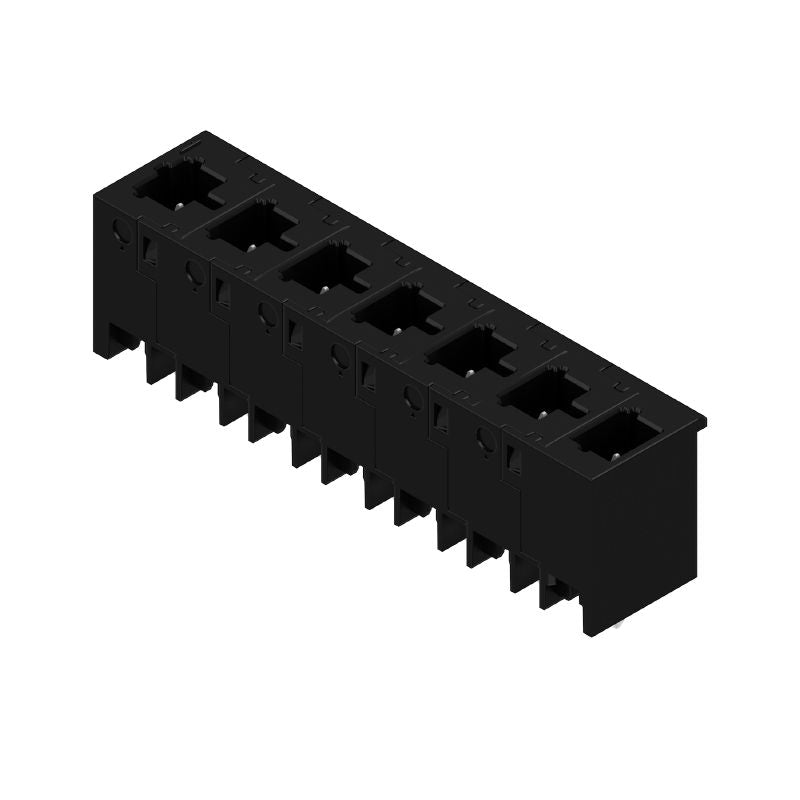

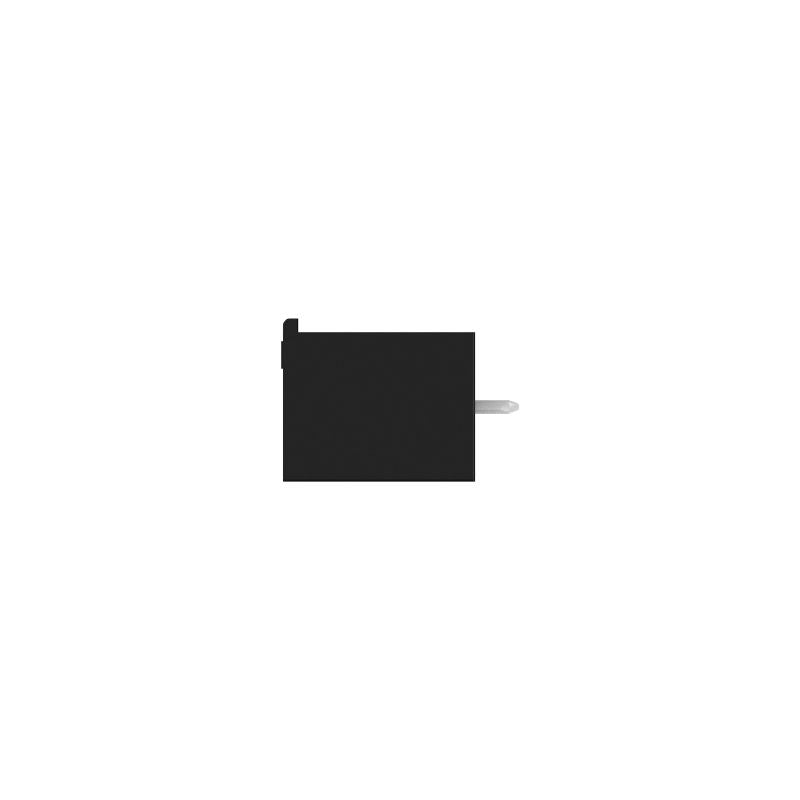

Introducing the MHS 7S/07 V T3 B T, a versatile PCB plug-in connector tailored for THT/THR solder applications This male header boasts a 750 mm pitch and features an arrangement of 7 poles at a 180° angle, conveniently supplied in tube packaging This connector meets stringent RoHS standards and has been rigorously tested in accordance with IEC 60664-1 Capable of handling high current ratings up to 34.
6 A and a voltage of 1000 V, it’s engineered to perform reliably With an impressive operating temperature range from -50 °C to +125 °C, it's suitable for diverse environments and applications.
Features and Benefits:
•Easy PCB mounting with THT/THR solder connections.
•High current and voltage ratings suitable for demanding applications.
•Compliant with international standards for reliability.
•Robust design with a minimum of 25 plugging cycles.
Specifications:
| Rated voltage (IEC) | 1000 V |
| Rated current (IEC) | 34.6 A |
| Pitch | 7.5 mm |
| Number of poles | 7 |
| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 51.4 mm |
| Net weight | 6.235 g |
| Temperature range | -50 °C to +125 °C |
| Protection degree | IP20 |
| Material | PA 9T |
| Insulating material group | I |
| Flammability rating | V-0 |
