8000078348 - 6-Pole 7.50mm PCB Connector, 1000V, RoHS Compliant (Pack of 48)
8000078348 - 6-Pole 7.50mm PCB Connector, 1000V, RoHS Compliant (Pack of 48)
SKU: SKU: 8000078348 Download PDF
- 8000078348 - 6-Pole 7.50mm PCB Connector, 1000V, RoHS Compliant (Pack of 48)
- 8000078348 - 6-Pole 7.50mm PCB Connector, 1000V, RoHS Compliant (Pack of 48)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

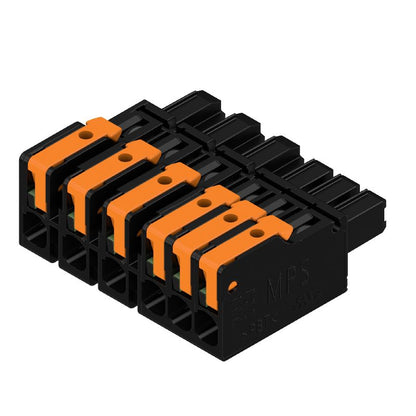

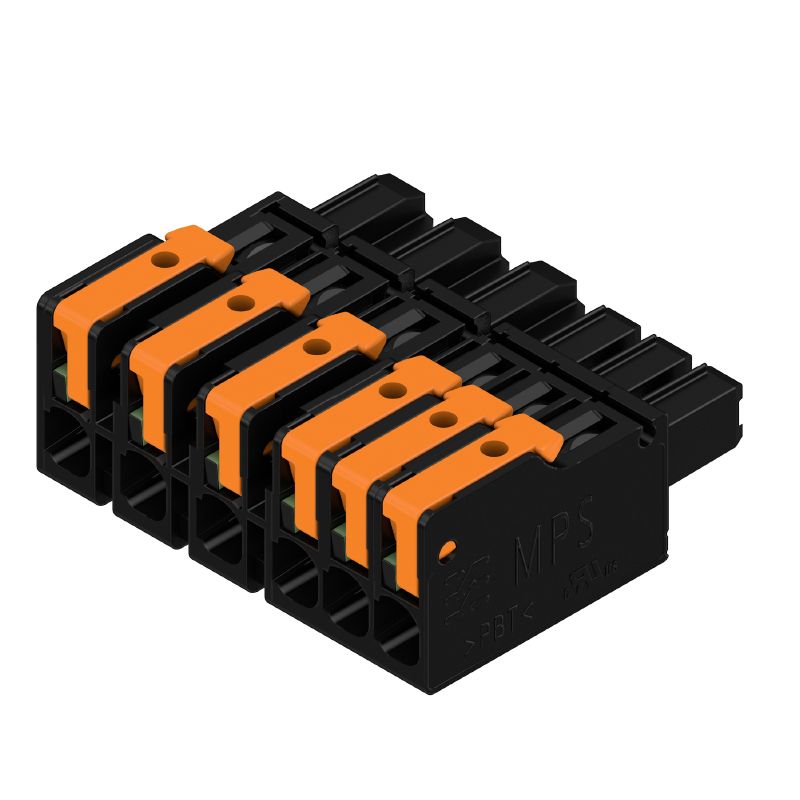

Discover the reliability of our PCB plug-in connector featuring a female plug design With a pitch of 750 mm, this connector supports six poles and is perfect for applications requiring a rated voltage of 1000 V and current handling of up to 346 A It accommodates wire sizes ranging from 05 to 4 mm², making it versatile for various projects This product is available in boxes of 48 to meet your needs Built to operate in extreme temperatures from -50 °C to 125 °C, it also meets RoHS material compliance and holds IEC approval for safety standards, ensuring quality and performance.
Features and Benefits:
•Compliant with RoHS standards.
•Supports ambient temperatures from -50 °C to 125 °C.

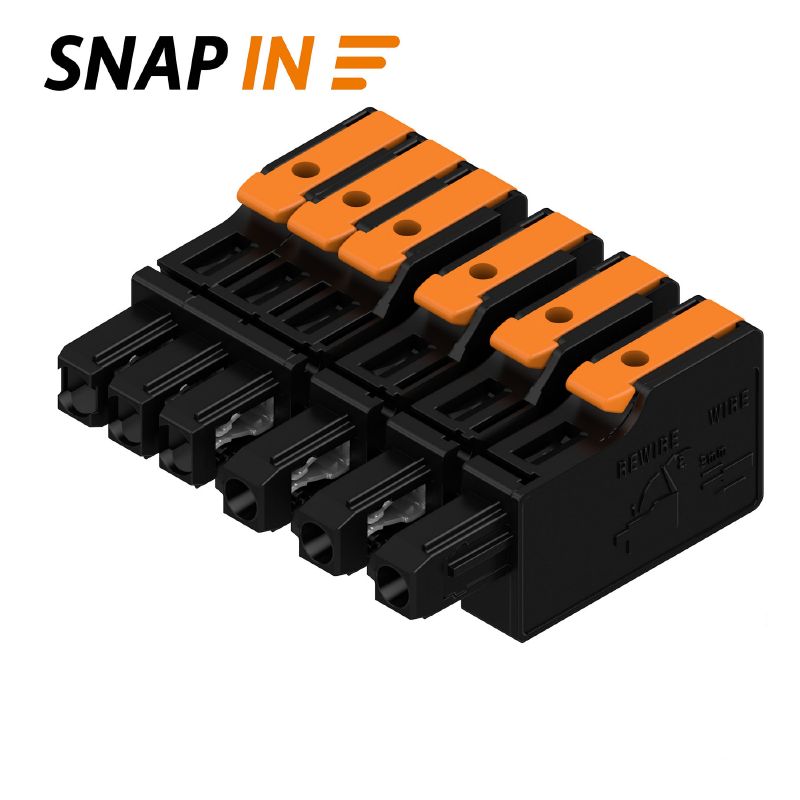

•Field connection with SNAP IN lever mechanism.
•Touch-safe protection according to DIN VDE standards.
•Rated to handle multiple clamping ranges for wire cross-sections.
Specifications:
| Pitch in mm | 7.5 mm |
| Number of poles | 6 |
| Rated voltage (IEC) | 1000 V |
| Rated current (IEC) | 34.6 A |
| Depth | 34.95 mm |
| Height | 15.5 mm |
| Touch-safe protection | IP 20 |
| Material | PBT GF |
| Approval Certificate No. | E60693 |
| Operating temperature min | -50 °C |
| Operating temperature max | 125 °C |
