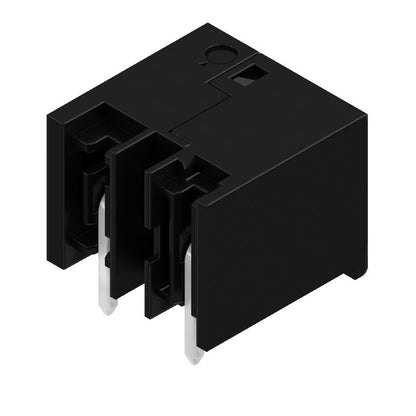

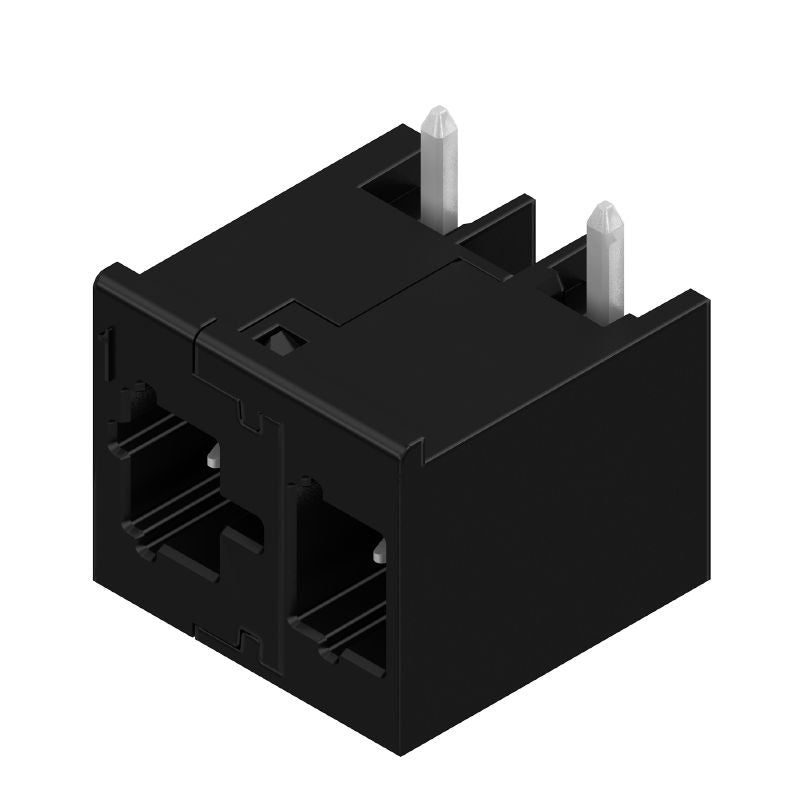

8000078321 - 7.50mm Male Header PCB Connector, 2 Poles at 270° (Pack of 39)
8000078321 - 7.50mm Male Header PCB Connector, 2 Poles at 270° (Pack of 39)
SKU: SKU: 8000078321 Download PDF
Select a Variant:
- 8000078321 - 7.50mm Male Header PCB Connector, 2 Poles at 270° (Pack of 39)
- 8000078321 - 7.50mm Male Header PCB Connector, 2 Poles at 270° (Pack of 39)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Introducing a male header PCB plug-in connector designed for seamless integration This connector features a reliable through-hole solder connection with a 750 mm pitch, comprising 2 poles arranged at a 270° angle for optimal performance Packaged in user-friendly tubes, this product meets RoHS and UL compliance standards, ensuring safety and reliability in your electronic applications.
Features and Benefits:
•Compliant without exemption to RoHS standards.
•Tube packaging for easy handling.
Specifications:
| IEC Rated Voltage | 1000 V |
| UL Rated Voltage | 300 V |
| Operating Temperature | -50 °C to 125 °C |
| Pitch | 7.5 mm |
| Number of Poles | 2 |
| Solder Pin Length | 3.2 mm |
| Pin Series Quantity | 1 |
| Protection Degree | IP20 |
| Plugging Cycles | ≥ 25 |
| Rated Current (20°C) | 30.4 A |
| Rated Voltage (Use group B / UL 1059) | 300 V |
| Net Weight | 2.096 g |
