Description:

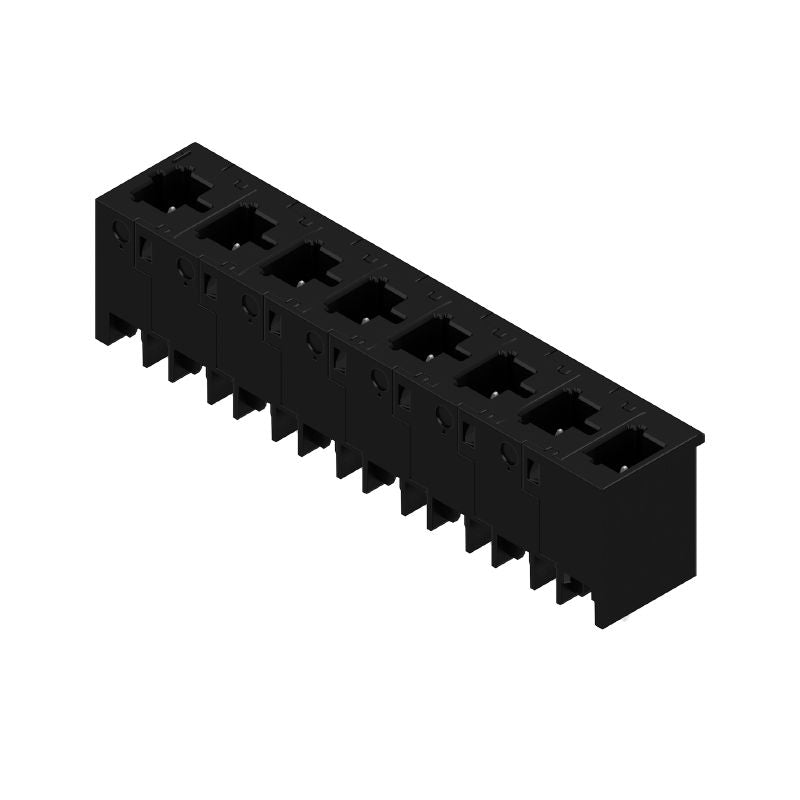

Explore the versatility of this male header PCB plug-in connector, expertly crafted for THT and THR solder connections With a pitch of 750 mm and 8 poles, it offers a 180° connection configuration This connector adheres to IEC ratings of up to 1000 V and 346 A, while also complying with UL ratings for a maximum of 300 V and 185 A at the connection points It comes in convenient tube packaging, making it a reliable choice for your electronic assembly needs.
Features and Benefits:
•Compliant with RoHS without exemption.
•Insulating material of PA 9T.
•Meets IP20 protection degree.
•Plugging cycles of at least 25.
•Can handle ambient temperatures from -50 °C to 125 °C.
•Compliant with IPC-A-610 Class 2 standards.
Specifications:
| Pitch in mm (P) | 7.5 |
| Number of poles | 8 |
| Solder pin length (l) | 3.2 mm |
| Rated voltage for surge voltage class / pollution degree II/2 | 1000 V |
| Rated current | 34.6 A |

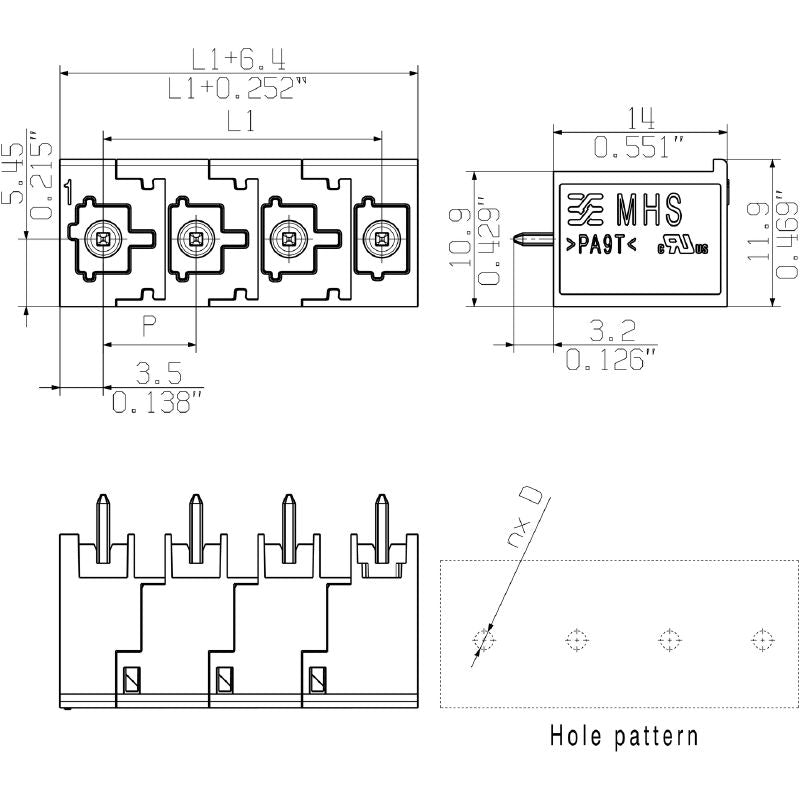

| Dimensions | {'Depth': '11.9 mm', 'Height': '17.2 mm', 'Width': '58.9 mm'} |
| Storing temperatures | -25 °C to 55 °C |
| Moisture Level (MSL) | 1 |
| UL voltage rating | 300 V |
