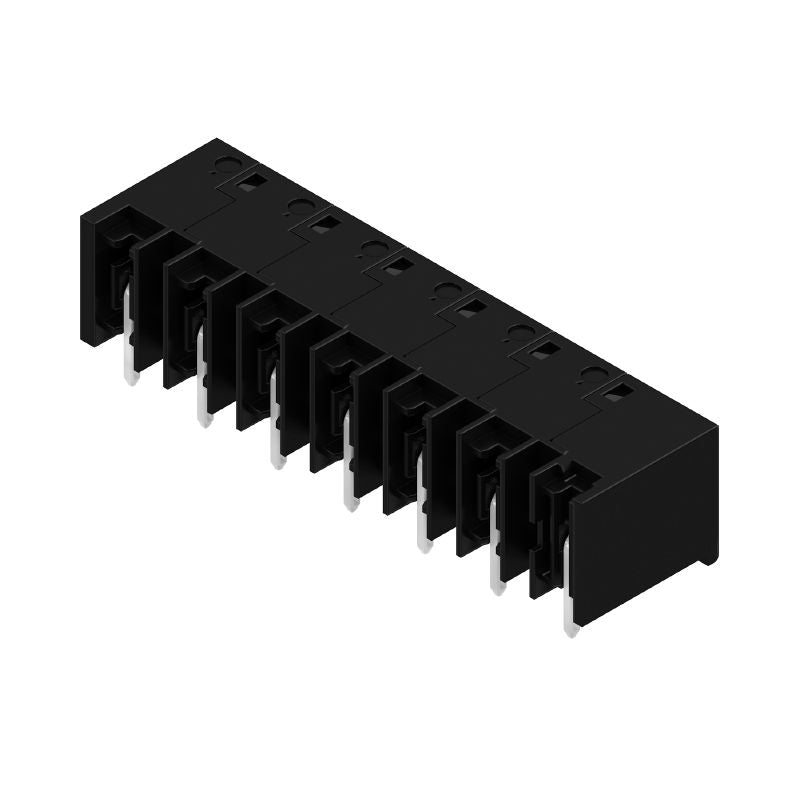

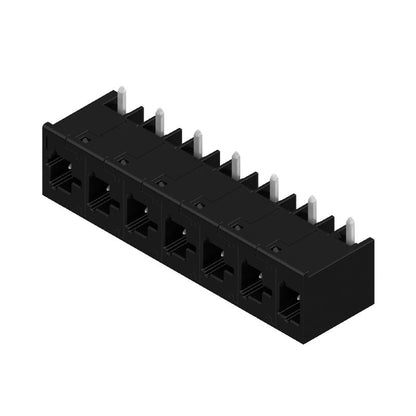

8000078326 - 7-Pole PCB Connector, 51.4mm, 1000V, THT/THR Solder (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

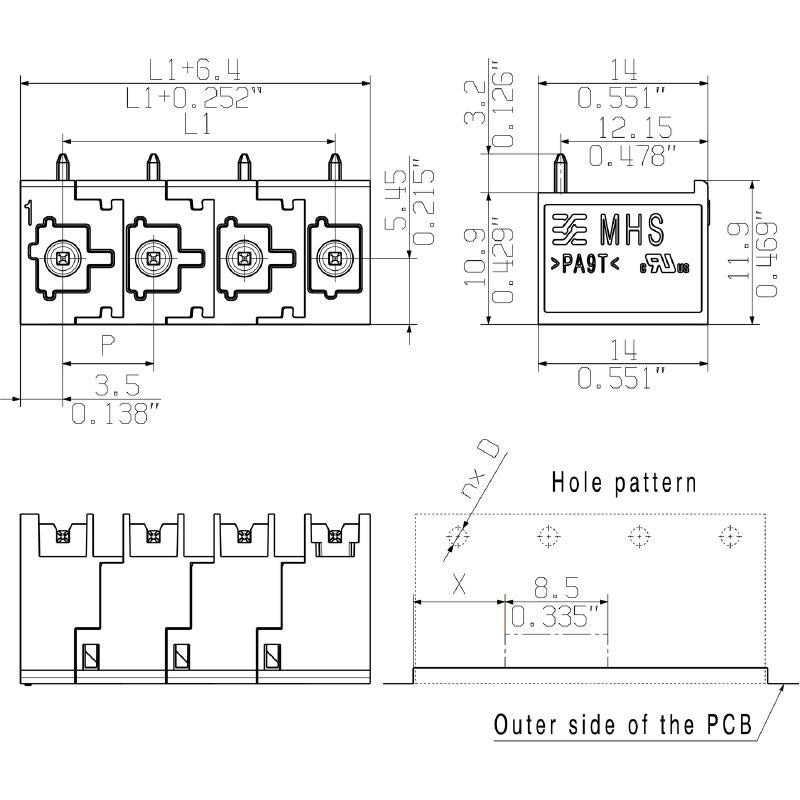

Discover this premium male header PCB plug-in connector, specifically crafted for THT/THR solder connections With a pitch of 750 mm and a 270° angled arrangement featuring 7 poles, this component effortlessly meets your connectivity needs Measuring 514 mm in width, 141 mm in height, and 14 mm in depth, it’s designed for reliable performance This connector adheres to IEC standards, supporting up to 1000 V and a maximum current of 30.

4 A, while also complying with UL standards for 300 V and 185 A It’s constructed from PA 9T insulating material in a sleek black color that matches RAL 9011 Suitable for a wide temperature range from -50 °C to 125 °C, it promises versatility in various applications Each unit comes conveniently packaged in a tube for easy handling and storage.

Features and Benefits:

•Has a plugging cycle durability of at least 25 times.

•Compliant with RoHS and REACH regulations.

•Insulating material with a Comparative Tracking Index (CTI) of ≥ 600.

Specifications:
