Description:

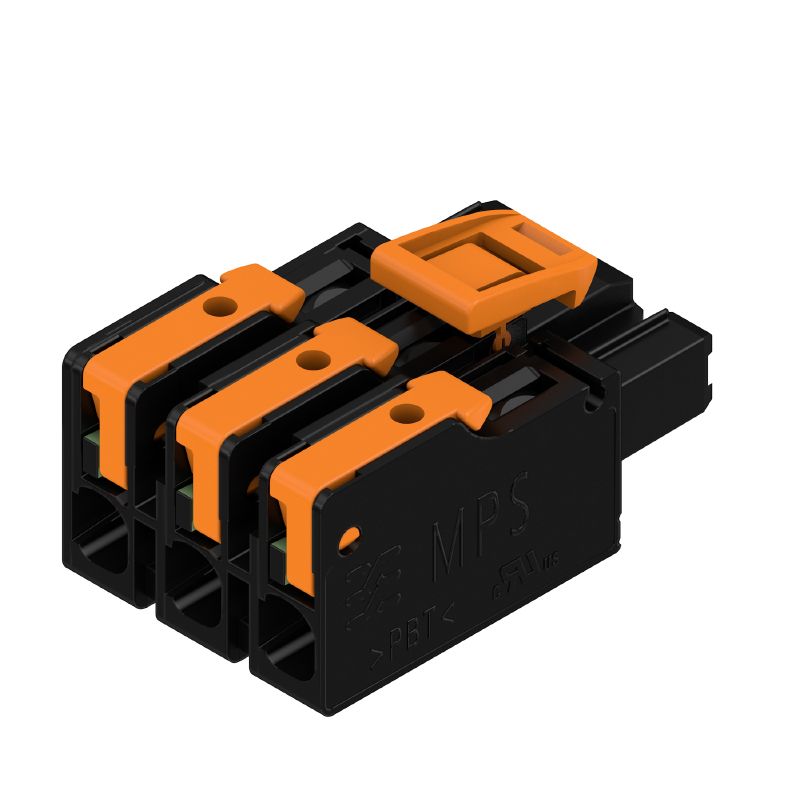

Introducing a reliable female plug-in connector tailored for PCB applications This connector boasts a 750 mm pitch and is designed to accommodate three poles, making it versatile for various setups With IEC ratings reaching up to 1000 V and a maximum current of 346 A, it meets demanding electrical requirements For UL compliance, it operates efficiently at 600 V with a current capacity of 185 A The wire connection range is versatile, accommodating sizes from 0.
5 to 4 mm² This RoHS-compliant connector is conveniently packaged in a box for easy storage and handling It features compact dimensions of 3495 mm in depth, 208 mm in width, and 175 mm in height, with a lightweight design at just 9858 g Suitable for a wide temperature range, it operates effectively from -50 °C to 125 °C.
Features and Benefits:

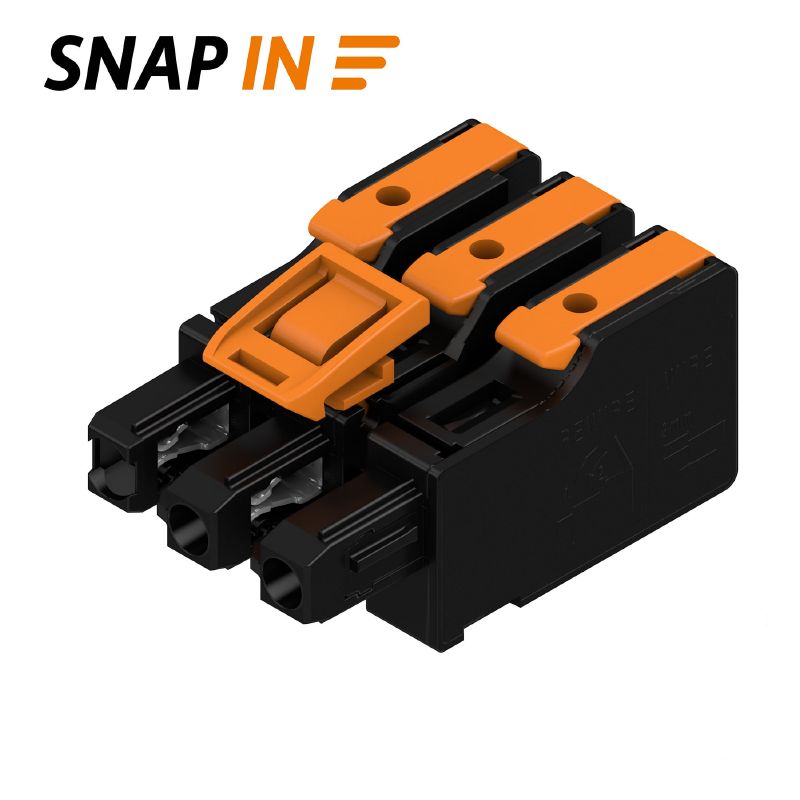

•Designed for field connections with a SNAP IN lever wire connection method.
•Safe from finger touch with an IP 20 protection degree.
•Achieves a Comparative Tracking Index (CTI) of ≥ 600.
•Remarkable resistance to flammability rated as V-0.
Specifications:
| Pitch in mm (P) | 7.5 mm |
| Number of poles | 3 |
| Depth | 34.95 mm |
| Height | 17.5 mm |
| Width | 20.8 mm |
| Ambient temperature | -50 °C…125 °C |
| Insulating material | PBT GF |

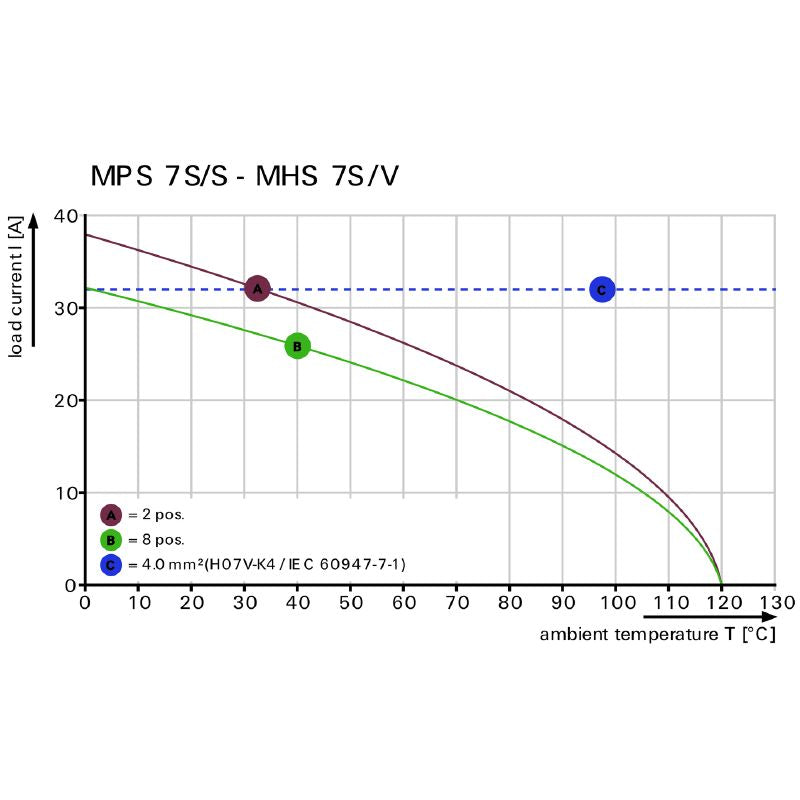

| Rated current, min. number of poles (Tu=20°C) | 34.6 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 55 °C |
