Description:

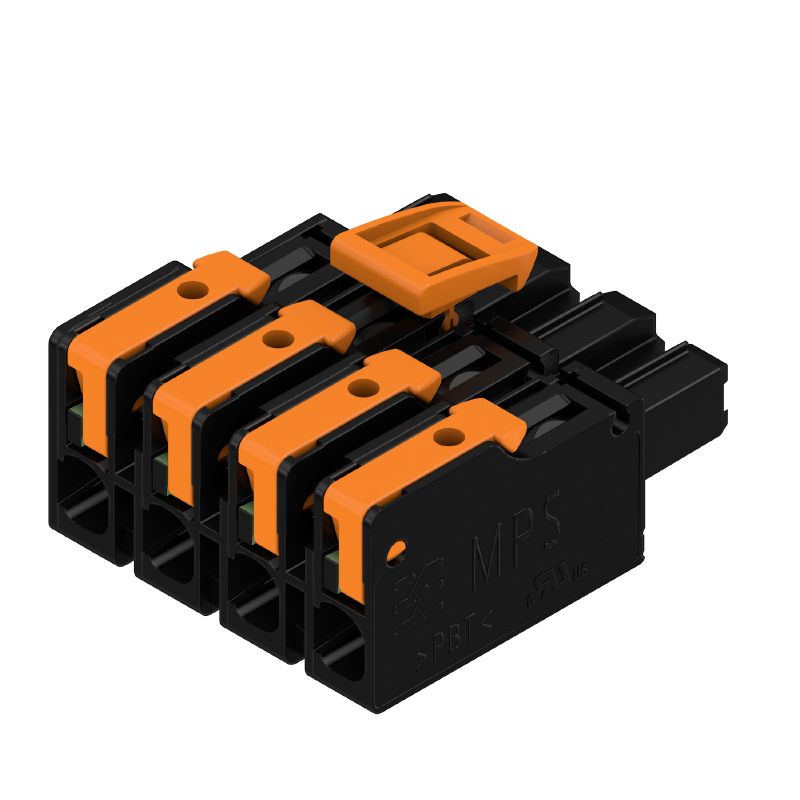

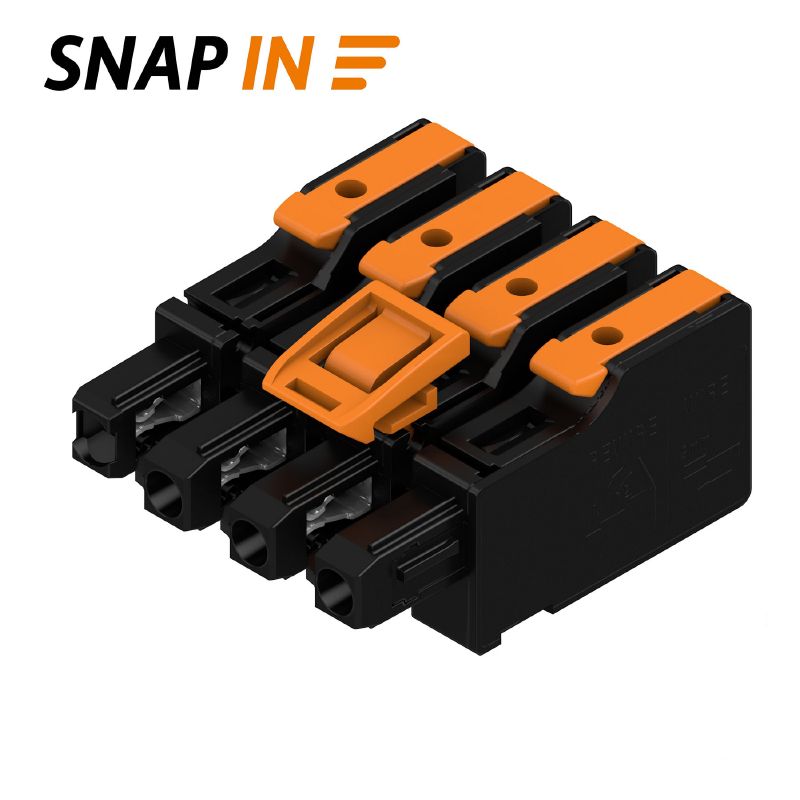

Introducing the MPS 7S/04 S F2 TN B B, a robust PCB plug-in connector specifically designed for female plugs This connector features a pitch measurement of 750 mm and includes 4 poles for versatile connectivity Adhering to RoHS standards, it is manufactured in accordance with international quality norms, guaranteeing dependable performance across various applications The connector simplifies field connection with its SNAP IN lever wire connection system, making installation a breeze.
It supports a maximum voltage rating of 1000 V and current rating of 346 A per IEC standards, as well as 600 V and 185 A per UL standards, ensuring reliability in demanding environments.
Features and Benefits:
•Compliant with RoHS regulations.
•Field connection feature for ease of use.
•SNAP IN wire connection method.
•Touch-safe protection according to DIN standards.
•Designed for a wide ambient temperature range.
•Suitable for PCB connections in various electrical systems.
Specifications:
| Pitch in mm (P) | 7.5 mm |
| Number of poles | 4 |
| IEC Rated Voltage | 1000 V |
| IEC Rated Current | 34.6 A |
| UL Rated Voltage | 600 V |
| UL Rated Current | 18.5 A |
| Ambient Temperature | -50 °C…125 °C |
| Material | PBT GF |
| Color | black |
| Protection degree | IP20 |
| Stripping length | 9 mm |
