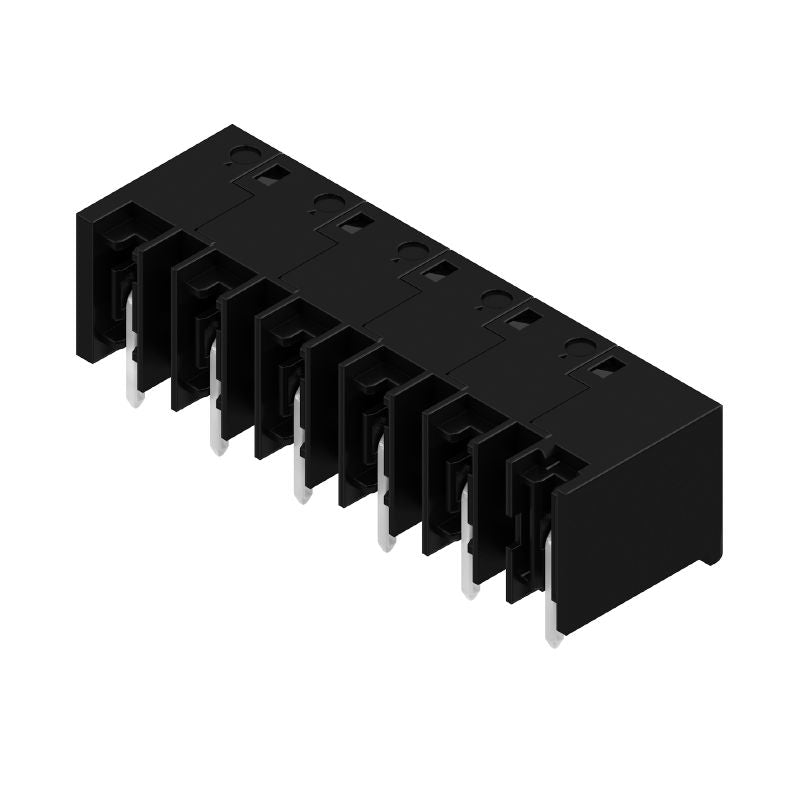

8000078325 - 7.50mm PCB Header Connector for 6 Poles, 270° Angle (Pack of 12)

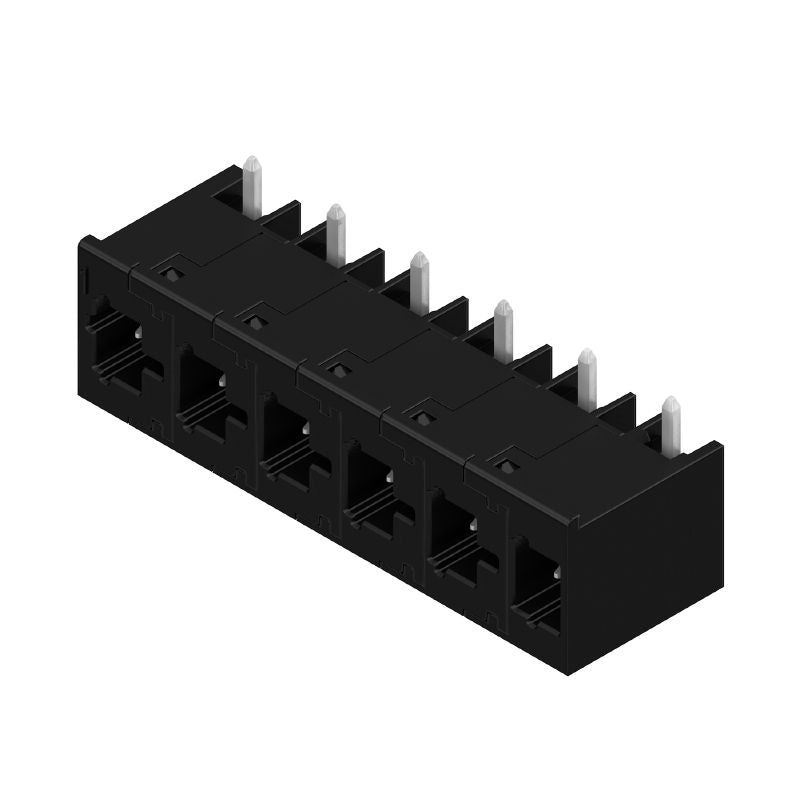

8000078325 - 7.50mm PCB Header Connector for 6 Poles, 270° Angle (Pack of 12)
SKU: SKU: 8000078325 Download PDF
- 8000078325 - 7.50mm PCB Header Connector for 6 Poles, 270° Angle (Pack of 12)
- 8000078325 - 7.50mm PCB Header Connector for 6 Poles, 270° Angle (Pack of 12)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust male header PCB plug-in connector, specifically engineered for THT/THR solder connections With a pitch measurement of 750 mm, this connector accommodates 6 poles oriented at a 270° angle Packaged conveniently in a tube, it complies with both ROHS and UL standards, ensuring safety and reliability The connector boasts impressive specifications, operating at a voltage rating of 1,000 V and a maximum current capacity of 30.
4 A, making it suitable for a wide range of applications Constructed for durability and adherence to industry regulations, this product is available in packs of 12 units, providing great value for your projects.
Features and Benefits:
•RoHS compliant.
•UL listed with certificate number E60693.
•System specifications tailored for reliable board connection.
•Minimum plugging cycles of 25.
•Moisture level: 1.
Specifications:

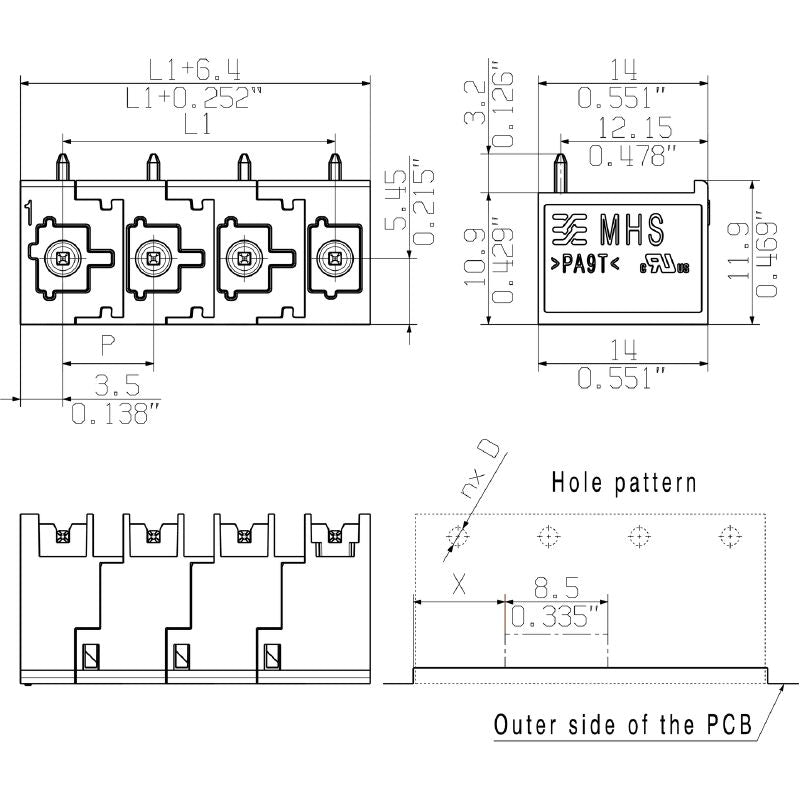

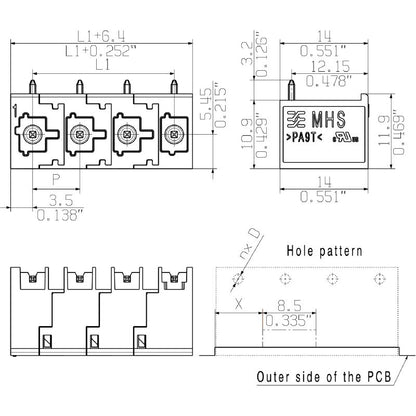

| Depth | 14 mm |
| Height | 14.1 mm |
| Width | 43.9 mm |
| Ambient temperature | -50 °C…125 °C |
| Insulating material | PA 9T |
| Protection degree | IP20 |
| Rated voltage | {'Use group B / UL 1059': '300 V', 'Use group C / UL 1059': '300 V', 'Use group D / UL 1059': '600 V', 'Use group F / UL 1059': '760 V'} |
| Rated current | {'Use group B / UL 1059': '18.5 A', 'Use group C / UL 1059': '18.5 A', 'Use group D / UL 1059': '5 A', 'Use group F / UL 1059': '18.5 A'} |
| Number of poles | 6 |
| Number of solder pins per pole | 1 |
| Solder pin length | 3.2 mm |
| Solder pin dimensions | 1.0 x 1.0 mm |
| Rated current, min. number of poles (Tu=20°C) | 30.4 A |
| Rated current, max. number of poles (Tu=20°C) | 26.9 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Rated impulse voltage for surge voltage class/pollution degree II/2 | 4 kV |
| UL 94 flammability rating | V-0 |
