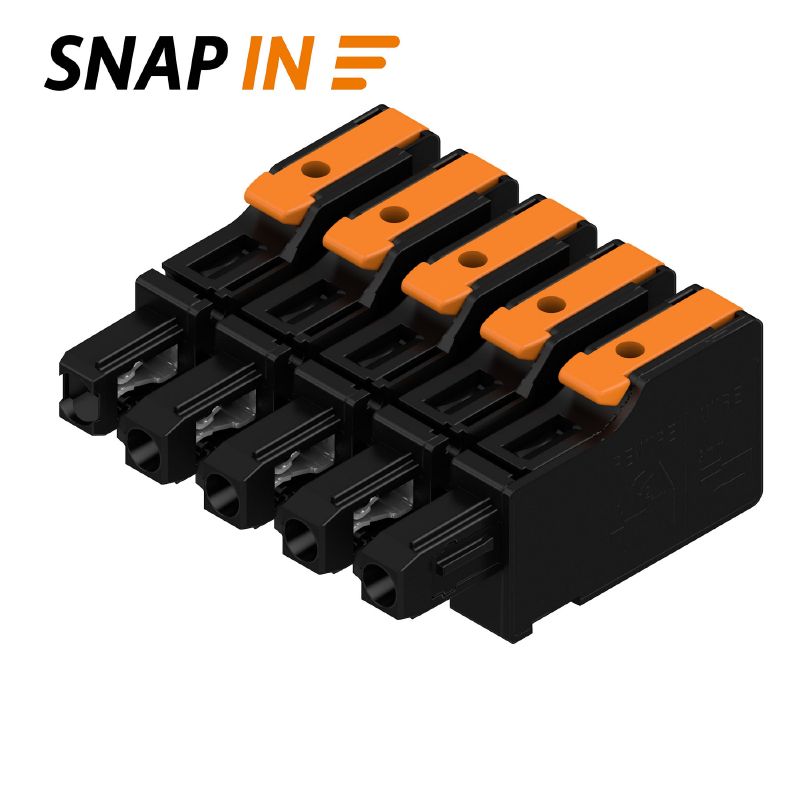

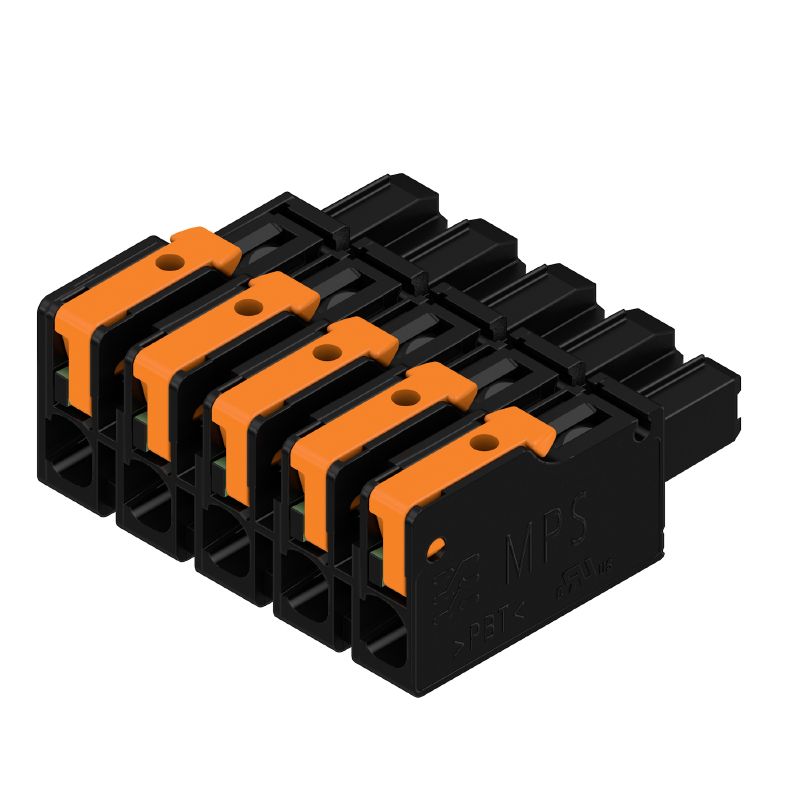

8000078331 - 7.50mm PCB Female Connector, 5 Poles, PBT GF Material (Pack of 48)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the MPS 7S/05 S TN B B connector, a versatile female plug engineered for PCB plug-in applications With a pitch of 750 mm and accommodating 5 poles, this connector meets diverse standards for dependable performance It is rated for an IEC voltage of 1000 V and a current capacity of 346 A, supporting wire connections from 05 to 4 mm² Under UL standards, it operates at 600 V with a maximum current of 18.

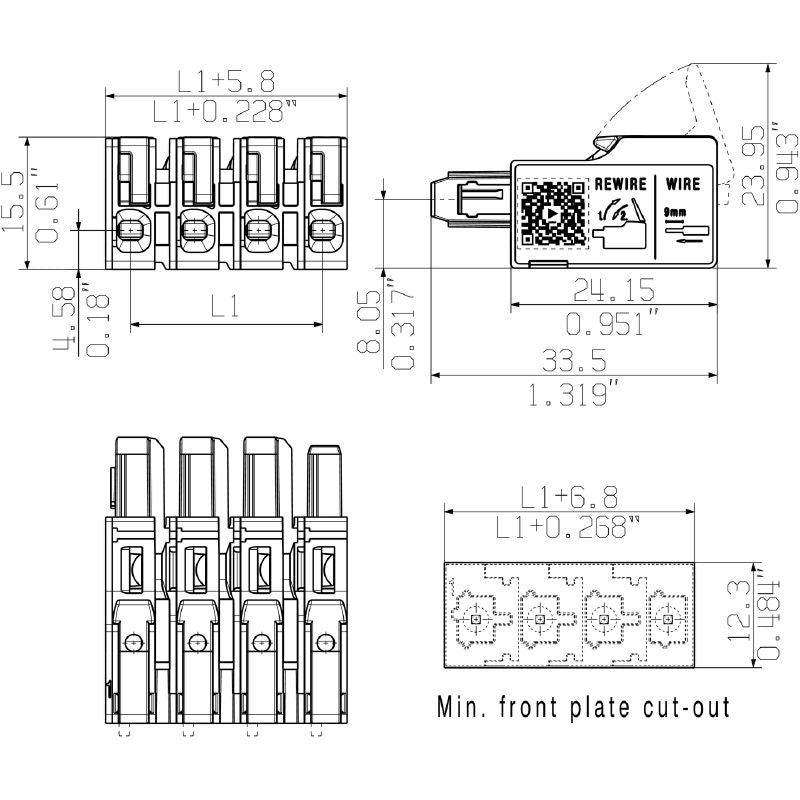

5 A, compatible with AWG sizes ranging from 20 to 12 The compact design measures 3495 mm in depth, 155 mm in height, and 358 mm in width This connector is designed to withstand temperatures between -50 °C and 125 °C and is crafted from high-quality PBT GF material, ensuring reliability and safety for your electrical needs.

Features and Benefits:

•Compliant with RoHS without any exemptions.

•Specially designed for safe field connections.

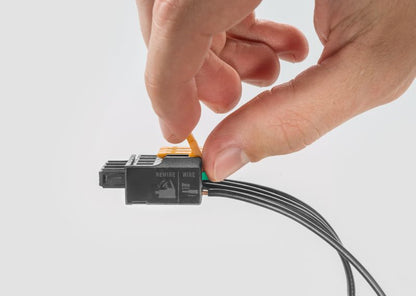

•SNAP IN wire connection method with lever.

•Touch-safe protection according to DIN VDE standards.

•Easy wire stripping length with tolerances.

Specifications:
