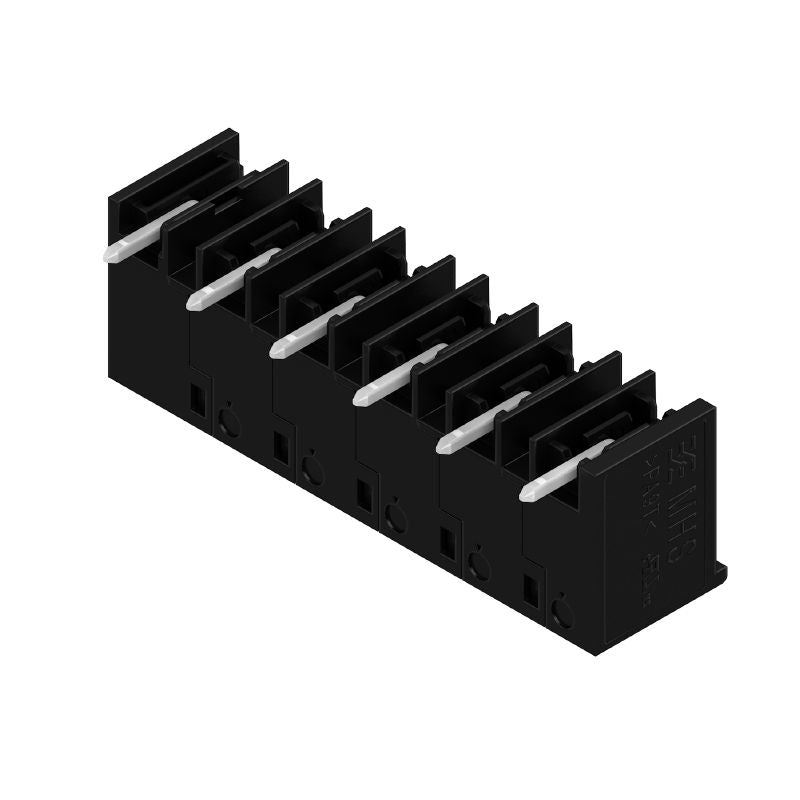

8000078311 - 7.50 mm PCB Connector, 6 Poles, 90° Elbow (Pack of 12)
8000078311 - 7.50 mm PCB Connector, 6 Poles, 90° Elbow (Pack of 12)
SKU: SKU: 8000078311 Download PDF
- 8000078311 - 7.50 mm PCB Connector, 6 Poles, 90° Elbow (Pack of 12)
- 8000078311 - 7.50 mm PCB Connector, 6 Poles, 90° Elbow (Pack of 12)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust male header PCB plug-in connector, featuring both THT and THR soldering options With a pitch of 750 mm and equipped with 6 poles, this connector is engineered with a 90° elbow for optimal orientation It arrives neatly packaged in a tube, ensuring ease of storage and handling This connector meets a range of industry standards, supporting up to 1000 V and 304 A according to IEC specifications, and 300 V and 18.
5 A per UL standards Perfect for various applications requiring reliable electrical connections.
Features and Benefits:
•Easy to mount onto PCB.
•ROHS compliant without exemption.
•Support for multiple temperature ranges from -50 to 125 °C.

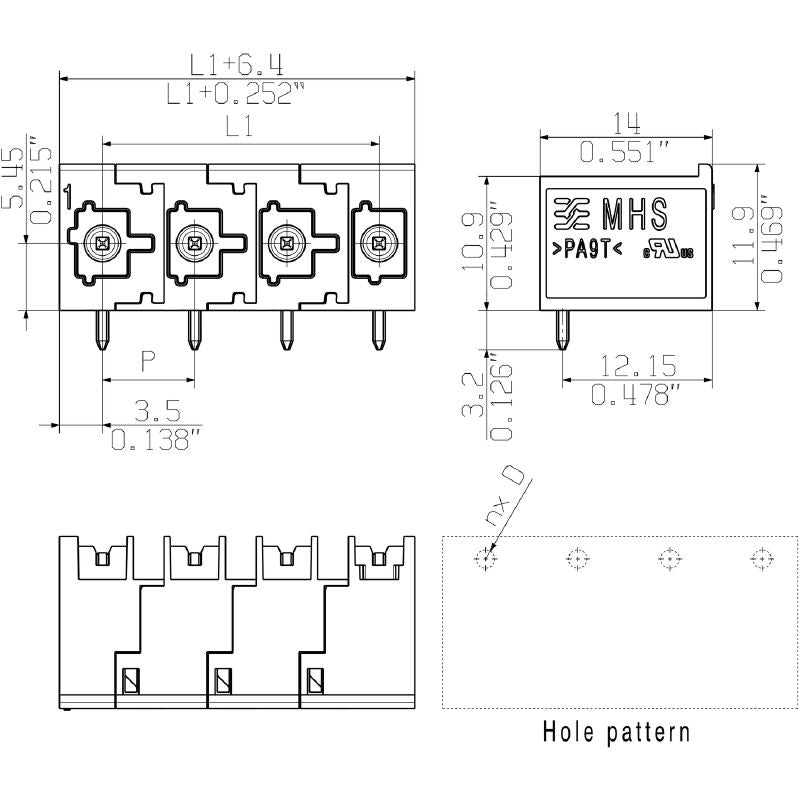

Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 43.9 mm |
| Ambient temperature | -50 °C…125 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 125 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 55 °C |
| Insulating material | PA 9T |
| Colour | black |
| Pitch | 7.5 mm |
| Protection degree | IP20 |
| Plugging cycles | ≥ 25 |
| Rated current, min. number of poles (Tu=20°C) | 30.4 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Rated data acc. to IEC | tested acc. to standard IEC 60664-1, IEC 61984 |
